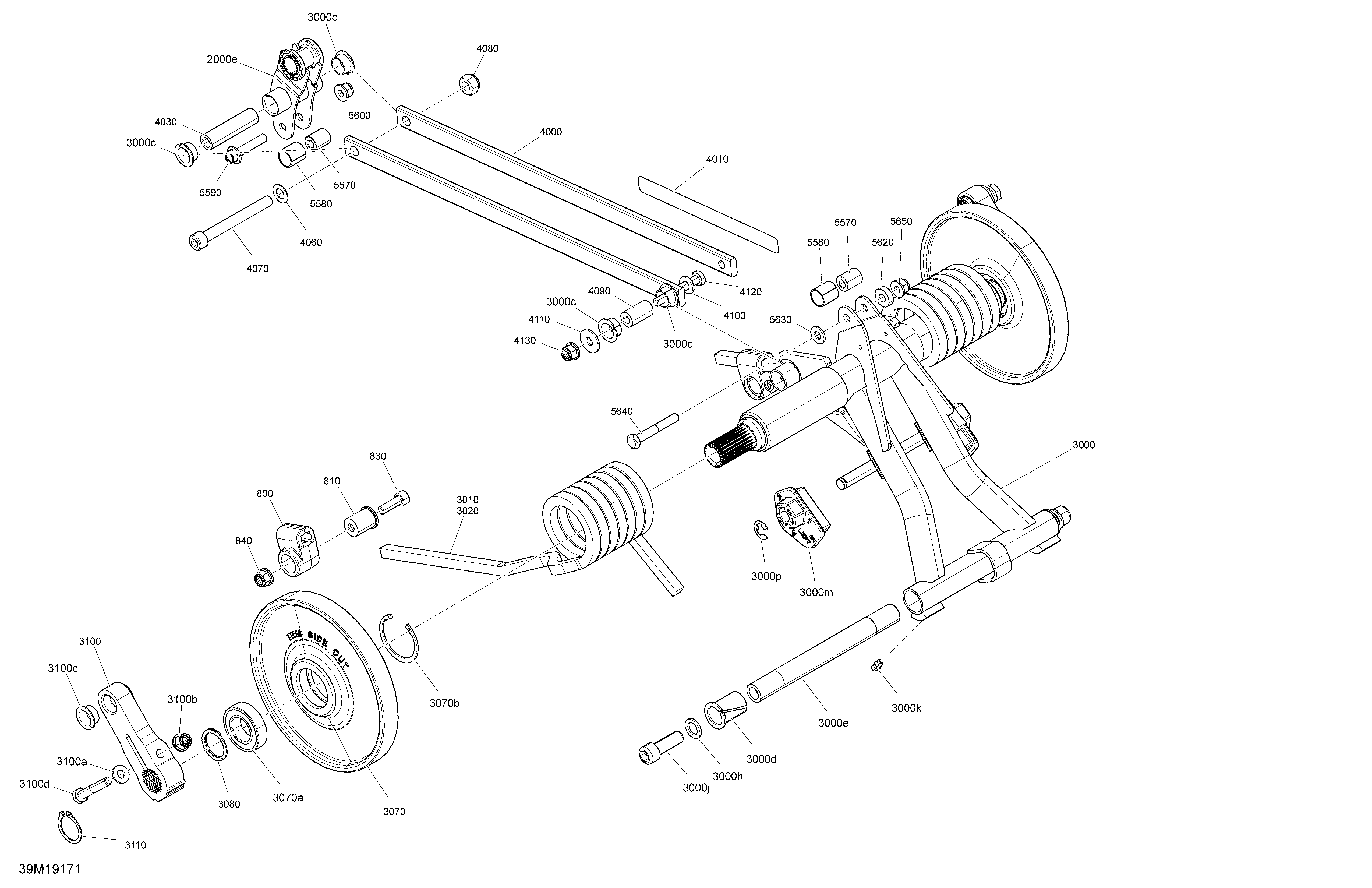

08- Rear Suspension - 600 Racing Upper Parts для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
2000e503195327 Welded Rocker ArmWelded Rocker Arm
-
3000503194552 Rear Arm Ass'y. Includes 3000 to 3000pRear Arm Ass'y. Includes 3000 to 3000p
-
3000c503191555 Swivel BushingSwivel Bushing
-
3000d503191640 CushionCushion
-
3000e503193867 Lower ShaftLower Shaft
-
3000h503192491 WasherWasher
-
3000j205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000k408200700 Grease FittingGrease Fitting
-
3000m503191565 LH Cam AdjusterLH Cam Adjuster
-
3000m503191566 RH Cam AdjusterRH Cam Adjuster
-
3000p293370013 E-CirclipE-Circlip
-
3010503195371 LH SpringLH Spring
-
3020503195372 RH SpringRH Spring
-
3070503194819 Black, Wheel Ass'y 180mm. Includes 3070 to 3070bBlack, Wheel Ass'y 180mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3080503189146 Axle SpringAxle Spring
-
3100503194804 Link Ass'y. Includes 3100 to 3100dLink Ass'y. Includes 3100 to 3100d
-
3100a503192494 WasherWasher
-
3100b233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100c503191555 Swivel BushingSwivel Bushing
-
3100d207085056 Hex. Screw M8Hex. Screw M8
-
3110293370080 Retaining RingRetaining Ring
-
4000503195323 Tie RodTie Rod
-
4010516005609 Shock Position DecalShock Position Decal
-
4030503191192 Bar AxleBar Axle
-
4060250200084 Flat WasherFlat Washer
-
4070205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
4080233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
4090503192555 Axle BarAxle Bar
-
4100503192494 WasherWasher
-
4110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4120207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5620503190526 SpacerSpacer
-
5630503192494 WasherWasher
-
5640207085556 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
5650233281466 Elastic Flang Nut M8Elastic Flang Nut M8
