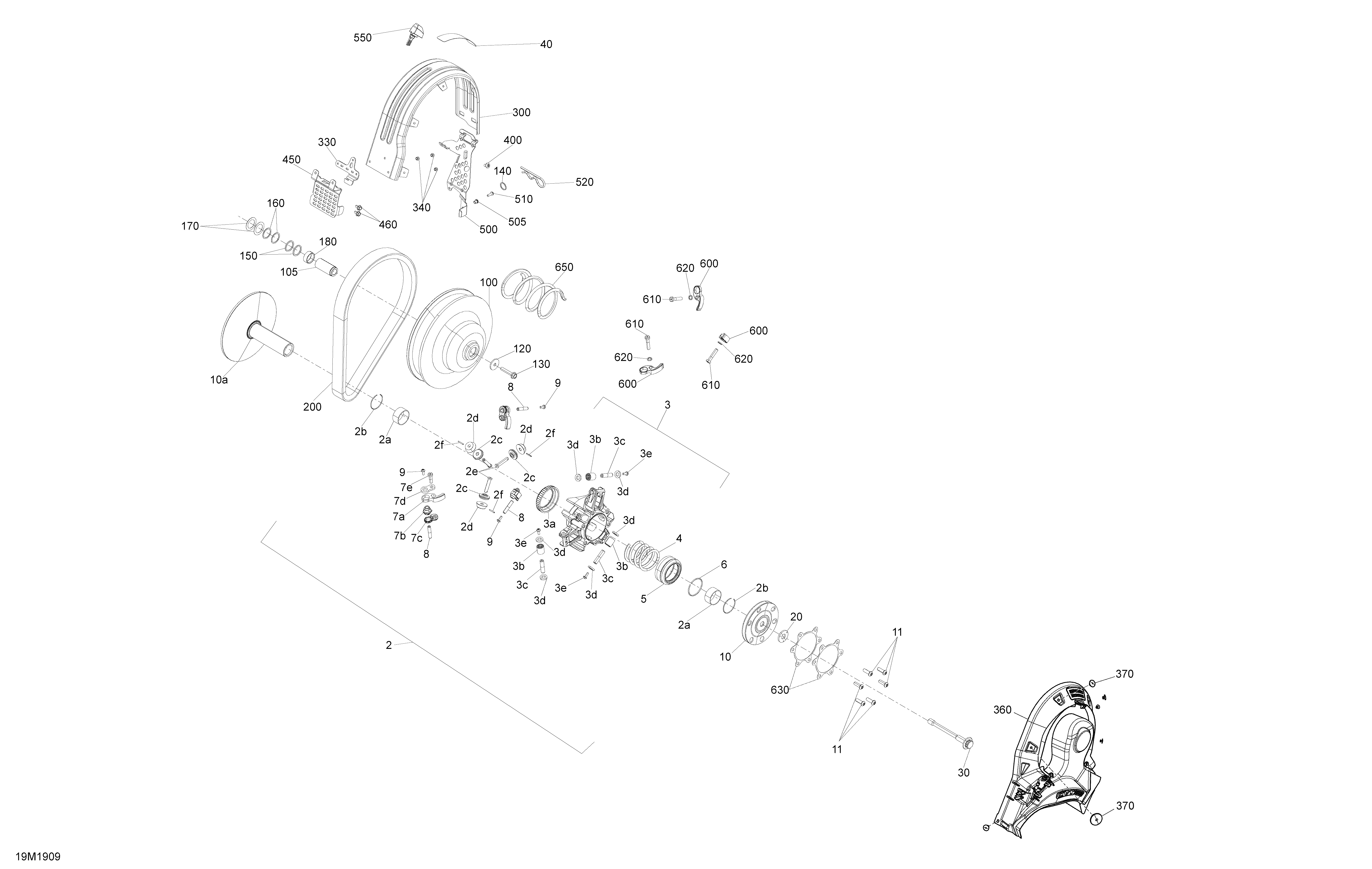

05- Pulley - 600 Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
1417224470 Fixed Sheave Drive Pulley Ass'yFixed Sheave Drive Pulley Ass'y
-
2417224474 Sliding Sheave Drive Pulley Ass'y. Includes 2 to 2fSliding Sheave Drive Pulley Ass'y. Includes 2 to 2f
-
2a293250389 BushingBushing
-
2b293370117 CirclipCirclip
-
2c417223991 Back Torque RollerBack Torque Roller
-
2d417224458 Roller Pulley ExtRoller Pulley Ext
-
2e417224277 Axle - 8mmAxle - 8mm
-
2f250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
3417224472 Spider Drive Pulley Ass'y. Includes 3 to 3eSpider Drive Pulley Ass'y. Includes 3 to 3e
-
3a417224151 Spring GuideSpring Guide
-
3b417223808 Roller AssyRoller Assy
-
3c417223989 Axle - 10mmAxle - 10mm
-
3d417224009 Washer-ThrustWasher-Thrust
-
3e250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
4417224234 Clutch SpringClutch Spring
-
5417224003 Seat SpringSeat Spring
-
6293370116 CirclipCirclip
-
7A417224274 Ramp 974Ramp 974
-
7b417224113 Cam MoldedCam Molded
-
7c417224086 Lever-RightLever-Right
-
7D417224114 Lever LeftLever Left
-
7E417224221 Pivot 33mmPivot 33mm
-
8417223631 Axle - 8mmAxle - 8mm
-
9250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10417224201 Drive CushionDrive Cushion
-
11250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
100417127703 Pulley DrivenPulley Driven
-
105417127300 BushingBushing
-
120503183100 WasherWasher
-
130207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
140504149100 SpacerSpacer
-
150417300252 SpacerSpacer
-
160417300265 SpacerSpacer
-
180417300399 SpacerSpacer
-
200417300534 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300525 Front Retaining HookFront Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360417300565 CVT Air DuctCVT Air Duct
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
400250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
450417300546 SupportSupport
-
460207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
500417300482 Belt Guard BracketBelt Guard Bracket
-
505233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
520114045200 Hair PinHair Pin
-
530417300567 SlideSlide
-
550417300506 StopperStopper
-
610417224222 Pivot 38mmPivot 38mm
-
620417224366 WeightWeight
-
630417224060 SpacerSpacer
-
650417127625 Release SpringRelease Spring
