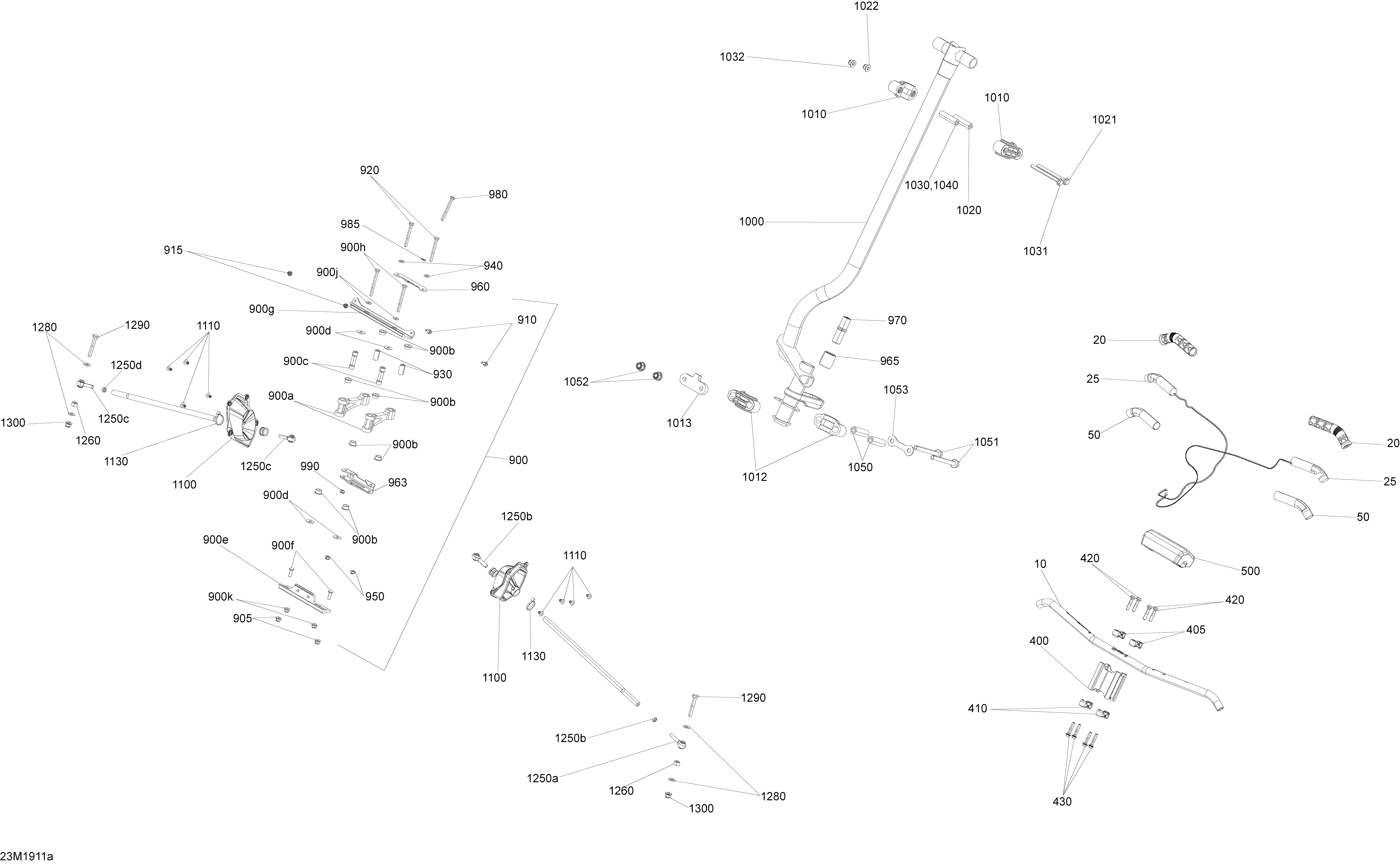

07- Steering - 600 Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10506153047 Handle BarHandle Bar
-
20506152560 Grip 148mmGrip 148mm
-
25506152856 Heated FilmHeated Film
-
50506152548 IsolantIsolant
-
400506153061 RiserRiser
-
405506152894 SupportSupport
-
410506152894 SupportSupport
-
420250000904 Button Head Torx Screw M8 X 38Button Head Torx Screw M8 X 38
-
430250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
500506152994 Steering Pad Ass'ySteering Pad Ass'y
-
900506152951 Steering Linkages Ass'y. Includes 900 to 900kSteering Linkages Ass'y. Includes 900 to 900k
-
900a506152952 Swivel Arm. Includes 900a to 900bSwivel Arm. Includes 900a to 900b
-
900b503194671 BushingBushing
-
900c506152792 Swivel PivotSwivel Pivot
-
900d503191800 WasherWasher
-
900e506152949 Driving Shaft Support. Includes 900e to 900fDriving Shaft Support. Includes 900e to 900f
-
900f250300038 Clinch StudClinch Stud
-
900g506152955 Support PlateSupport Plate
-
900h207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
900j503192494 WasherWasher
-
900k233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
905233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
910207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
915233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
920207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
930506152957 Swivel PivotSwivel Pivot
-
940503192494 WasherWasher
-
950232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
960506152958 Swivel BarSwivel Bar
-
963506152959 Swivel BarSwivel Bar
-
965506152956 Steering Lever SpacerSteering Lever Spacer
-
970506152960 PivotPivot
-
980207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
985503192494 WasherWasher
-
990232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1000506152944 Main TubeMain Tube
-
1010506152293 Half-HousingHalf-Housing
-
1012506152993 Half-housingHalf-housing
-
1013506152961 SpacerSpacer
-
1020506152297 Housing BushingHousing Bushing
-
1021207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1040506152297 Housing BushingHousing Bushing
-
1050506152937 Housing BushingHousing Bushing
-
1051207687544 Hex. Flanged Screw M8 X 75Hex. Flanged Screw M8 X 75
-
1052233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
1053506152938 Stopper PlateStopper Plate
-
1100506153109 BootBoot
-
1110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1250506153020 Rod Ass'y. Includes 1250 to 1250dRod Ass'y. Includes 1250 to 1250d
-
1250a506152344 LH Ball JointLH Ball Joint
-
1250b250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250c506152684 RH Thread Ball JointRH Thread Ball Joint
-
1250d732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1260506152713 WasherWasher
-
1280506152582 WasherWasher
-
1290207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1300233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
