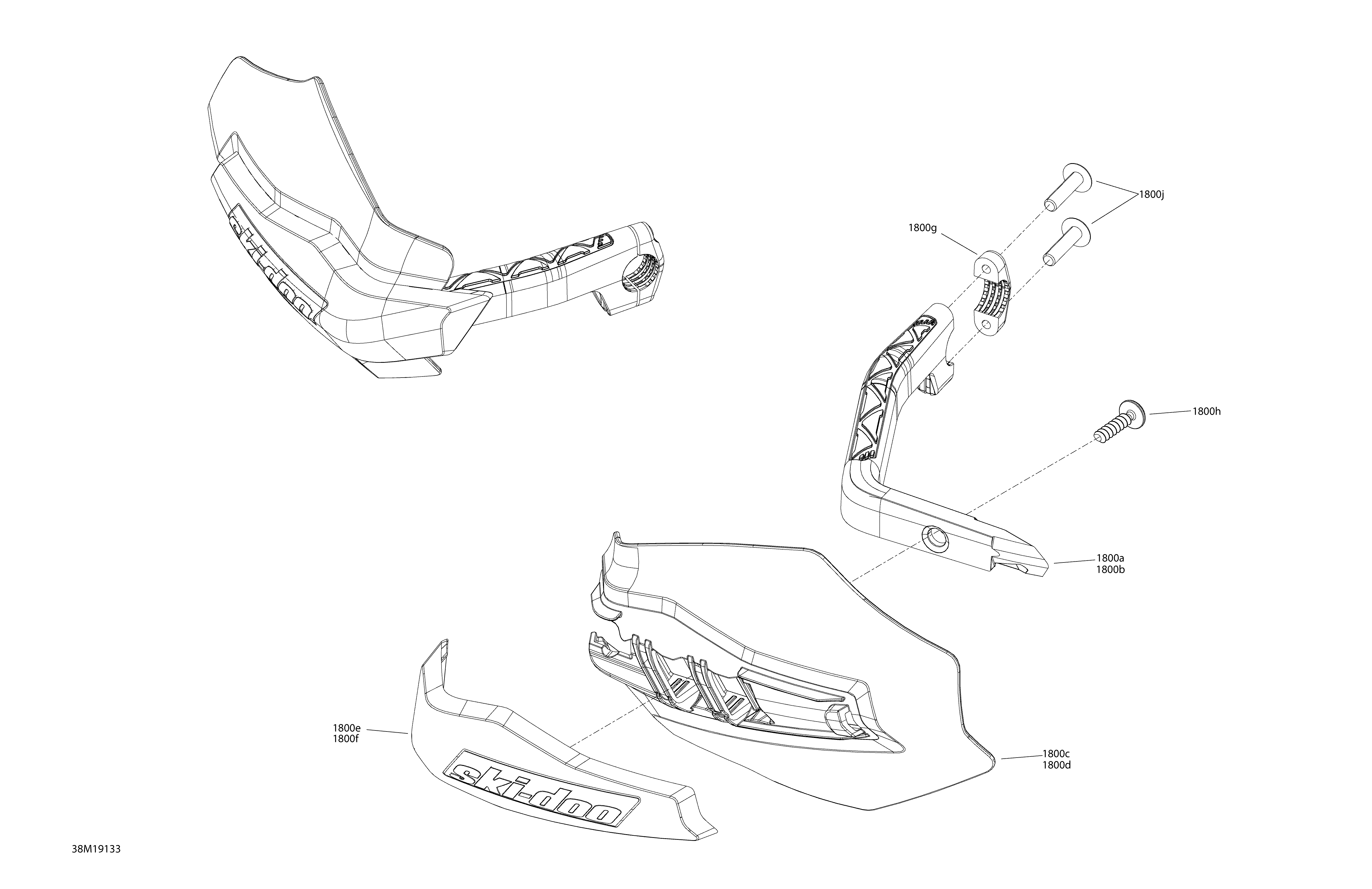

09- Hood - 600 Racing - North America - Hand protector для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
1800a517305290 Deep Black, LH ArmDeep Black, LH Arm
-
1800b517305293 Deep Black, RH ArmDeep Black, RH Arm
-
1800c517305291 LH Deflector, Smoke 60% Transm.LH Deflector, Smoke 60% Transm.
-
1800d517305294 RH Deflector, Smoke 60% Transm.RH Deflector, Smoke 60% Transm.
-
1800e517305589 Sunburst Yellow, LH Cap, SKI-DOOSunburst Yellow, LH Cap, SKI-DOO
-
1800f517305588 Sunburst Yellow, RH Cap, SKI-DOOSunburst Yellow, RH Cap, SKI-DOO
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
