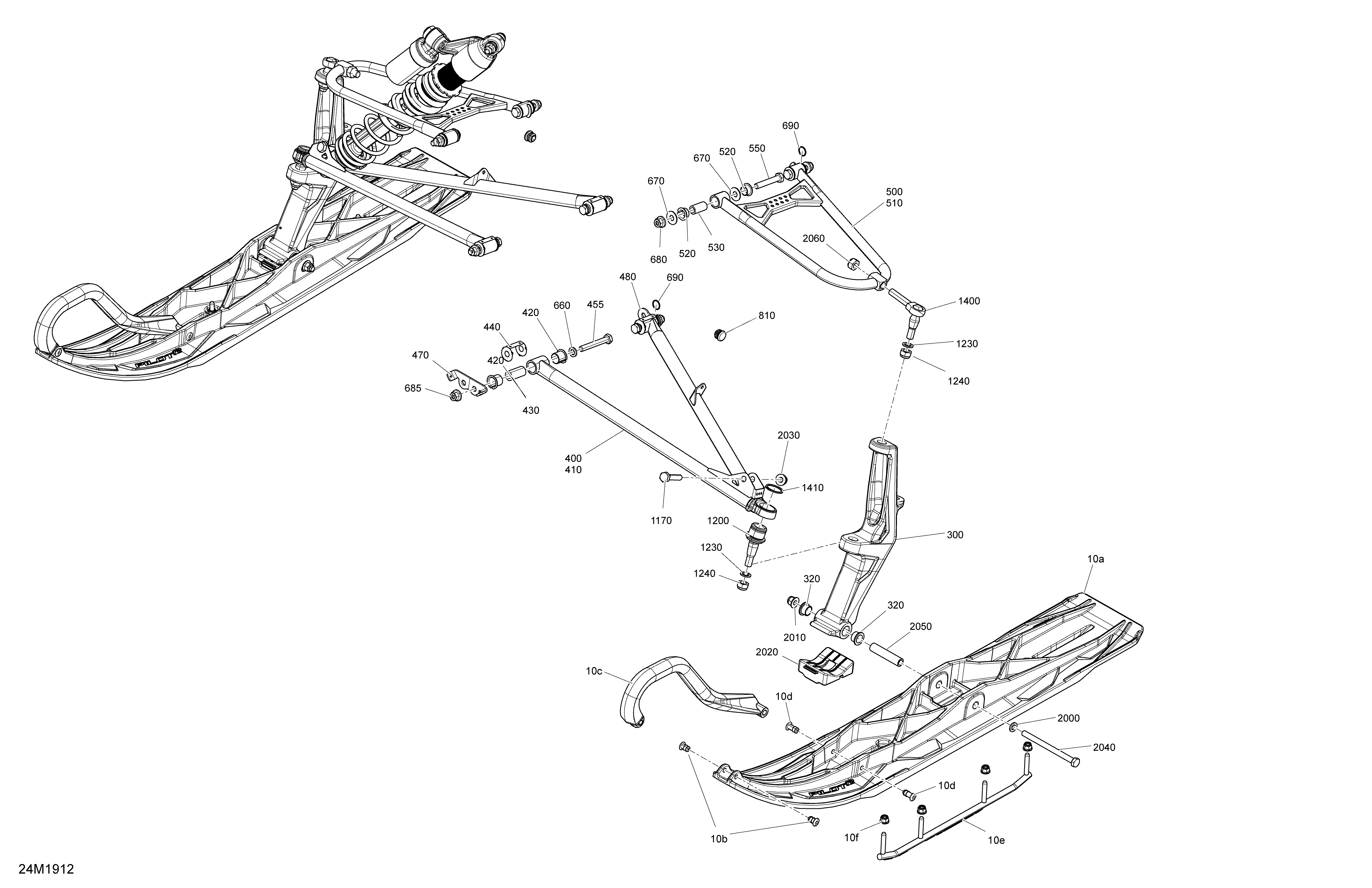

07- Front Suspension And Ski - 600 Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10a505074670 Black, Racing SkiBlack, Racing Ski
-
10b505071812 Retainer 17mm longRetainer 17mm long
-
10c505074308 HandleHandle
-
10d505072133 Retainer 23mm LongRetainer 23mm Long
-
10e860201697 Runner KitRunner Kit
-
10f233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
300505074649 Deep Black, Ski LegDeep Black, Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
400505074655 RH Lower ArmRH Lower Arm
-
410505074654 LH Lower ArmLH Lower Arm
-
420503191766 CushionCushion
-
430505072401 Aluminum BushingAluminum Bushing
-
440505072634 Wear PlateWear Plate
-
455250001024 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505074424 Rear ReinforcementRear Reinforcement
-
500505074104 LH Upper ArmLH Upper Arm
-
510505074105 RH Upper ArmRH Upper Arm
-
520505073018 BushingBushing
-
530505072143 SleeveSleeve
-
550250001023 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
810517302716 CapCap
-
1170207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
1200505074133 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1400505072257 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
-
2000503192496 WasherWasher
-
2010233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
2020505072594 Ski StopperSki Stopper
-
2030233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
2040250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
2050505073691 Ski AxleSki Axle
-
2060250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
