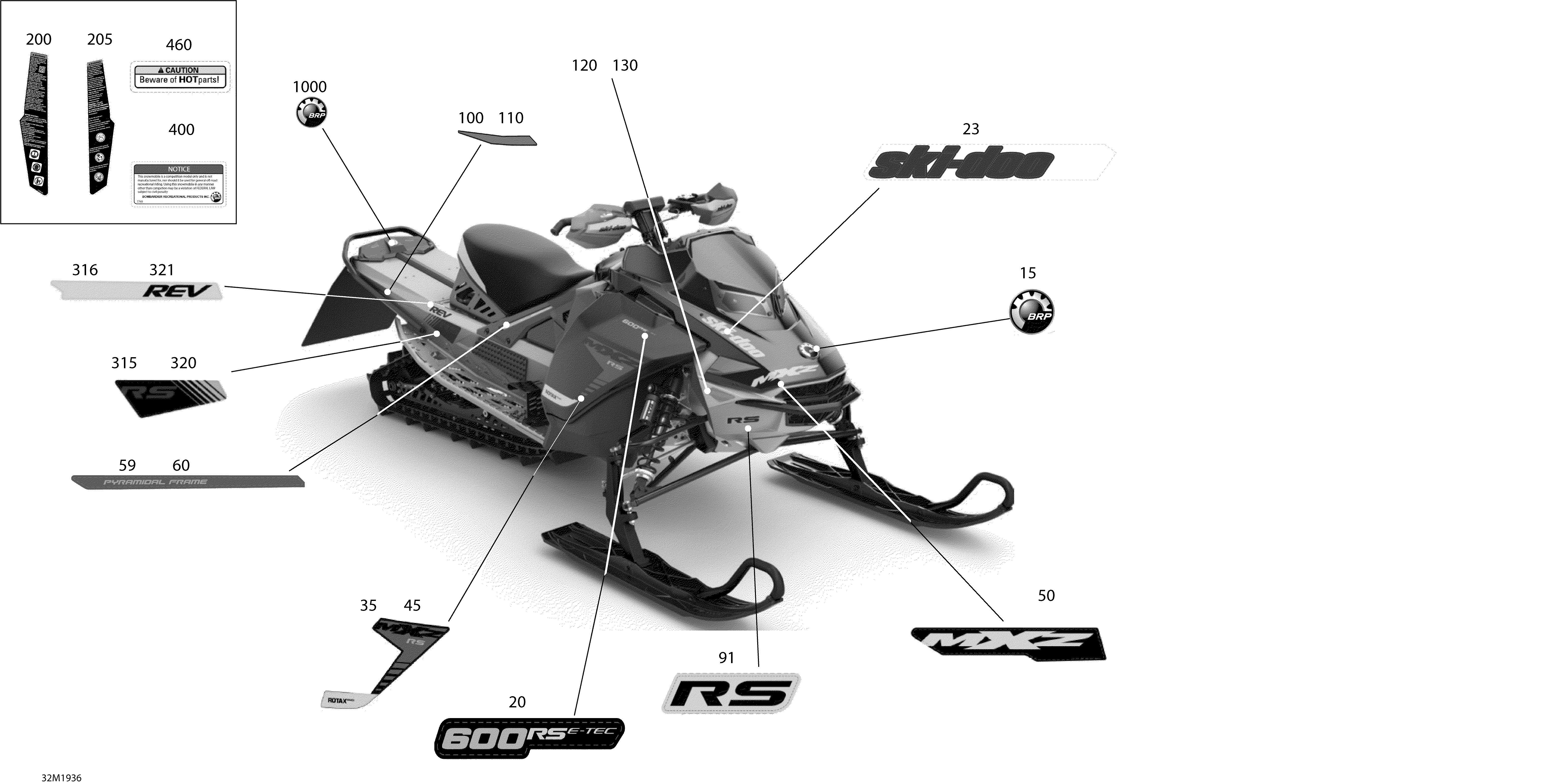

09- Decals - 600 - Racing для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
15516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
20516008431 600RS Decal600RS Decal
-
23516007699 Hood Ski-Doo Decal, Sunburst Yellow LH. EuropeHood Ski-Doo Decal, Sunburst Yellow LH. Europe
-
23516009425 Decal Ski-Doo. Canada/USADecal Ski-Doo. Canada/USA
-
35516009242 RH Panel Decal MXZ RS Rotax PowerRH Panel Decal MXZ RS Rotax Power
-
45516009241 LH Panel Decal MXZ RS Rotax PowerLH Panel Decal MXZ RS Rotax Power
-
50516008845 Front Hood Decal MXZ. EuropeFront Hood Decal MXZ. Europe
-
50516009456 Front Hood Decal MXZ. Canada/USAFront Hood Decal MXZ. Canada/USA
-
59516008568 RH Decal Pyramidal FrameRH Decal Pyramidal Frame
-
60516008567 LH Decal Pyramidal FrameLH Decal Pyramidal Frame
-
91516009243 Bottom Pan Decal RSBottom Pan Decal RS
-
100520001901 Red, LH Rear ReflectorRed, LH Rear Reflector
-
110520001902 Red, RH Rear ReflectorRed, RH Rear Reflector
-
120520001493 RH Front ReflectorRH Front Reflector
-
130520001494 LH Front ReflectorLH Front Reflector
-
200516009232 LH Warning Decal SecurityLH Warning Decal Security
-
205516009274 Warning Decal, SecurityWarning Decal, Security
-
315516009240 RH Rear Tunnel Decal RSRH Rear Tunnel Decal RS
-
316516009356 RH Rear Tunnel Decal REVRH Rear Tunnel Decal REV
-
320516009239 LH Rear Tunnel Decal RSLH Rear Tunnel Decal RS
-
321516009355 LH Rear Tunnel Decal REVLH Rear Tunnel Decal REV
-
400516007769 Exempt. DecalExempt. Decal
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
1000516006224 BRP Logo, 20 mmBRP Logo, 20 mm
