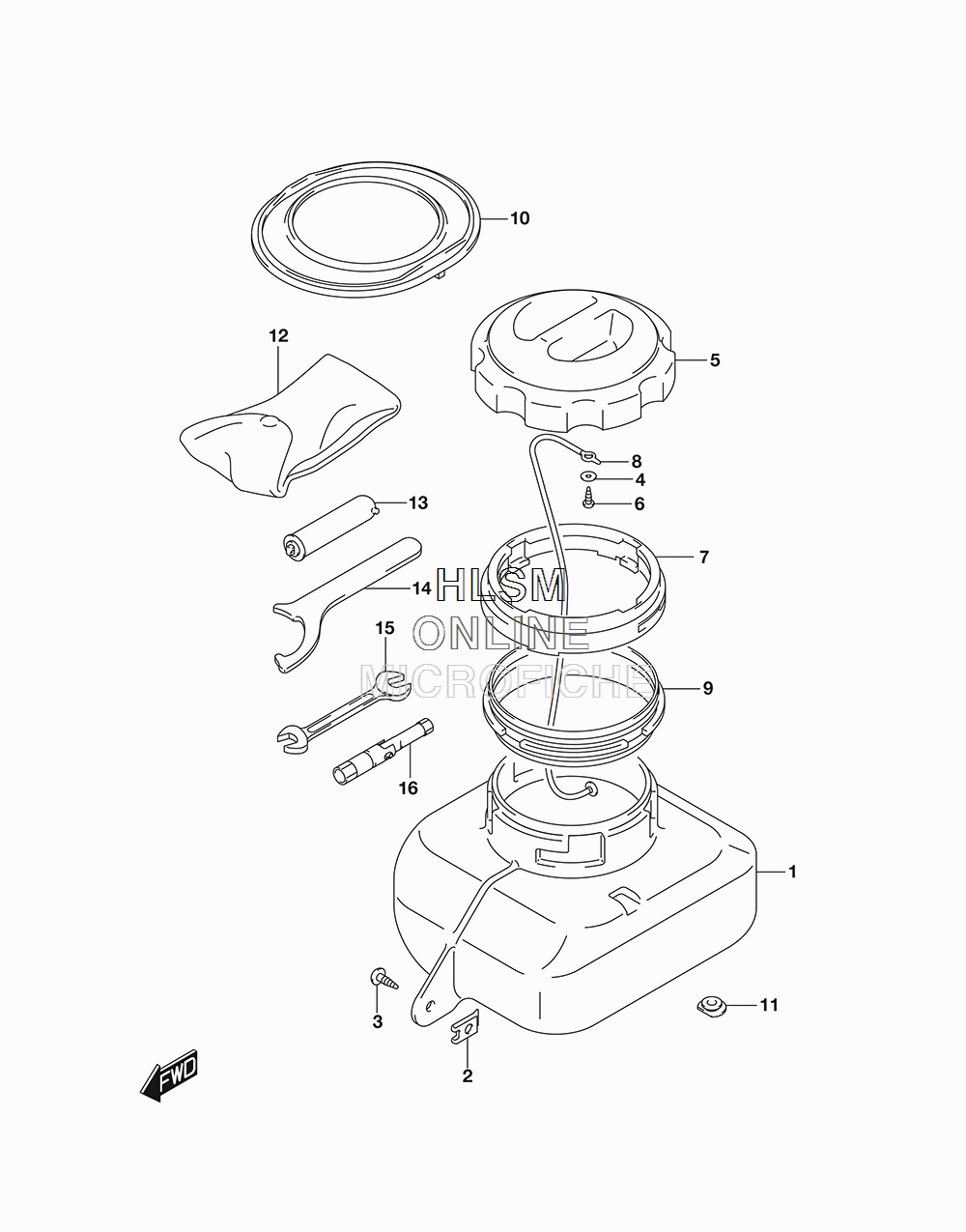

BOX - FRONT для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
192111-31G10 BODY, FRONT BOXBODY, FRONT BOX
-
209148-05038 NUTNUT
-
303541-0516A SCREWSCREW
-
409160-05013 WASHER (5.2X16X1)WASHER (5.2X16X1)
-
592112-31G00 LID, FRONT BOXLID, FRONT BOX
-
603511-0512B SCREWSCREW
-
792113-03G00 HOLDERHOLDER
-
892114-03G20 STOPPER, FRONT BOXSTOPPER, FRONT BOX
-
992141-31G00 CUSHION, FRONT BOXCUSHION, FRONT BOX
-
1092142-31G00 CUSHION, NO.1CUSHION, NO.1
-
1109250-10011 CAP (OD:18)CAP (OD:18)
-
1209800-21057 TOOL ASSYTOOL ASSY
-
1396200-18A02 GAUGE, AIRGAUGE, AIR
-
1409822-00003 CLAMP, WRENCHCLAMP, WRENCH
-
1509813-00031 SPANNER, OPEN (14X17)SPANNER, OPEN (14X17)
