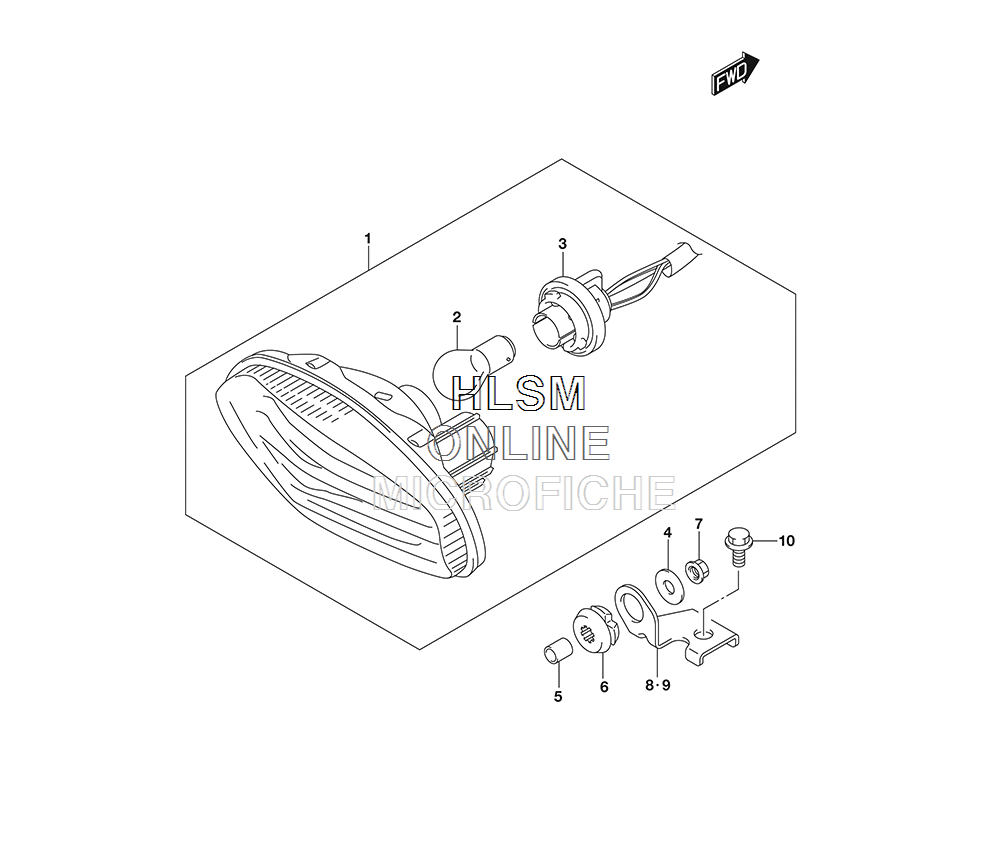

TAILLIGHT ASSY. (EXCEPT CALIF.) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
209471-12128 ...BULB (12V21/5W, BF141-49642A)...BULB (12V21/5W, BF141-49642A)
-
335718-03G30 ...SOCKET & CORD...SOCKET & CORD
-
409160-06027 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835726-31G40 BRACKET, REAR COMBINATION (RH)BRACKET, REAR COMBINATION (RH)
-
935726-31G50 BRACKET, REAR COMBINATION (LH)BRACKET, REAR COMBINATION (LH)
