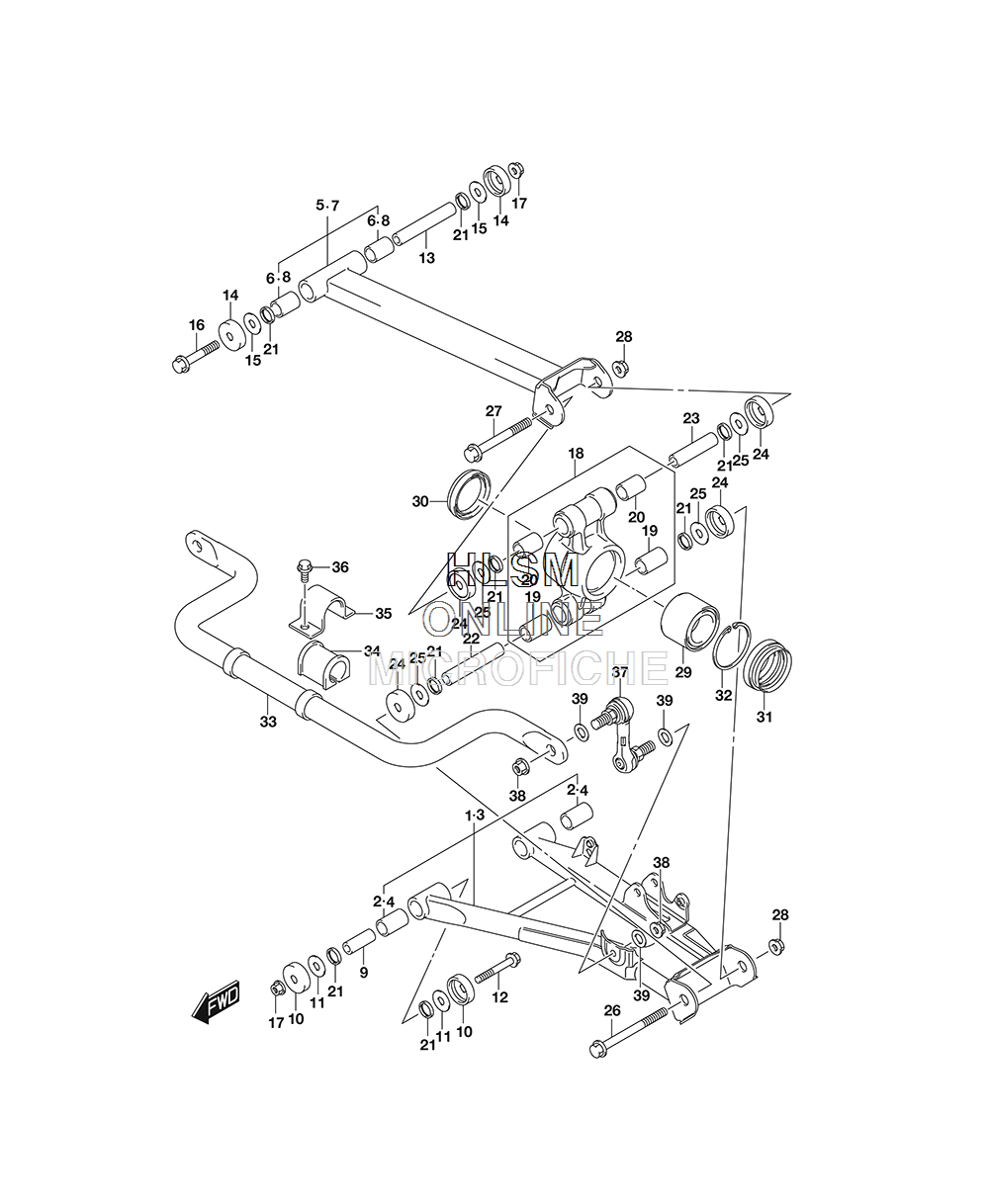

SUSPENSION - REAR ARM для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
161510-31830 ARM SET, RR SUSPENSION LOWER (RH)ARM SET, RR SUSPENSION LOWER (RH)
-
251236-31G00 ...BUSH, RR SUSPENSION ARM LOWER...BUSH, RR SUSPENSION ARM LOWER
-
361520-31830 ARM SET, RR SUSPENSION LOWER (LH)ARM SET, RR SUSPENSION LOWER (LH)
-
451236-31G00 ...BUSH, RR SUSPENSION ARM LOWER...BUSH, RR SUSPENSION ARM LOWER
-
561530-31830 ARM SET, RR SUSPENSION UPPER (RH)ARM SET, RR SUSPENSION UPPER (RH)
-
651236-31G00 ...BUSH, RR SUSPENSION ARM UPPER...BUSH, RR SUSPENSION ARM UPPER
-
761540-31830 ARM SET, RR SUSPENSION UPPER (LH)ARM SET, RR SUSPENSION UPPER (LH)
-
851236-31G00 ...BUSH, RR SUSPENSION ARM UPPER...BUSH, RR SUSPENSION ARM UPPER
-
961552-31G10 SPACER, RR SUSPENSION ARM LOWERSPACER, RR SUSPENSION ARM LOWER
-
1051255-31G10 SEAL, RR SUSPENSION ARM LOWER DUSTSEAL, RR SUSPENSION ARM LOWER DUST
-
1108211-10281 WASHERWASHER
-
1209103-10392 BOLT (10X70)BOLT (10X70)
-
1361554-31G10 SPACER, RR SUSPENSION ARM UPPERSPACER, RR SUSPENSION ARM UPPER
-
1451255-31G00 SEAL, RR SUSPENSION ARM UPPER DUSTSEAL, RR SUSPENSION ARM UPPER DUST
-
1508211-10281 WASHERWASHER
-
1609103-10388 BOLT (10X120)BOLT (10X120)
-
1709159-10115 NUTNUT
-
1861600-31830 KNUCKLE SET, RR SUSPENSIONKNUCKLE SET, RR SUSPENSION
-
1951236-31G00 ...BUSH, RR KNUCKLE LOWER...BUSH, RR KNUCKLE LOWER
-
2061551-31G10 ...BUSH, RR KNUCKLE UPPER...BUSH, RR KNUCKLE UPPER
-
2152454-45G00 SEAL, RR KNUCKLE INNER DUSTSEAL, RR KNUCKLE INNER DUST
-
2261554-31G10 SPACER, RR KNUCKLE LOWERSPACER, RR KNUCKLE LOWER
-
2361553-31G20 SPACER, RR KNUCKLE UPPERSPACER, RR KNUCKLE UPPER
-
2451255-18900 SEAL, RR KNUCKLE DUSTSEAL, RR KNUCKLE DUST
-
2508211-10281 WASHERWASHER
-
2609103-10388 BOLT (10X120)BOLT (10X120)
-
2709103-10387 BOLT (10X96)BOLT (10X96)
-
2809159-10115 NUTNUT
-
2943440-58J00 BEARING, RR HUBBEARING, RR HUB
-
3061615-31G00 SEAL, REAR HUB INNER DUSTSEAL, REAR HUB INNER DUST
-
3161616-31G00 SEAL, REAR HUB OUTER DUSTSEAL, REAR HUB OUTER DUST
-
3208331-4162A CIRCLIPCIRCLIP
-
3361651-31G30 BAR, RR STABILIZERBAR, RR STABILIZER
-
3461652-31G20 BUSH, RR STABILIZERBUSH, RR STABILIZER
-
3542415-66D00 PLATE, RR STABILIZERPLATE, RR STABILIZER
-
3609103-08283 BOLT (8X16)BOLT (8X16)
-
3761660-31G20 JOINT, RR STABILIZERJOINT, RR STABILIZER
-
3809159-10223 NUTNUT
-
3909160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
