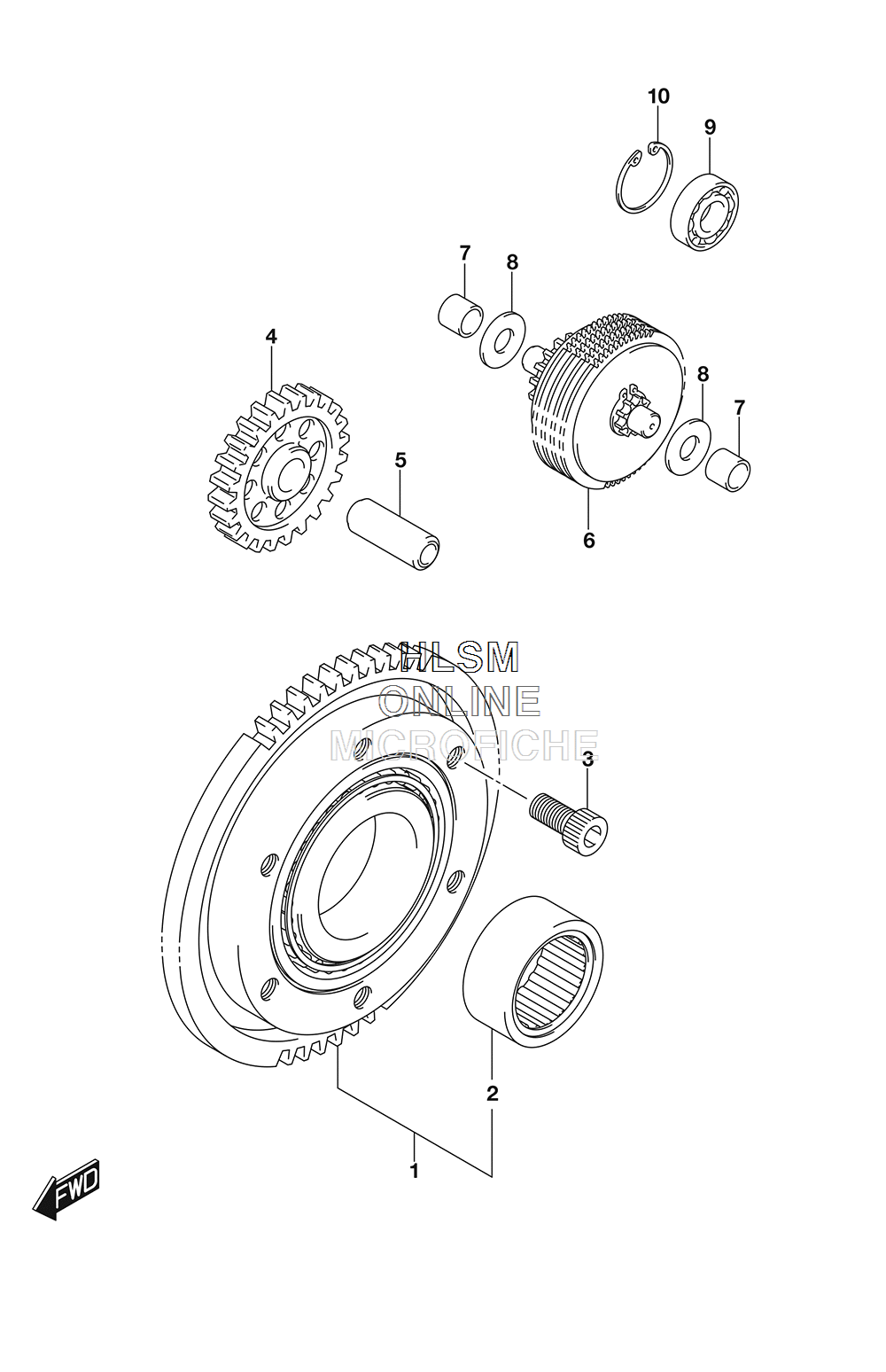

STARTER CLUTCH для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
112600-31810 CLUTCH SET, STARTER (NT:73)CLUTCH SET, STARTER (NT:73)
-
209263-35042 ...BEARING (35X45X20)...BEARING (35X45X20)
-
309106-08106 BOLT (8X20)BOLT (8X20)
-
412612-31G00 GEAR, STARTER IDLE NO.2 (NT:27)GEAR, STARTER IDLE NO.2 (NT:27)
-
509206-12007 PIN (8X12X33)PIN (8X12X33)
-
612600-31G01 LIMITER ASSY, STARTER IDLE GEAR (NT:14/57)LIMITER ASSY, STARTER IDLE GEAR (NT:14/57)
-
712618-31G00 BUSH, LIMITER GEAR SHAFTBUSH, LIMITER GEAR SHAFT
-
808211-10221 WASHERWASHER
-
909262-12001 BEARING (12X28X8)BEARING (12X28X8)
