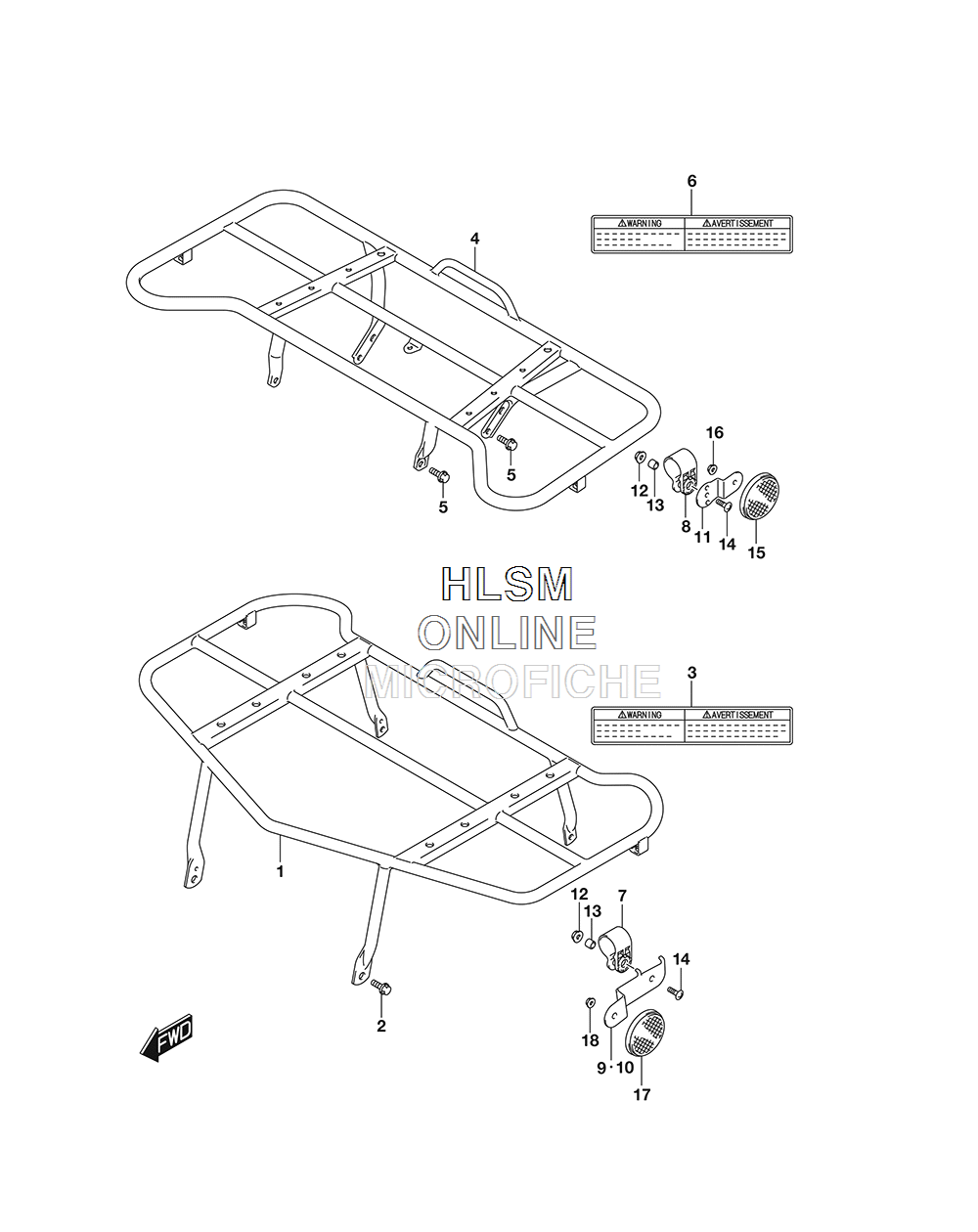

CARRIER - FRONT / REAR (CANADA) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
146410-31G20-YSN CARRIER, FRONT (YSN - BLACK)CARRIER, FRONT (YSN - BLACK)
-
209103-08283 BOLT (8X16)BOLT (8X16)
-
368385-31G00 LABEL, FRONT CARRIERLABEL, FRONT CARRIER
-
446310-31GD0-YSN CARRIER, REAR (YSN - BLACK)CARRIER, REAR (YSN - BLACK)
-
509103-08283 BOLT (8X16)BOLT (8X16)
-
668385-31G10 LABEL, REAR CARRIERLABEL, REAR CARRIER
-
735656-03G00 BRACKET, FRONT SIDE RRBRACKET, FRONT SIDE RR
-
835656-03G10 BRACKET, REAR SIDE RRBRACKET, REAR SIDE RR
-
947411-31G00 PLATE, FRONT SIDE RR BACKET (RH)PLATE, FRONT SIDE RR BACKET (RH)
-
1047412-31G00 PLATE, FRONT SIDE RR BACKET (LH)PLATE, FRONT SIDE RR BACKET (LH)
-
1147413-31G00 PLATE, REAR SIDE RR BKTPLATE, REAR SIDE RR BKT
-
1209159-05049 NUTNUT
-
1309180-05053 SPACER (5.5X9.5X6.5)SPACER (5.5X9.5X6.5)
-
1402142-0516A SCREWSCREW
-
1535970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1608316-1005B NUTNUT
-
1735950-14A11 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
1808316-1005B NUTNUT
