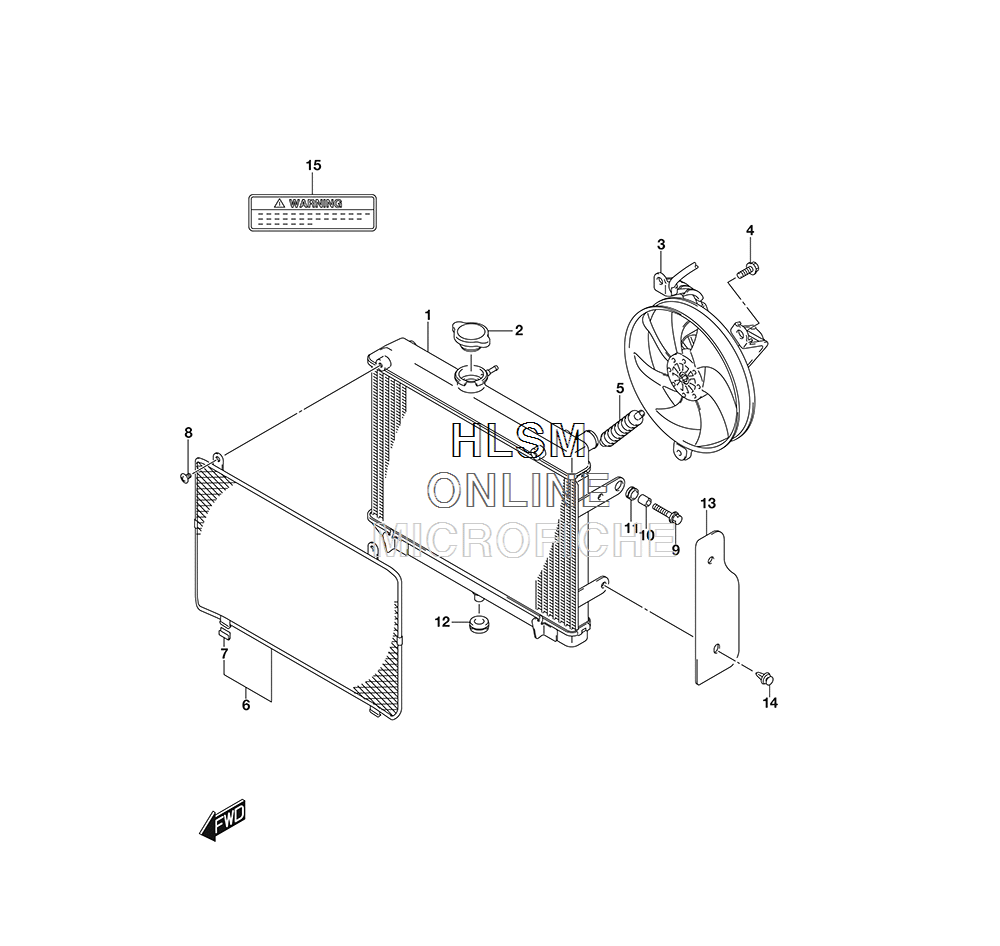

RADIATOR (CALIF.) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
117710-31G30 RADIATOR ASSYRADIATOR ASSY
-
217730-14G00 CAP ASSY, RADIATORCAP ASSY, RADIATOR
-
317800-31G20 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
401550-0610A BOLTBOLT
-
517820-07G10 BOOT, RDTR FAN MOTORBOOT, RDTR FAN MOTOR
-
617760-09F00 COVER, RADIATORCOVER, RADIATOR
-
717765-09F00 ...PROTECTOR...PROTECTOR
-
802142-0608A SCREWSCREW
-
909118-06097 BOLT (6X25)BOLT (6X25)
-
1009180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
1109320-10042 CUSHIONCUSHION
-
1209320-12036 CUSHIONCUSHION
-
1317811-31G00 GUARD, RADIATOR FANGUARD, RADIATOR FAN
-
1409409-07333 CLIPCLIP
