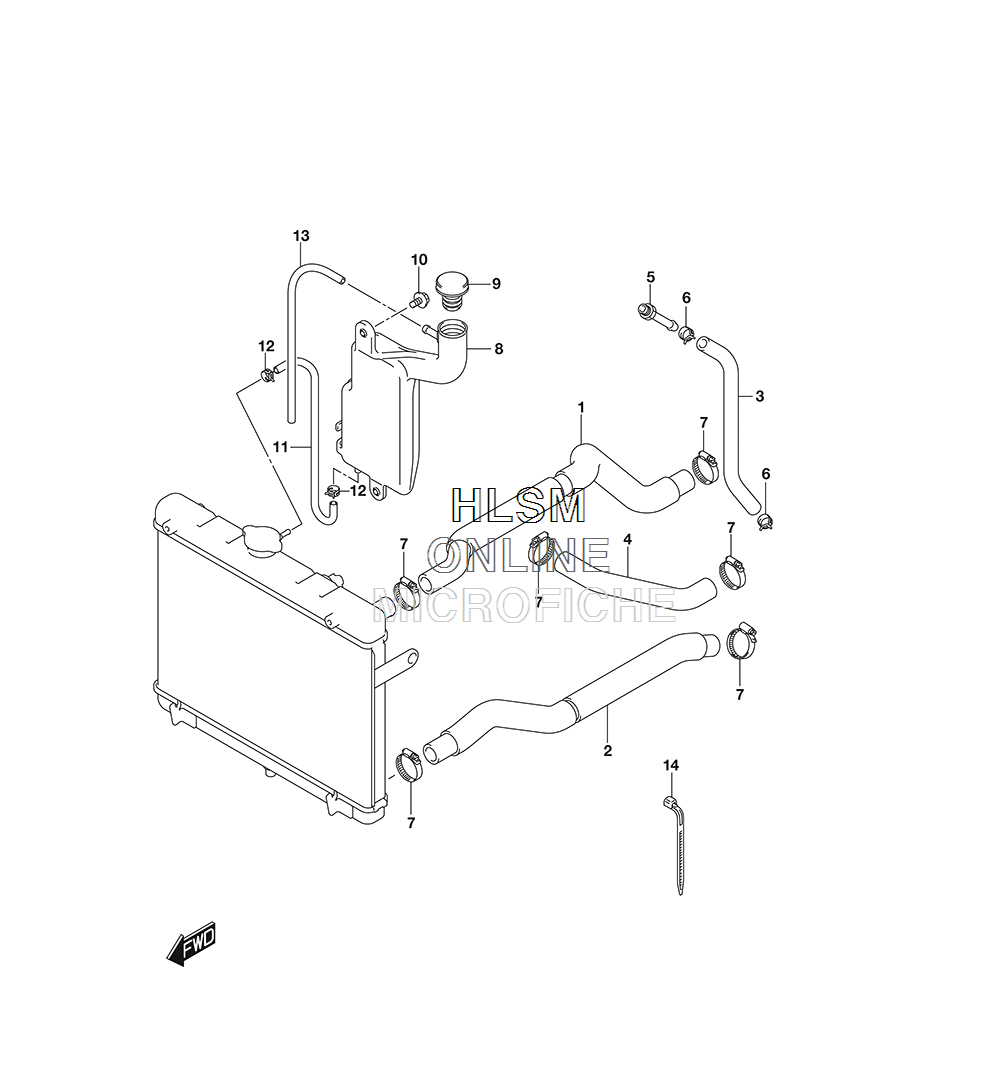

RADIATOR HOSE для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
117851-31G00 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-31G00 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317854-24F00 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
417854-31G00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
509362-09011 UNIONUNION
-
609401-12414 CLIPCLIP
-
709402-32512 CLAMPCLAMP
-
817911-31G01 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
917931-02FA0 CAP, WATER RESERVOIR TANKCAP, WATER RESERVOIR TANK
-
1009116-06165 BOLT (6X16)BOLT (6X16)
-
1117900-44810 HOSE, RSVR TANK INLET (L:600->450)HOSE, RSVR TANK INLET (L:600->450)
-
1209401-08411 CLIPCLIP
-
1309352-50901-600 HOSE (5X9X600) (L:600->360)HOSE (5X9X600) (L:600->360)
-
1409407-19401 CLAMP (L:190)CLAMP (L:190)
