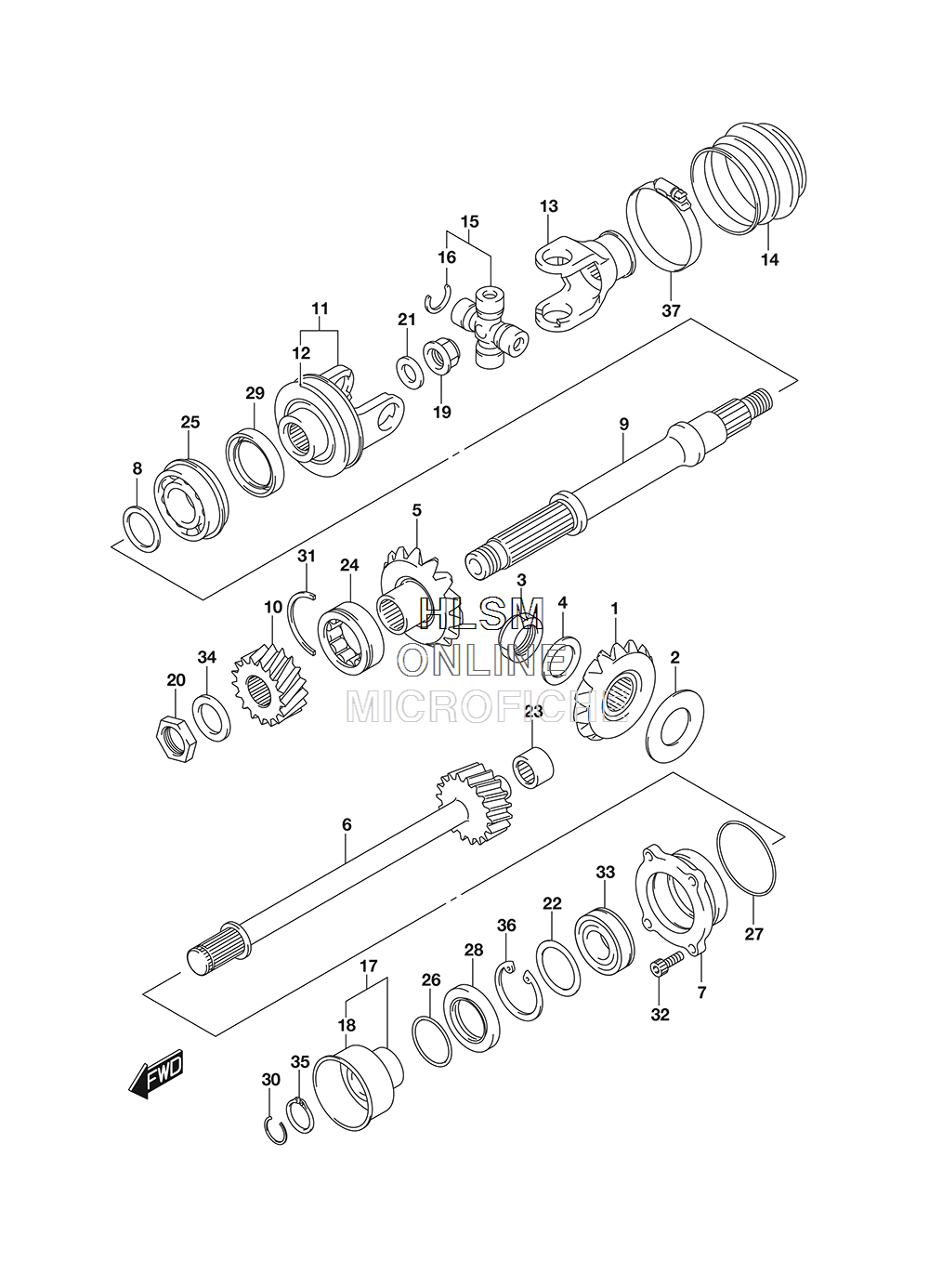

DRIVESHAFT - REAR AXLE для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
124911-31G00 GEAR, SEC DRIVE BEVEL (NT:15)GEAR, SEC DRIVE BEVEL (NT:15)
-
224935-03811 SHIM SET, SEC DRIVE BEVELSHIM SET, SEC DRIVE BEVEL
-
309140-20012 NUTNUT
-
409181-20223 SHIM (20X32X1)SHIM (20X32X1)
-
524921-31G10 GEAR, SEC DRIVEN BEVEL (NT:17GEAR, SEC DRIVEN BEVEL (NT:17
-
624961-31G40 SHAFT, SEC OUTPUT, FR (NT:18)SHAFT, SEC OUTPUT, FR (NT:18)
-
724965-31G00 HOUSING, FR OUTPUT SHAFT BRGHOUSING, FR OUTPUT SHAFT BRG
-
824945-03811 SHIM SETSHIM SET
-
924971-31G10 SHAFT, SEC OUTPUT, RRSHAFT, SEC OUTPUT, RR
-
1024972-31G20 GEAR, SEC DRIVEN OUTPUT (NT:18)GEAR, SEC DRIVEN OUTPUT (NT:18)
-
1127130-31G10 YOKE, RR DRIVE OUTPUTYOKE, RR DRIVE OUTPUT
-
1227592-31G30 ...FLANGE, OUTPUT YOKE BOOT...FLANGE, OUTPUT YOKE BOOT
-
1327141-31G00 YOKE, PROP SHAFT JOINT RRYOKE, PROP SHAFT JOINT RR
-
1427153-31G00 BOOT, REAR OUTPUT JOINTBOOT, REAR OUTPUT JOINT
-
1527200-73813 JOINT SET, UNIVERSAL RRJOINT SET, UNIVERSAL RR
-
1609380-25005 ...SNAP RING...SNAP RING
-
1727590-31G00 COLLAR, FRONT DRIVECOLLAR, FRONT DRIVE
-
1827592-31G00 ...PLATE, OUTPUT OIL SEAL...PLATE, OUTPUT OIL SEAL
-
1909159-16003 NUTNUT
-
2009159-22005 NUTNUT
-
2109160-16026 WASHER (16X30X3)WASHER (16X30X3)
-
2209181-40195 SHIM (40X52X1)SHIM (40X52X1)
-
2309263-25068 BEARING (25X37X17)BEARING (25X37X17)
-
2409263-30050 BEARING (30X50X17)BEARING (30X50X17)
-
2509267-25014 BEARING (25X52X20.6)BEARING (25X52X20.6)
-
2609280-25005 O RING (D:1.9,ID:24.5)O RING (D:1.9,ID:24.5)
-
2709280-57002 O RING (D:3.5,ID:65.2)O RING (D:3.5,ID:65.2)
-
2809283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
-
2909283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
-
3009381-21002 SNAP RINGSNAP RING
-
3109390-50002 C RINGC RING
-
3207130-0620A BOLTBOLT
-
3309262-25003 BEARING (25X52X15)BEARING (25X52X15)
-
3408211-22365 WASHERWASHER
-
3508331-31259 CIRCLIPCIRCLIP
-
3608331-41529 CIRCLIPCIRCLIP
