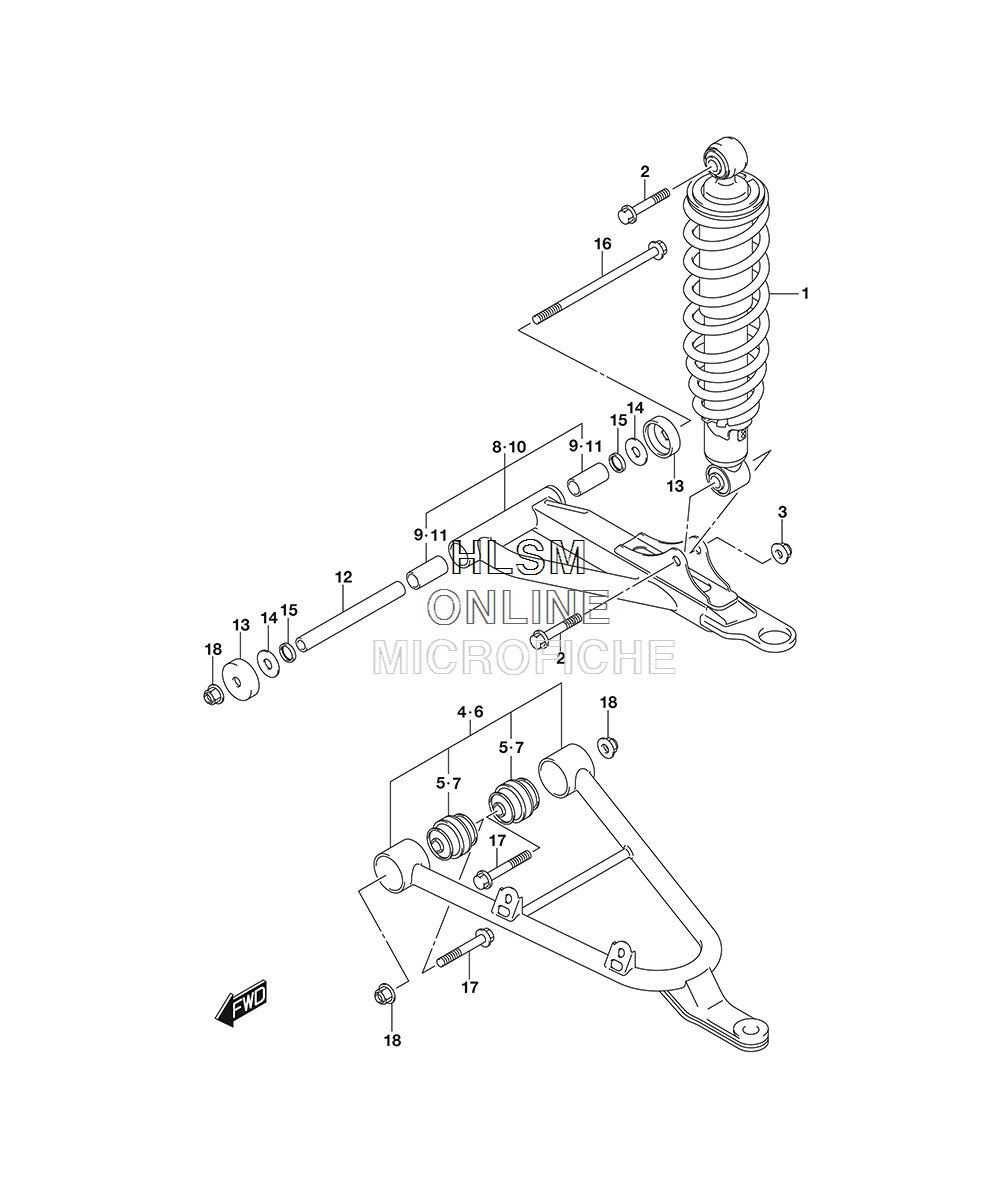

SUSPENSION - FRONT ARM для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
152100-31G30-019 ABSORBER ASSY, FRONT SHOCK (019 - BLACK)ABSORBER ASSY, FRONT SHOCK (019 - BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309159-10115 NUTNUT
-
452410-31830 ARM SET, SUSPENSION LOWER (RH)ARM SET, SUSPENSION LOWER (RH)
-
509319-10055 ...BUSH...BUSH
-
652420-31830 ARM SET, SUSPENSION LOWER (LH)ARM SET, SUSPENSION LOWER (LH)
-
709319-10055 ...BUSH...BUSH
-
852430-31840 ARM SET, SUSPENSION UPPER (RH)ARM SET, SUSPENSION UPPER (RH)
-
951236-31G00 ...BUSH...BUSH
-
1052440-31840 ARM SET, SUSPENSION UPPER (LH)ARM SET, SUSPENSION UPPER (LH)
-
1151236-31G00 ...BUSH...BUSH
-
1252455-31G10 SPACER, PIVOTSPACER, PIVOT
-
1351255-31G10 SEAL, FR SUSPENSION ARM PIVOTSEAL, FR SUSPENSION ARM PIVOT
-
1408211-10281 WASHERWASHER
-
1552454-45G00 SEALSEAL
-
1609103-10389 BOLT (10X160)BOLT (10X160)
-
1709103-10255 BOLT (10X57)BOLT (10X57)
