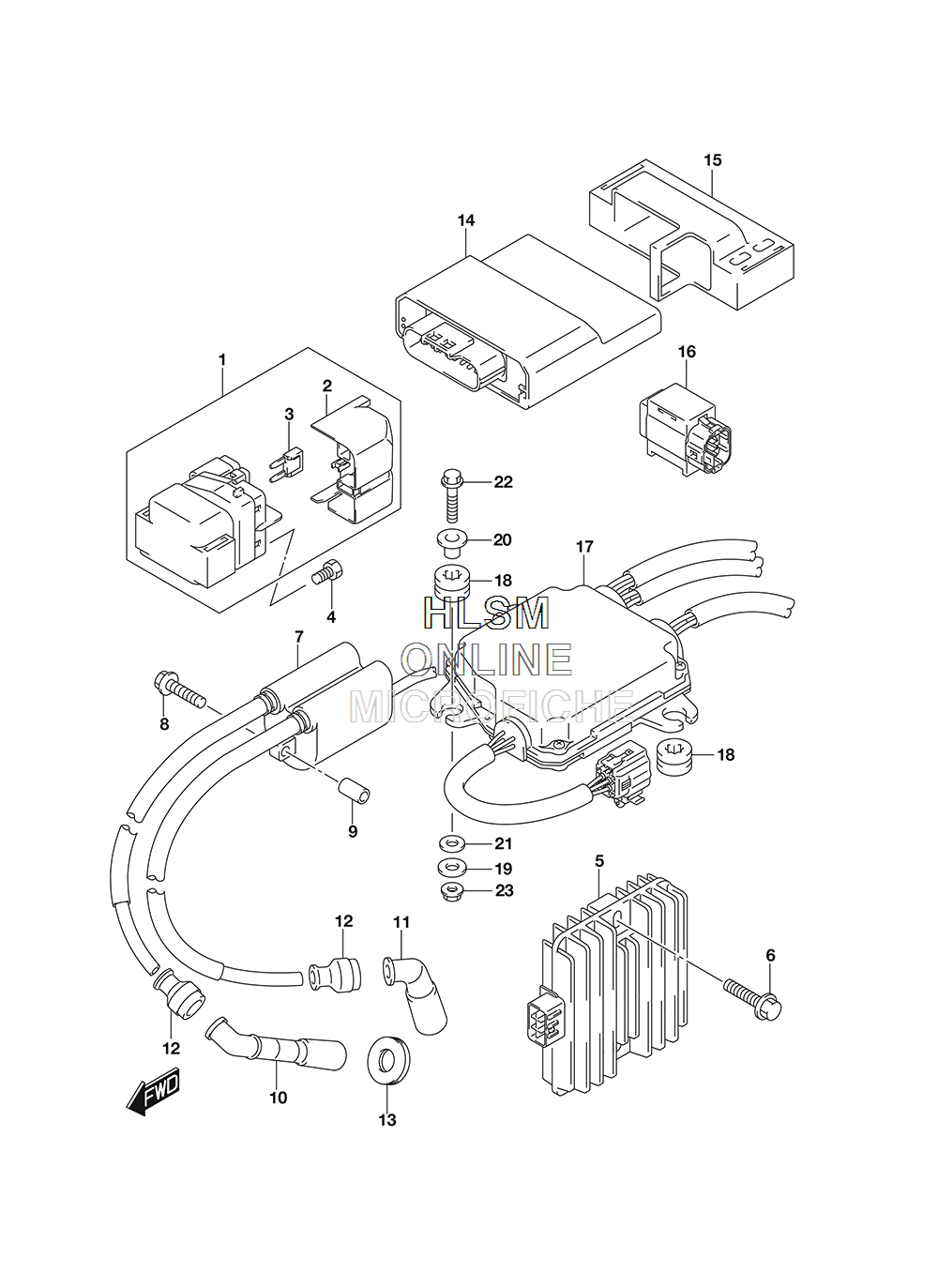

ELECTRICAL для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
131800-41G00 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-38G00 ...COVER...COVER
-
309481-30501 ...FUSE (30A)...FUSE (30A)
-
409128-06013 SCREW (6X8)SCREW (6X8)
-
532800-42F10 RECTIFIER ASSYRECTIFIER ASSY
-
601550-0620A BOLTBOLT
-
733410-40H00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
801547-0640A BOLTBOLT
-
909180-06195 SPACER (6.4X10X18)SPACER (6.4X10X18)
-
1033510-31G00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1133510-31G10 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1233542-38B00 SEAL, HIGH TENSION CORDSEAL, HIGH TENSION CORD
-
1333543-33E01 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
1432920-31GE0 CONTROL UNIT, FICONTROL UNIT, FI
-
1532980-31GA0 HOLDER, FI CONTROL UNITHOLDER, FI CONTROL UNIT
-
1633960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1732910-31G00 CONTROL UNIT, EPSCONTROL UNIT, EPS
-
1832912-31G00 CUSHION, EPSCUSHION, EPS
-
1909160-06094 WASHER (6.5X15X1.0)WASHER (6.5X15X1.0)
-
2009169-06075 WASHERWASHER
-
2109169-06076 WASHERWASHER
-
2201550-0630A BOLTBOLT
-
2308316-1006A NUTNUT
