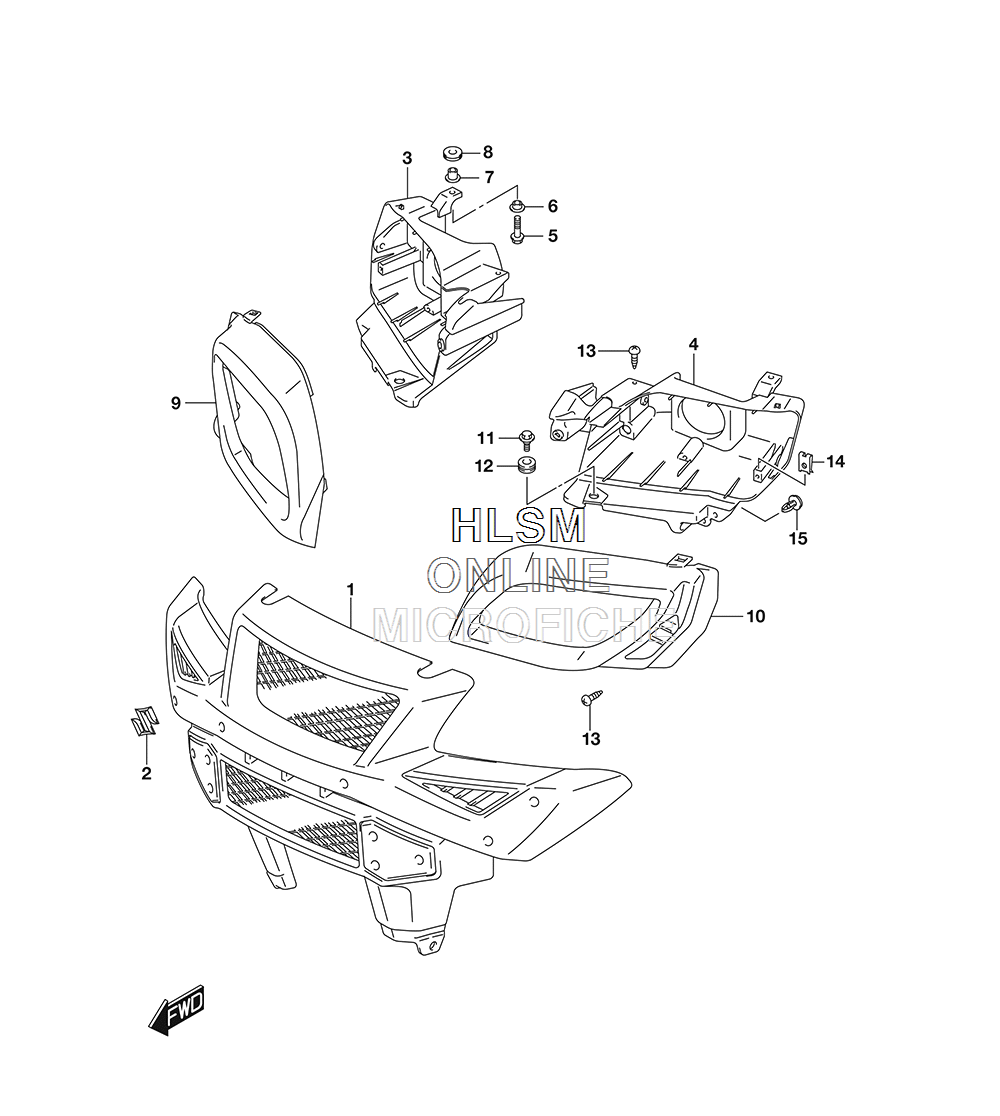

GRILLE - FRONT (EXCEPT CALIF.) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
153118-31GA1-291 GRILLE, FRONT (291 - BLACK)GRILLE, FRONT (291 - BLACK)
-
268151-03G40 EMBLEM, "S"EMBLEM, "S"
-
353281-31G01-291 HOUSING, FRONT (RH) (291 - BLACK)HOUSING, FRONT (RH) (291 - BLACK)
-
453284-31G01-291 HOUSING, FRONT (LH) (291 - BLACK)HOUSING, FRONT (LH) (291 - BLACK)
-
501550-0630A BOLTBOLT
-
609169-06073 WASHERWASHER
-
709169-06074 WASHERWASHER
-
809320-11021 CUSHIONCUSHION
-
953282-31G01-291 COVER, (RH) (291 - BLACK)COVER, (RH) (291 - BLACK)
-
1053283-31G01-291 COVER, (LH) (291 - BLACK)COVER, (LH) (291 - BLACK)
-
1109139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1209320-10501 CUSHIONCUSHION
-
1303541-0516A SCREWSCREW
-
1409148-05038 NUTNUT
