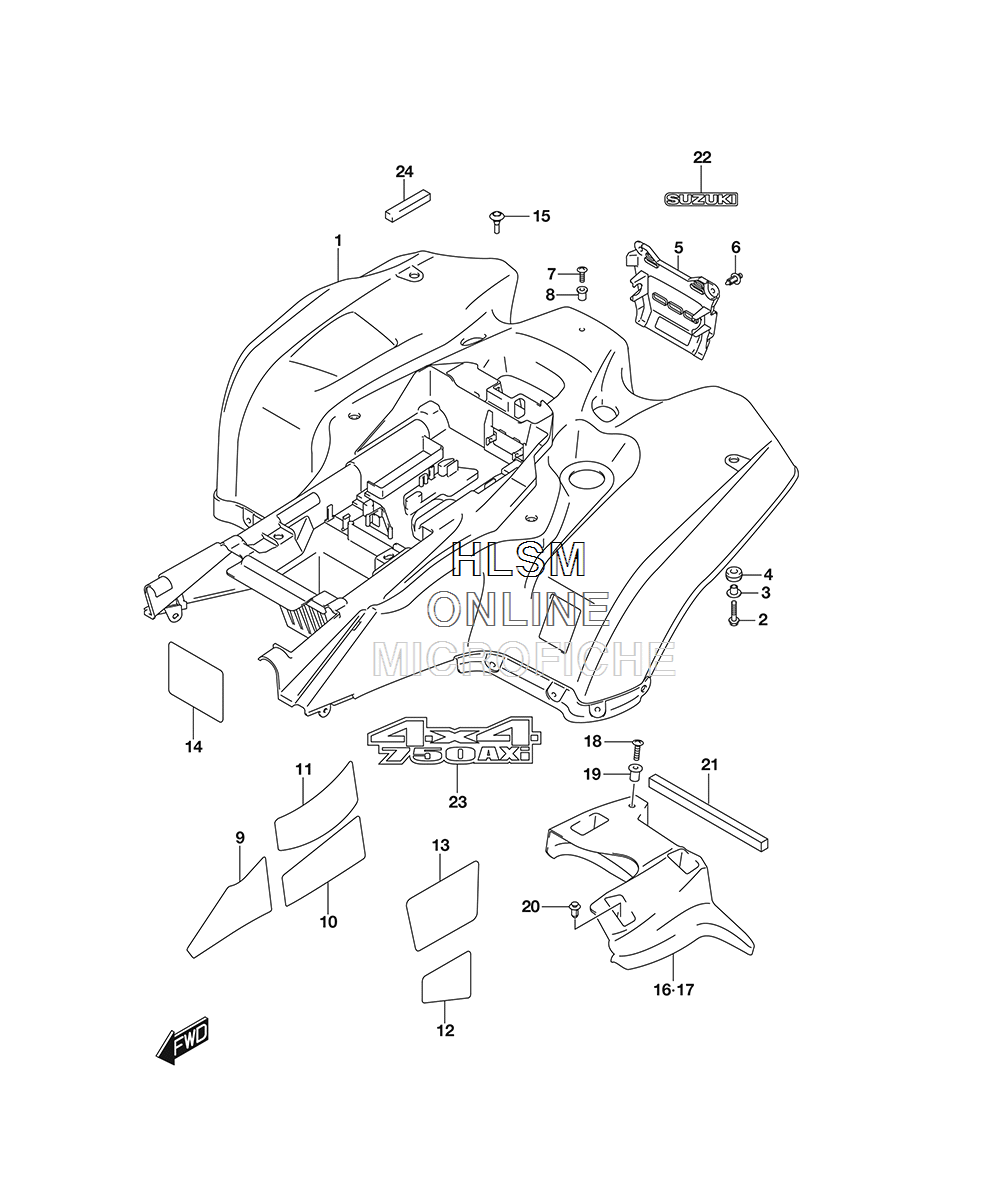

FENDER - REAR (CALIF.) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
163111-31G61-QFA FENDER, REAR (QFA - BLACK)FENDER, REAR (QFA - BLACK)
-
201550-0625A BOLTBOLT
-
309169-06074 WASHERWASHER
-
409320-11021 CUSHIONCUSHION
-
563251-31G00 COVER, REARCOVER, REAR
-
609409-07333 CLIPCLIP
-
702142-0520B SCREWSCREW
-
809159-05019 NUTNUT
-
963122-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1063123-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1163124-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1263126-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1363127-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1463128-31G20 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1593115-03G00 PLUG, REAR FENDERPLUG, REAR FENDER
-
1663351-31G00-291 MUDGUARD, REAR (RH) (291 - BLACK)MUDGUARD, REAR (RH) (291 - BLACK)
-
1763361-31G00-291 MUDGUARD, REAR (LH) (291 - BLACK)MUDGUARD, REAR (LH) (291 - BLACK)
-
1802142-0525B SCREWSCREW
-
1909159-05045 NUTNUT
-
2009409-08335 CLIPCLIP
-
2192143-31G00 CUSHIONCUSHION
-
2268171-31GA0-1ZZ EMBLEM, "SUZUKI" (1ZZ - GRAY)EMBLEM, "SUZUKI" (1ZZ - GRAY)
-
2368171-31GE0-JLJ EMBLEM, REAR FENDER (JLJ - WHITE/GREEN/GRAY/RED/GRAY)EMBLEM, REAR FENDER (JLJ - WHITE/GREEN/GRAY/RED/GRAY)
-
2447437-31GA0 CUSHION, TOOLCUSHION, TOOL
