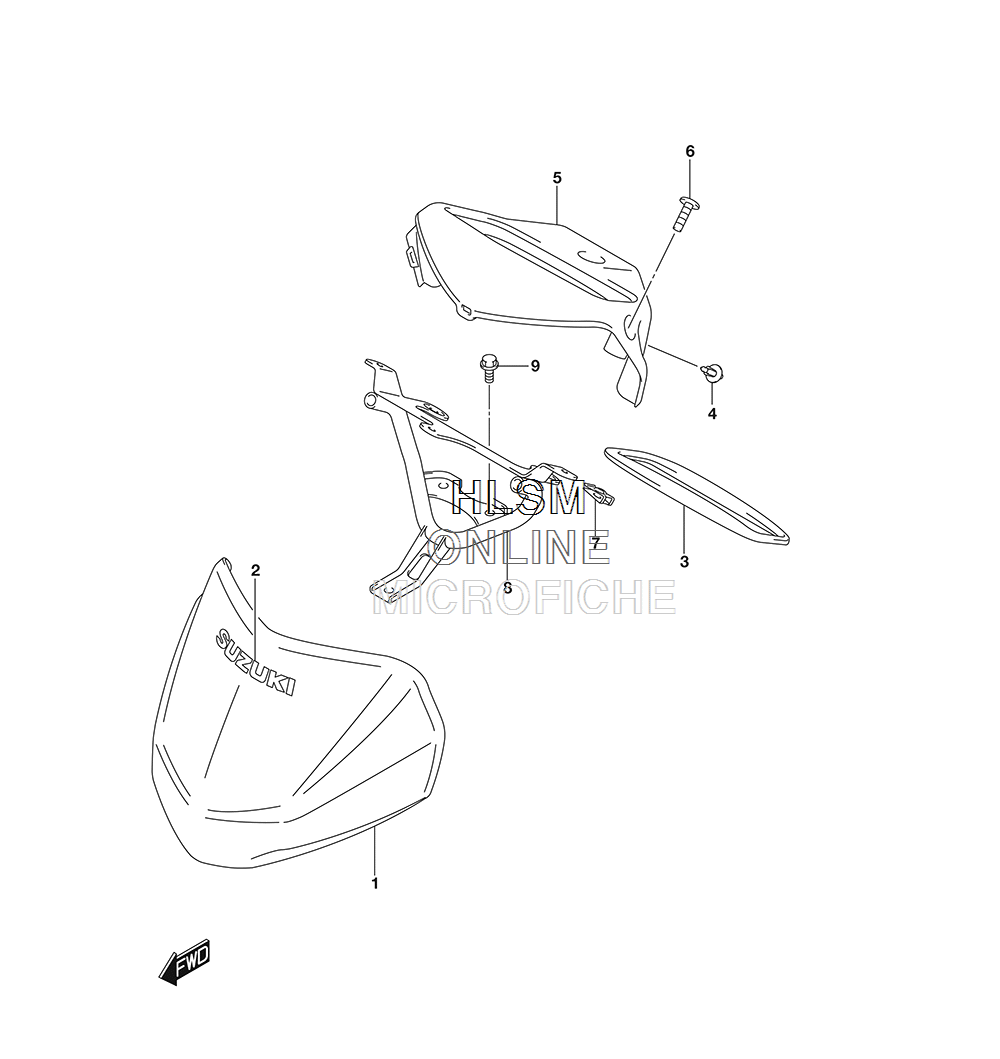

HANDLE COVER (CANADA) для Suzuki LT-A750XPBL8 KINGQUAD 750 AXI RUGGED PACKAGE - 2018 года выпуска
-
№АртикулНазвание
-
1-156311-31GA0-YLG COVER, FRONT (YLG - GREEN)COVER, FRONT (YLG - GREEN)
-
1-256311-31GA0-YLZ COVER, FRONT (YLZ - BLACK)COVER, FRONT (YLZ - BLACK)
-
1-356311-31GA0-YT9 COVER, FRONT (YT9 - RED)COVER, FRONT (YT9 - RED)
-
1-456311-31GB0-PHW COVER, FRONT (PHW - CAMOUFLAGE)COVER, FRONT (PHW - CAMOUFLAGE)
-
1-556311-31G70-QFA COVER, FRONT (QFA - BLACK)COVER, FRONT (QFA - BLACK)
-
268171-31GA0-1ZZ EMBLEM, SUZUKI (1ZZ - GRAY)EMBLEM, SUZUKI (1ZZ - GRAY)
-
356317-31G00 MOLDING, HANDLE COVERMOLDING, HANDLE COVER
-
409409-07333 CLIPCLIP
-
556321-11H00-291 COVER, HANDLE REAR (291 - BLACK)COVER, HANDLE REAR (291 - BLACK)
-
603141-0525A SCREWSCREW
-
709148-05038 NUTNUT
-
856160-11H00 BRACE, COVERBRACE, COVER
