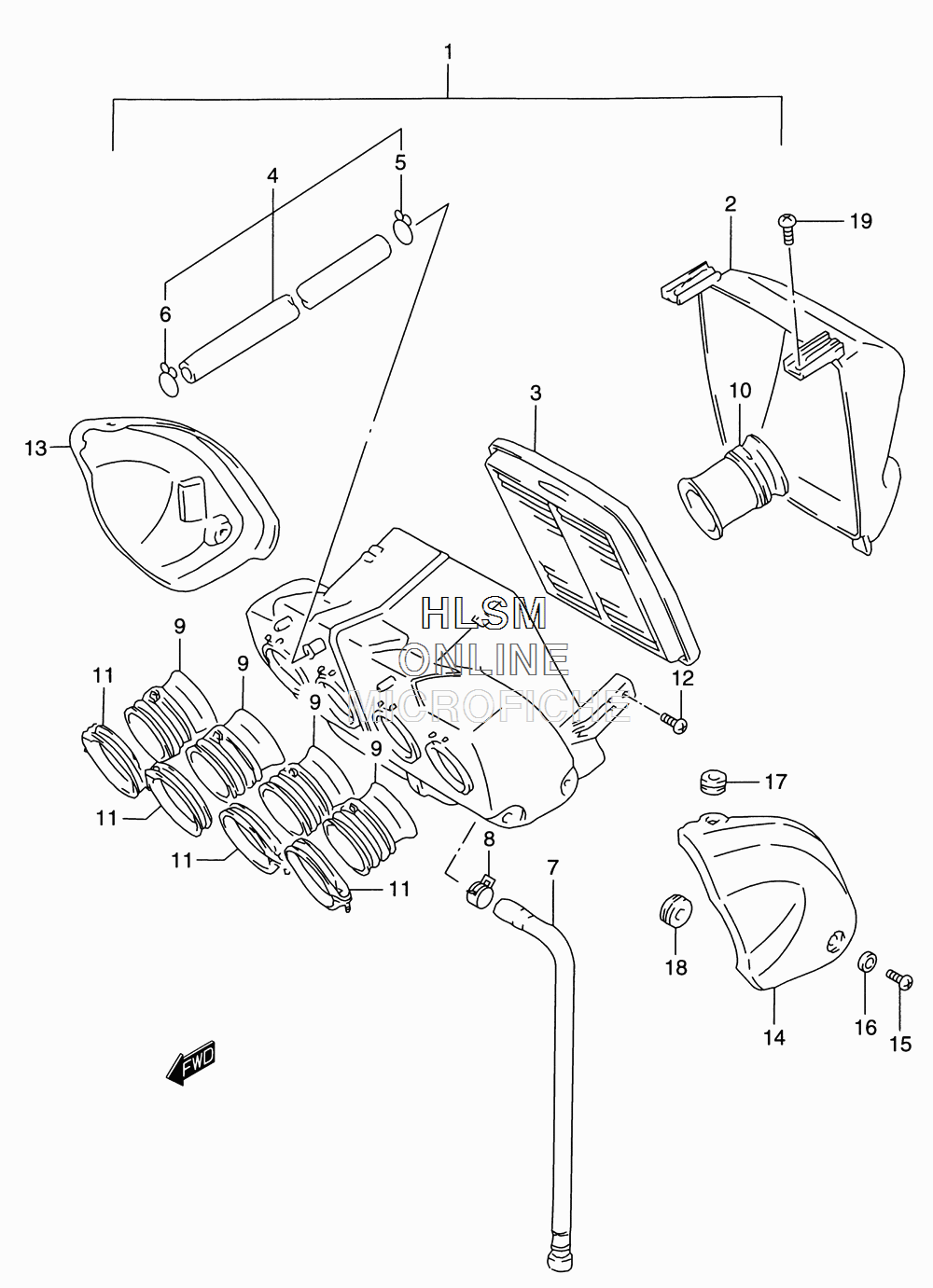

AIR CLEANER для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
113700-27E00 CLEANER ASSY, AIR (INC. 2-12)CLEANER ASSY, AIR (INC. 2-12)
-
213740-17E02 CAPCAP
-
313780-17E00 FILTERFILTER
-
413850-27E00 TUBE, BREATHERTUBE, BREATHER
-
509401-14301 CLIPCLIP
-
609401-16401 CLIPCLIP
-
713870-21458 TUBE, DRAINTUBE, DRAIN
-
809401-13417 CLIPCLIP
-
913881-01D01 TUBE, OUTLETTUBE, OUTLET
-
1013891-31E10 TUBE, INLETTUBE, INLET
-
1109402-68208 CLAMPCLAMP
-
1202142-05127 SCREWSCREW
-
1313910-27E00 COVER, RIGHT HANDCOVER, RIGHT HAND
-
1413920-27E00 COVER, LEFT HANDCOVER, LEFT HAND
-
1509139-05025 SCREW (5X14)SCREW (5X14)
-
1609169-05013 WASHERWASHER
-
1709320-06504 CUSHIONCUSHION
-
1809320-08018 CUSHIONCUSHION
-
1902142-06123 SCREWSCREW
