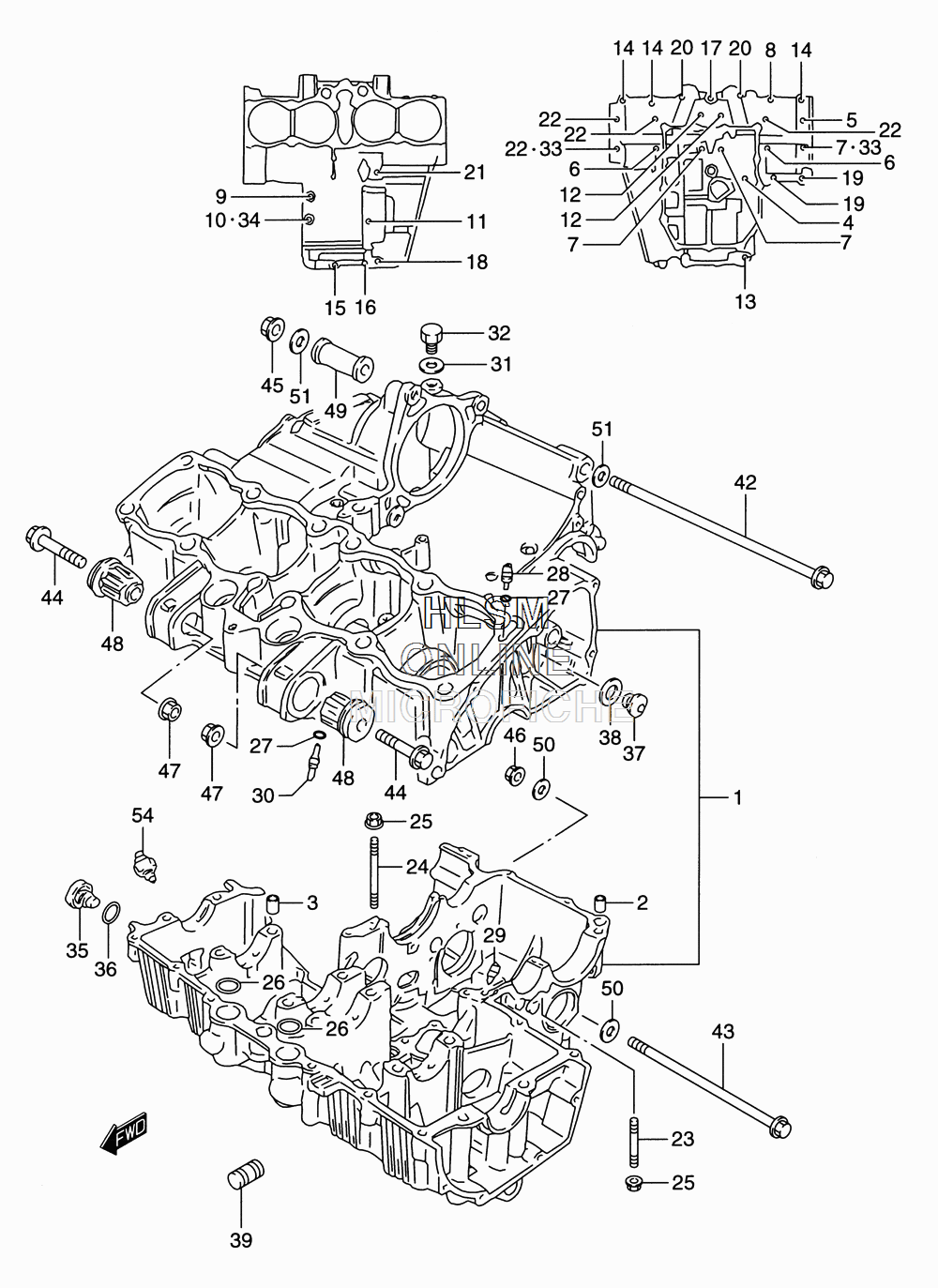

CRANKCASE для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
111301-27830 CRANKCASE SET (INC. 2-29)CRANKCASE SET (INC. 2-29)
-
209206-13004 PIN (13X22)PIN (13X22)
-
309206-11017 PIN (11X20)PIN (11X20)
-
409103-06163 BOLT (6X105)BOLT (6X105)
-
509103-08097 BOLT (8X105)BOLT (8X105)
-
609103-08182 BOLT (8X125)BOLT (8X125)
-
709103-08098 BOLT (8X115)BOLT (8X115)
-
801550-06353 BOLTBOLT
-
907130-06403 BOLTBOLT
-
1007120-06557 BOLT (CHROME) (UP TO ENGINE NO. 140698)BOLT (CHROME) (UP TO ENGINE NO. 140698)
-
1007120-06553 BOLT (GREEN) (ENGINE NO. 140699 AND UP)BOLT (GREEN) (ENGINE NO. 140699 AND UP)
-
1107130-06653 BOLTBOLT
-
1207130-08653 BOLTBOLT
-
1301550-08603 BOLTBOLT
-
1401550-06353 BOLTBOLT
-
1501550-06403 BOLTBOLT
-
1601550-06403 BOLTBOLT
-
1701550-06503 BOLTBOLT
-
1801550-06603 BOLTBOLT
-
1901550-06553 BOLTBOLT
-
2001550-06703 BOLTBOLT
-
2101550-06803 BOLTBOLT
-
2209103-08066 BOLT (8X95)BOLT (8X95)
-
2301421-06408 STUD BOLTSTUD BOLT
-
2401421-06608 STUD BOLTSTUD BOLT
-
2508316-10063 NUTNUT
-
2609280-21008 O RING (D:2.5,ID:21)O RING (D:2.5,ID:21)
-
2709280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2809493-14002 JETJET
-
2909493-24010 JETJET
-
3009493-26007 JET (INC. 31-41)JET (INC. 31-41)
-
3109168-12002 GASKETGASKET
-
3209247-12103 PLUGPLUG
-
3309168-08021 GASKET 8.5X17X2GASKET 8.5X17X2
-
3409168-06018 GASKETGASKET
-
3509248-16003 PLUGPLUG
-
3609280-17002 O RING (D:2.4,ID:16.8)O RING (D:2.4,ID:16.8)
-
3709248-14010 PLUGPLUG
-
3809168-14002 GASKETGASKET
-
3916591-06B00 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
4012228-48B00-0E0 BEARING, CRANK THRUST (GREEN) (SEE CRANKSHAFT)BEARING, CRANK THRUST (GREEN) (SEE CRANKSHAFT)
-
4112228-48B00-0A0 BEARING, CRANK THRUST (PINK) (SEE CRANKSHAFT)BEARING, CRANK THRUST (PINK) (SEE CRANKSHAFT)
-
4112228-48B00-0B0 BEARING, CRANK THRUST (BROWN)BEARING, CRANK THRUST (BROWN)
-
4112228-48B00-0C0 BEARING, CRANK THRUST (RED)BEARING, CRANK THRUST (RED)
-
4112228-48B00-0D0 BEARING, CRANK THRUST (YELLOW) (INC. 41-41)BEARING, CRANK THRUST (YELLOW) (INC. 41-41)
-
4112228-48B00-0E0 BEARING, CRANK THRUST (GREEN)BEARING, CRANK THRUST (GREEN)
-
4112228-48B00-0F0 BEARING, CRANK THRUST (BLUE)BEARING, CRANK THRUST (BLUE)
-
4112228-48B00-0G0 BEARING, CRANK THRUST (ORANGE) (INC. 41)BEARING, CRANK THRUST (ORANGE) (INC. 41)
-
4112228-48B00-0H0 BEARING, CRANK THRUST (BLACK)BEARING, CRANK THRUST (BLACK)
-
4209103-10136 BOLT (10X180)BOLT (10X180)
-
4309100-12053 BOLT (12X140)BOLT (12X140)
-
4409103-10289 BOLTBOLT
-
4509159-10058 NUTNUT
-
4608319-31128 NUTNUT
-
4708316-10103 NUTNUT
-
4811681-06B00 BUSH, ENGINE MOUNTBUSH, ENGINE MOUNT
-
4911610-20C00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
5008322-01123 WASHERWASHER
-
5108322-01103 WASHERWASHER
-
5237820-33D00 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
