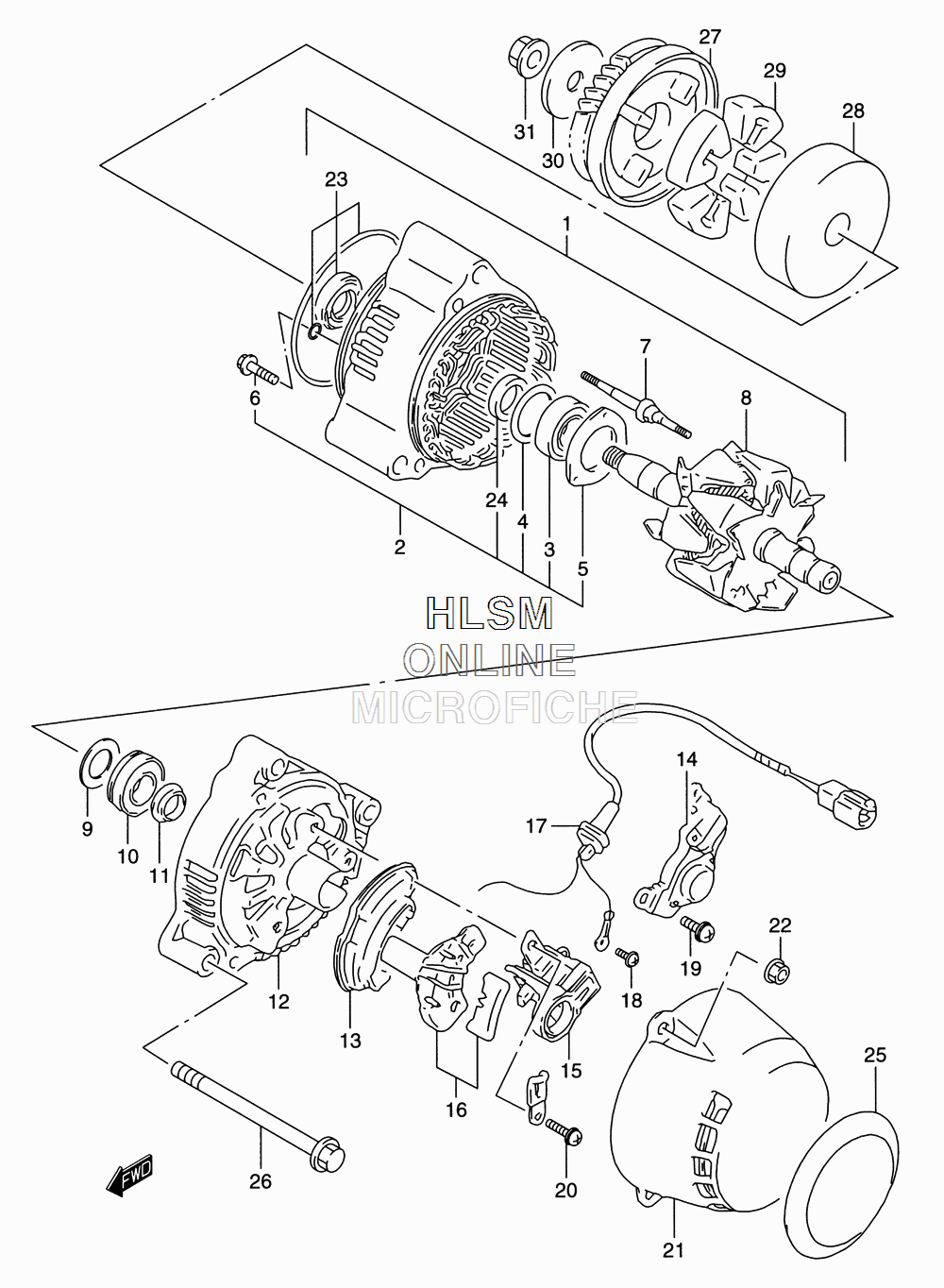

ALTERNATOR для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
131400-19C10 ALTERNATOR ASSY (INC. 2-24)ALTERNATOR ASSY (INC. 2-24)
-
231580-48B00 FRAME, DRIVE ENDFRAME, DRIVE END
-
331612-06B00 BEARING B1 15X35X11BEARING B1 15X35X11
-
431613-48B00 COVER, BEARINGCOVER, BEARING
-
531585-48B00 RETAINERRETAINER
-
631586-48B00 SCREW, BEARING RETAINERSCREW, BEARING RETAINER
-
731587-85250 STUD BOLTSTUD BOLT
-
831710-19C10 ALTERNATOR ASSYALTERNATOR ASSY
-
931613-82610 COVER, BEARINGCOVER, BEARING
-
1031612-48B00 BEARING B1 15X32X11BEARING B1 15X32X11
-
1131613-27A10 COVER, NO.2COVER, NO.2
-
1231611-48B00 FRAME, ENDFRAME, END
-
1331621-27A00 HOLDER, RECTIFIERHOLDER, RECTIFIER
-
1432500-27A00 REGULATORREGULATOR
-
1531656-48B00 HOLDER, BRUSHHOLDER, BRUSH
-
1631687-17E00 COVER, RECTIFIERCOVER, RECTIFIER
-
1731480-48B00 WIRE, LEADWIRE, LEAD
-
1802112-04063 SCREWSCREW
-
1931688-27A00 SCREWSCREW
-
2031688-27A00 SCREWSCREW
-
2131614-48B00 COVERCOVER
-
2208316-10053 NUTNUT
-
2331780-27X50 SERVICE KIT, ALTERNATORSERVICE KIT, ALTERNATOR
-
2431776-06B00 SPACERSPACER
-
2531615-27E00 PLATE, ALTERNATOR ABSORBERPLATE, ALTERNATOR ABSORBER
-
2601550-08903 BOLTBOLT
-
2722730-27A05 GEAR, GENERATOR DRIVENGEAR, GENERATOR DRIVEN
-
2822733-27A05 HOUSING, GENERATOR GEAR DAMPERHOUSING, GENERATOR GEAR DAMPER
-
2921231-06B00 DAMPER, GENERATOR DIVENDAMPER, GENERATOR DIVEN
-
3008211-10283 WASHERWASHER
-
3108316-20103 NUTNUT
