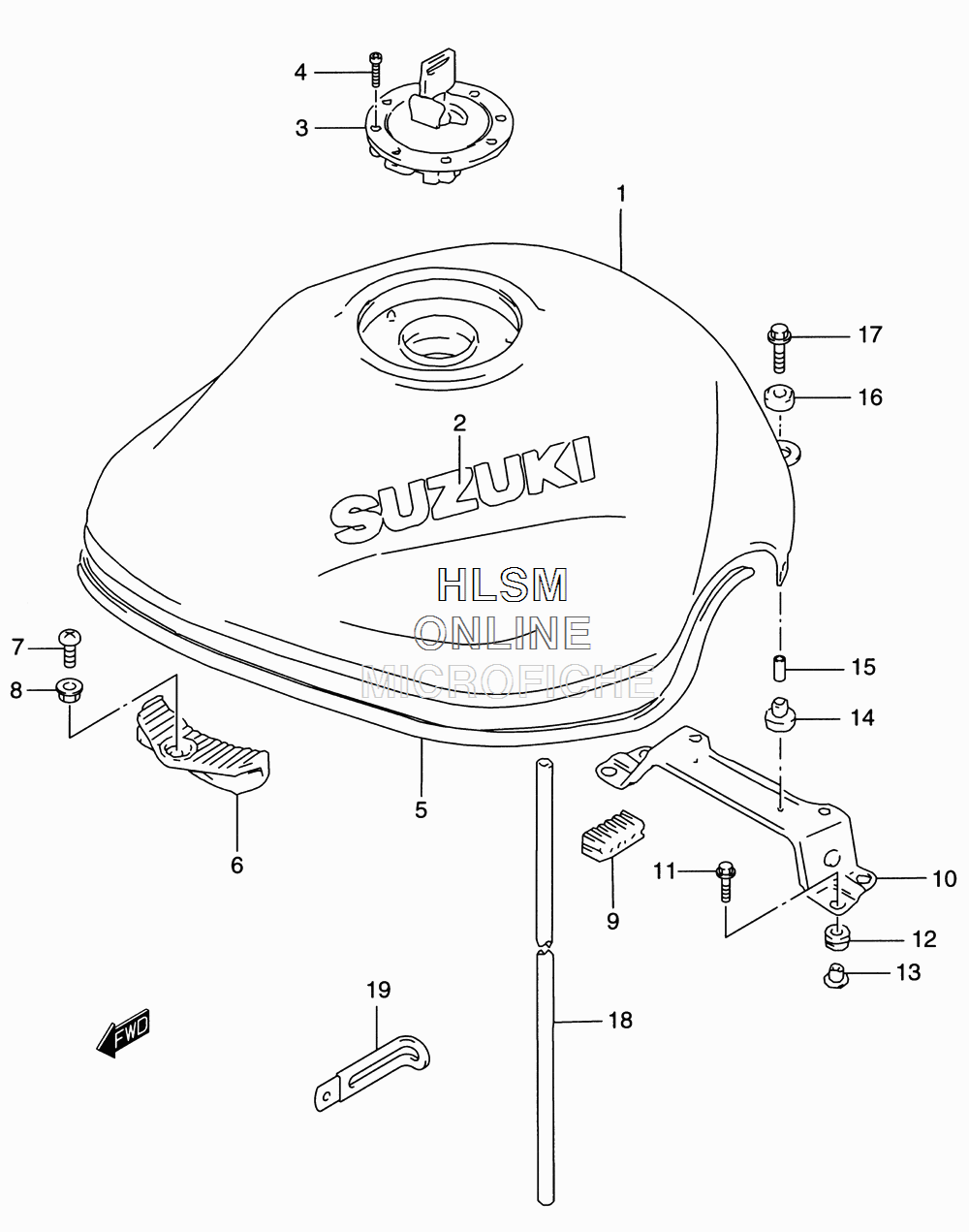

FUEL TANK для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
144100-26E61-Y1X TANK ASSY, FUEL (MAROON) (ALL EXCEPT CALIF.)TANK ASSY, FUEL (MAROON) (ALL EXCEPT CALIF.)
-
144100-26E61-YC7 TANK ASSY, FUEL (SILVER) (ALL EXCEPT CALIF)TANK ASSY, FUEL (SILVER) (ALL EXCEPT CALIF)
-
144100-26E70-Y1X TANK ASSY, FUEL (MAROON) (CALIF. ONLY)TANK ASSY, FUEL (MAROON) (CALIF. ONLY)
-
144100-26E70-YC7 TANK ASSY, FUEL (SILVER) (INC. 2) (CALIF. ONLY)TANK ASSY, FUEL (SILVER) (INC. 2) (CALIF. ONLY)
-
268111-47C00-24G EMBLEM (GOLD) FOR Y1XEMBLEM (GOLD) FOR Y1X
-
268111-47C00-29F EMBLEM (BROWN) FOR YC7EMBLEM (BROWN) FOR YC7
-
344201-01832 CAP SET, FUEL TANK (ALL EXCEPT CALIF.)CAP SET, FUEL TANK (ALL EXCEPT CALIF.)
-
344201-01842 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
409106-05017 BOLTBOLT
-
568241-04X50-00B MOLDINGMOLDING
-
644511-27E00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
702142-05103 SCREWSCREW
-
809169-05012 WASHERWASHER
-
945149-31300 CUSHION, SIDECUSHION, SIDE
-
1044530-26E00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1109116-06146 BOLTBOLT
-
1209320-09009 CUSHIONCUSHION
-
1309169-06062 SPACERSPACER
-
1409320-10038 CUSHION, LOWERCUSHION, LOWER
-
1509180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1609320-14017 CUSHION, UPPERCUSHION, UPPER
-
1709116-06172 BOLTBOLT
-
1809352-70103-00B HOSE, DRAIN (L:2000?670)HOSE, DRAIN (L:2000?670)
-
1909404-10417 CLAMPCLAMP
