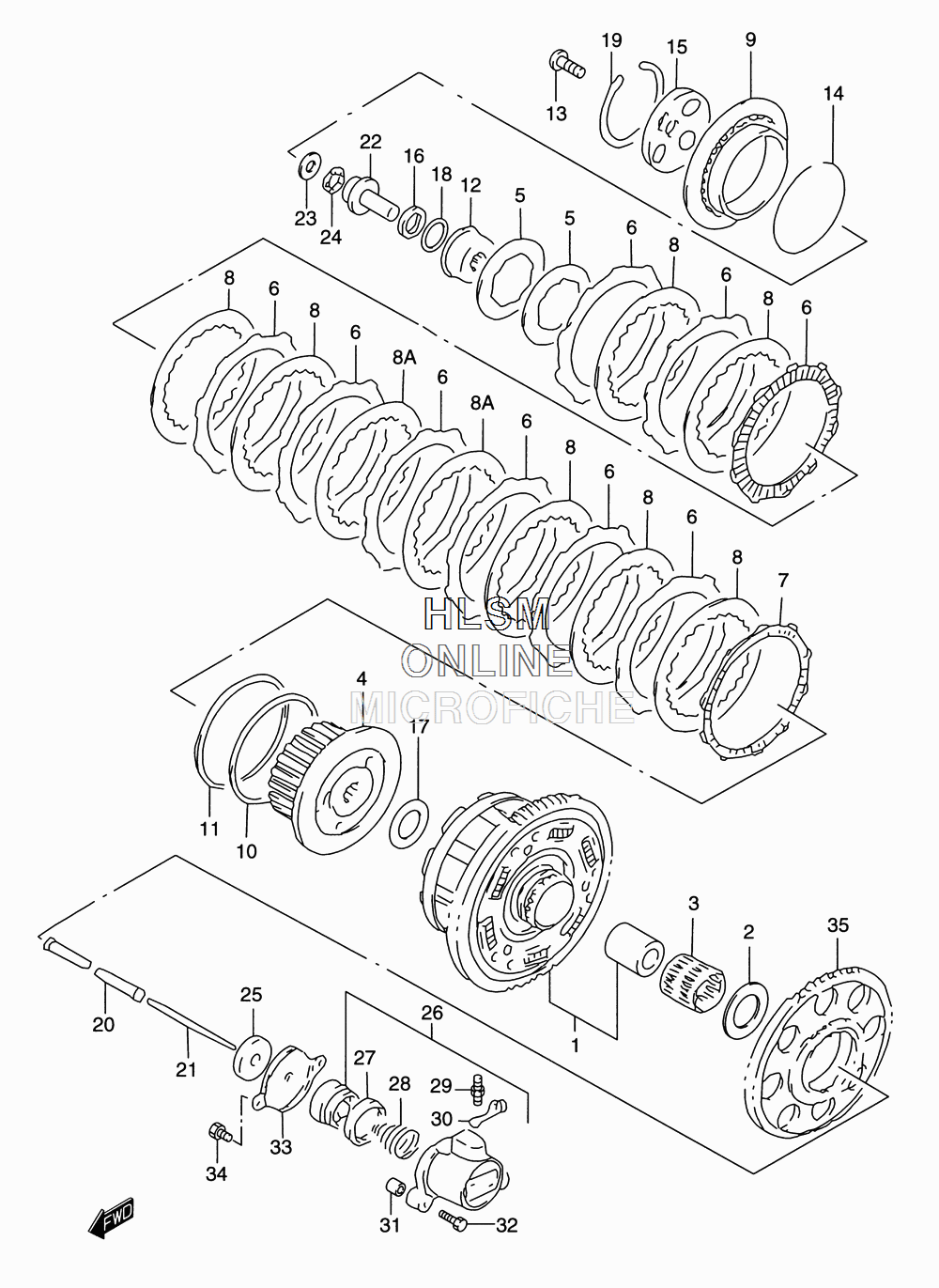

CLUTCH для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
121200-31861 GEAR ASSY, PRIMARY DRIVENGEAR ASSY, PRIMARY DRIVEN
-
209160-25037 WASHER (25.1X54X2.5)WASHER (25.1X54X2.5)
-
309263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
421410-31E20 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521413-31E20 SPRING, CLUTCHSPRING, CLUTCH
-
621441-31E00 PLATE, CLUTCH DRIVE NO.1PLATE, CLUTCH DRIVE NO.1
-
721442-31E00 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
821451-31E00 PLATE, CLUTCH DRIVEN NO.1PLATE, CLUTCH DRIVEN NO.1
-
8A21451-31E10 PLATE, CLUTCH DRIVEN NO.2PLATE, CLUTCH DRIVEN NO.2
-
921462-31E20 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
1021471-31E20 SEAT, CLUTCH PLATESEAT, CLUTCH PLATE
-
1121472-31E20 WASHER, CLUTCH PLATEWASHER, CLUTCH PLATE
-
1221611-31E20 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1321614-31E20 SCREW, CLUTCH SPRINGSCREW, CLUTCH SPRING
-
1421623-31E20 SEAT, CLUTCH SPRINGSEAT, CLUTCH SPRING
-
1521463-40C01 LIFTER, CLUTCH RELEASELIFTER, CLUTCH RELEASE
-
1609159-24010 NUT, CLUTCH SLEEVE HUBNUT, CLUTCH SLEEVE HUB
-
1709160-25056 WASHER, CLUTCH SLEEVEWASHER, CLUTCH SLEEVE
-
1809164-24006 WASHER, CLUTCH WAVEWASHER, CLUTCH WAVE
-
1909381-84003 CIRCLIP, CLUTCH PRESSURECIRCLIP, CLUTCH PRESSURE
-
2023110-38B00 ROD, CLUTCH PUSH RIGHT HANDROD, CLUTCH PUSH RIGHT HAND
-
2123111-31301 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
2223121-31E00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2309160-15045 WASHER, CLUTCH PUSHWASHER, CLUTCH PUSH
-
2409263-15003 BEARING, CLUTCH PUSHBEARING, CLUTCH PUSH
-
2509285-06015 SEAL, CLUTCH PUSH RODSEAL, CLUTCH PUSH ROD
-
2623160-06B02 CYLINDER, CLUTCH RELEASE (INC. 27-30)CYLINDER, CLUTCH RELEASE (INC. 27-30)
-
2723163-06B00 CUPCUP
-
2823164-05A00 SPRINGSPRING
-
2959121-01A00 BLEEDERBLEEDER
-
3059122-01A00 CAP, BLEEDERCAP, BLEEDER
-
3104211-09129 KNOCK PINKNOCK PIN
-
3207130-06253 BOLTBOLT
-
3323117-46E00 COVER, CLUTCH RELEASECOVER, CLUTCH RELEASE
-
3402112-06103 SCREWSCREW
-
3522721-27A03 GEAR, GENERATOR DRIVEGEAR, GENERATOR DRIVE
