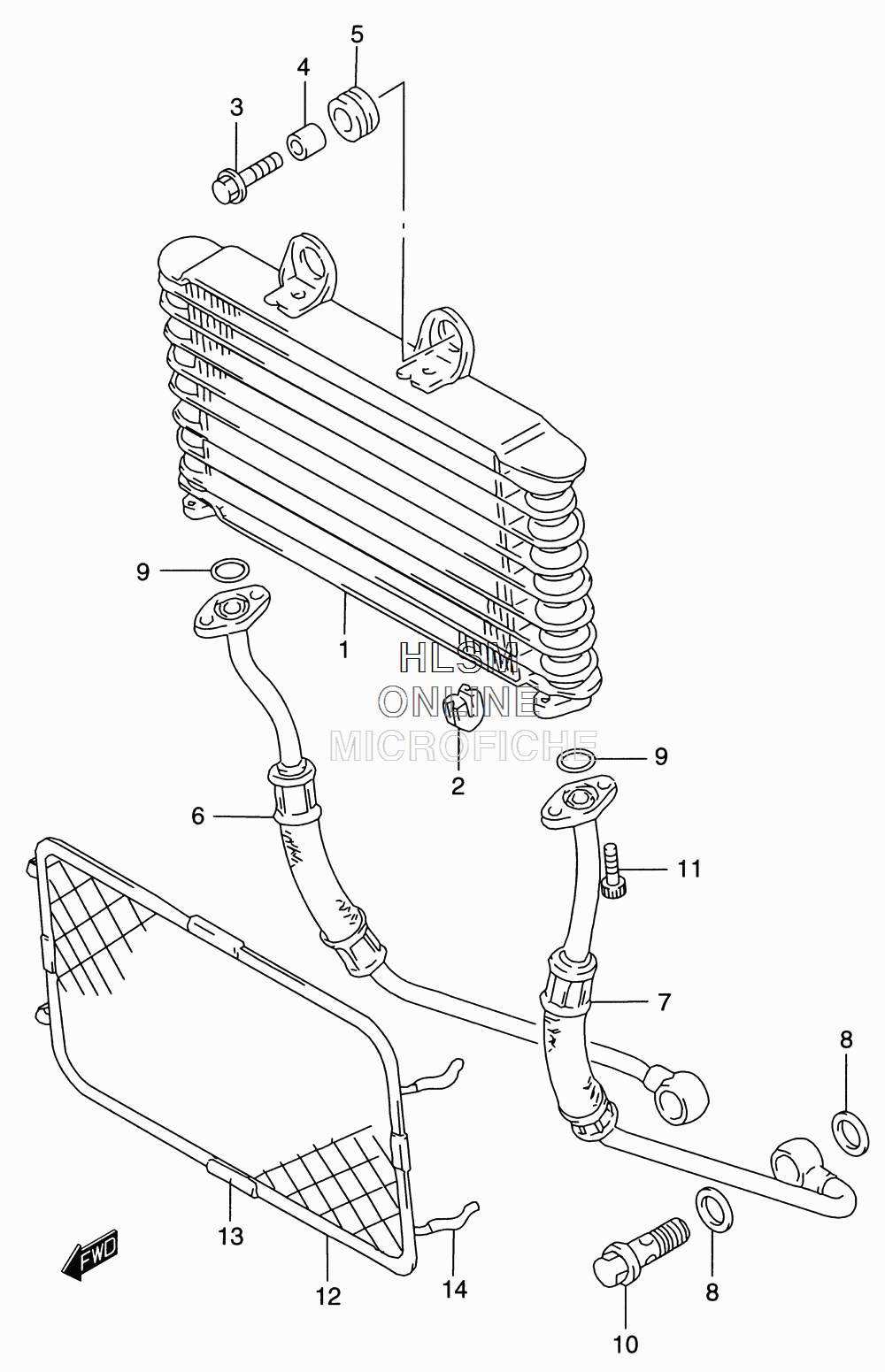

OIL COOLER для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
116600-27E10 COOLER ASSY, OILCOOLER ASSY, OIL
-
216628-27A00 CUSHIONCUSHION
-
309116-06115 BOLTBOLT
-
409180-06310 SPACERSPACER
-
509320-10015 CUSHIONCUSHION
-
616460-27E10 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
716470-27E10 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
809168-16002 GASKET 16X22X2GASKET 16X22X2
-
909280-12008 O RING (D:2.4,ID:12.3)O RING (D:2.4,ID:12.3)
-
1009360-16002 BOLT (16X32)BOLT (16X32)
-
1107130-06303 BOLTBOLT
-
1216650-27E10 GUARD, OIL COOLER (INC. 13)GUARD, OIL COOLER (INC. 13)
-
1316654-27E00 PROTECTORPROTECTOR
-
1409352-30503-600 HOSE (3X5X600)HOSE (3X5X600)
