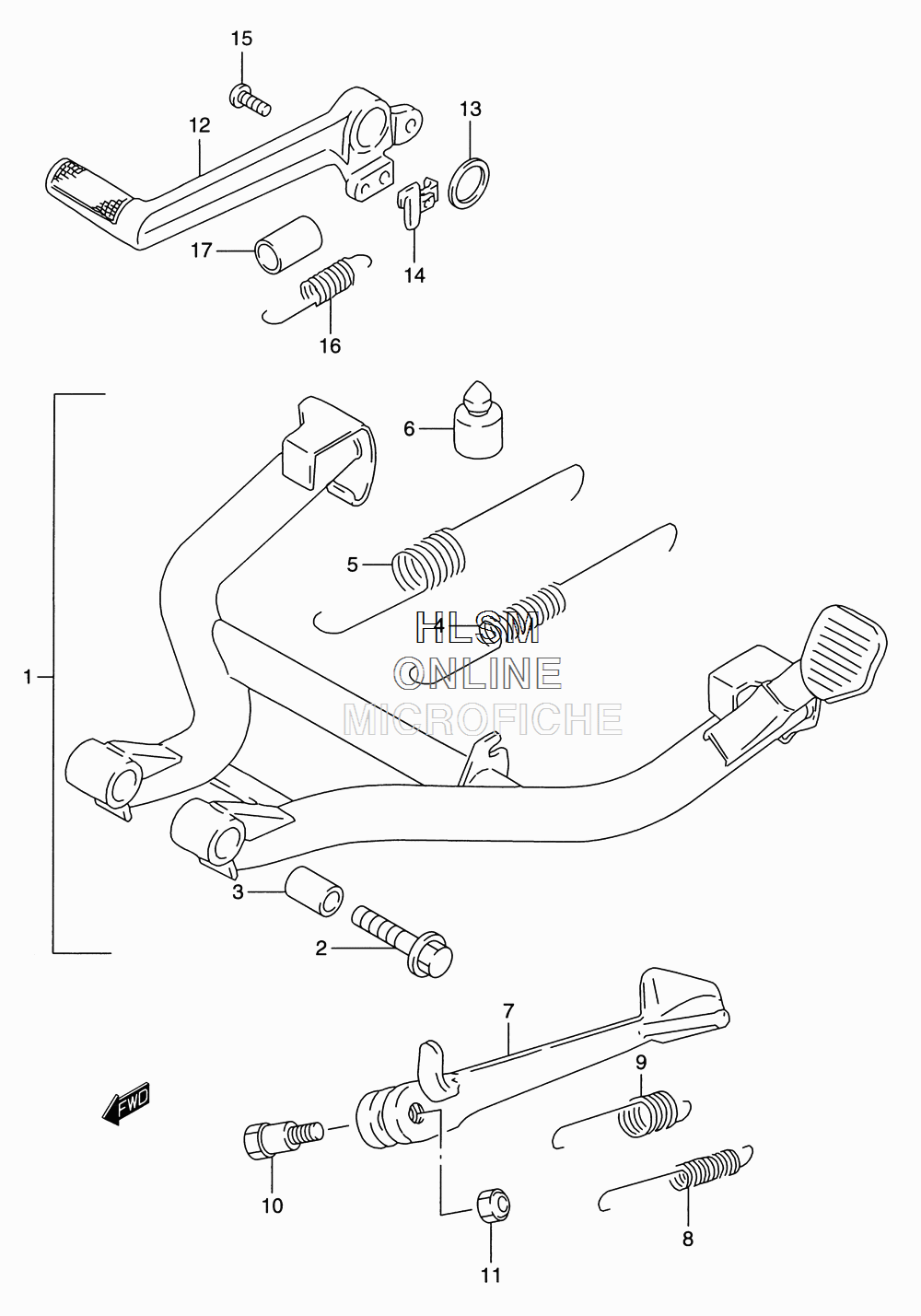

BRAKE PEDAL W/ STAND для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
142100-26822 STAND SET, CENTER (INC. 2-6)STAND SET, CENTER (INC. 2-6)
-
209103-10126 BOLTBOLT
-
309180-10113 SPACER 10X16X25SPACER 10X16X25
-
409443-14059 SPRING, INNERSPRING, INNER
-
509443-22013 SPRING, OUTERSPRING, OUTER
-
609321-10017 CUSHIONCUSHION
-
742310-27E10 STAND, PROPSTAND, PROP
-
809443-12036 SPRING, INNERSPRING, INNER
-
909443-19010 SPRING, OUTERSPRING, OUTER
-
1009111-10027 BOLTBOLT
-
1109159-10027 NUTNUT
-
1108319-21103 NUTNUT
-
1243111-31E01 PEDAL, BRAKEPEDAL, BRAKE
-
1309160-18022 WASHER (18X24X1)WASHER (18X24X1)
-
1443560-32C00 BRACKET, STOP SWITCH SPRINGBRACKET, STOP SWITCH SPRING
-
1502112-05163 SCREWSCREW
-
1609443-13029 SPRINGSPRING
-
1743261-17C00 TUBE, SPRING GUIDETUBE, SPRING GUIDE
