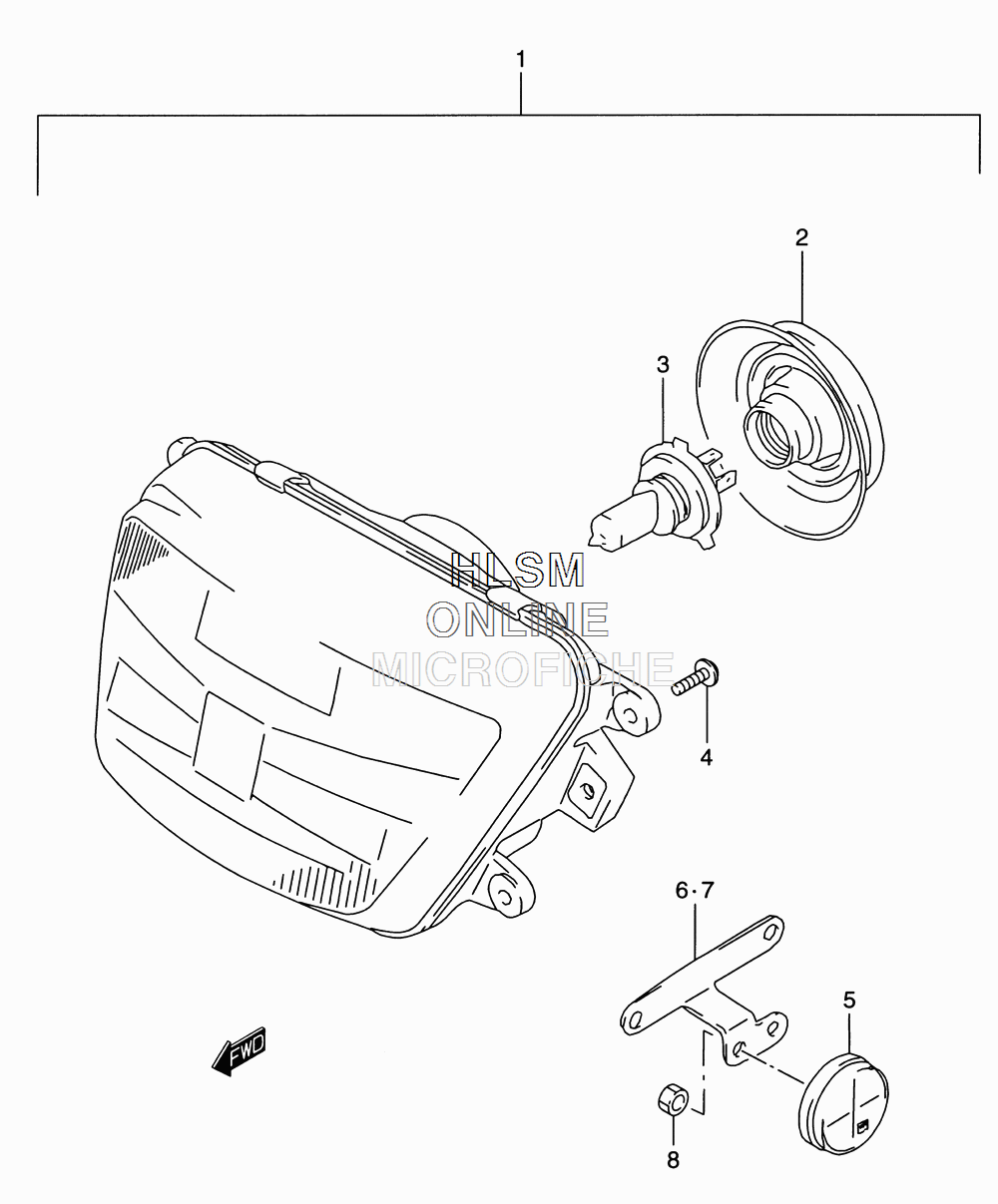

HEADLAMP для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
135100-19D11 HEADLAMP ASSY (INC. 2-3)HEADLAMP ASSY (INC. 2-3)
-
235173-26B20 COVER, SOCKETCOVER, SOCKET
-
309471-12060 BULB (12V,60/55W,H4)BULB (12V,60/55W,H4)
-
402142-05163 SCREWSCREW
-
535950-14A00 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
-
635956-40C01 BRACKET, FR SIDE RIGHT HANDBRACKET, FR SIDE RIGHT HAND
-
735957-40C01 BRACKET, FR SIDE LEFT HANDBRACKET, FR SIDE LEFT HAND
-
808310-00053 NUTNUT
