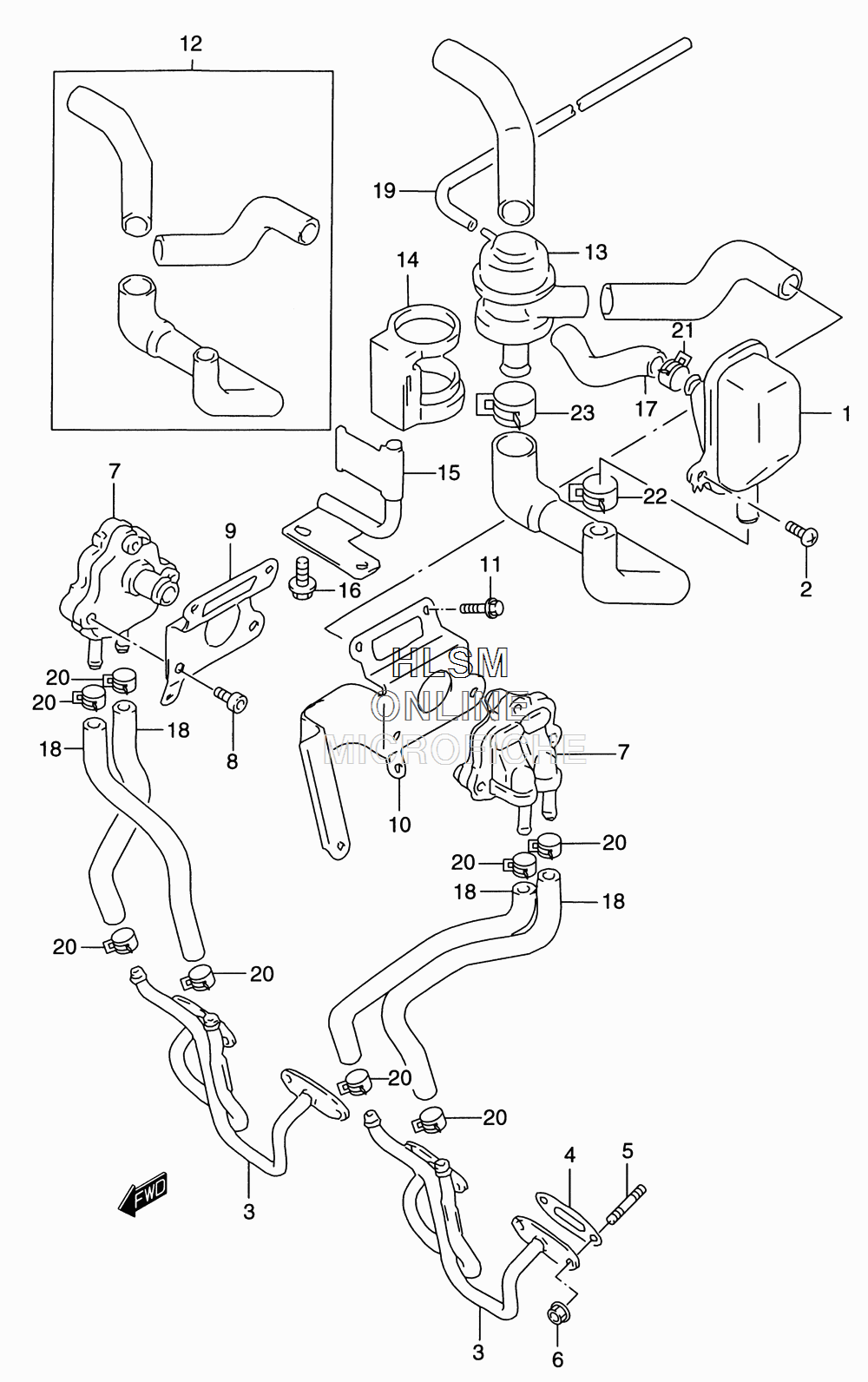

SECOND AIR (CALIF. ONLY) для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
113800-27E00 CLEANER ASSY, 2ND AIRCLEANER ASSY, 2ND AIR
-
202142-06163 SCREWSCREW
-
318430-26D00 PIPE, 2ND AIRPIPE, 2ND AIR
-
418441-17C10 GASKETGASKET
-
501421-06163 BOLT, STUDBOLT, STUD
-
608316-10063 NUTNUT
-
718450-48B00 VALVE ASSY, 2ND AIR REED (INC. 8)VALVE ASSY, 2ND AIR REED (INC. 8)
-
807130-05167 BOLTBOLT
-
918621-27E00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1018670-27E00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
1101550-06123 BOLTBOLT
-
1218420-27810 HOSE SET, 2ND AIRHOSE SET, 2ND AIR
-
1318510-46E00 VALVE ASSY, 2ND AIR SWITCHINGVALVE ASSY, 2ND AIR SWITCHING
-
1418487-01D00 CUSHIONCUSHION
-
1518650-27E00 BRACKET, 2ND AIR SW VALVEBRACKET, 2ND AIR SW VALVE
-
1601550-06123 BOLTBOLT
-
1709352-12163-600 HOSE, CLEANER INLETHOSE, CLEANER INLET
-
1809355-90145-600 HOSE 9X14X600HOSE 9X14X600
-
1909359-40701-600 HOSE,4X7X600HOSE,4X7X600
-
2009401-13417 CLIPCLIP
-
2109401-16403 CLIPCLIP
-
2209401-20405 CLIPCLIP
-
2309401-25403 CLIPCLIP
