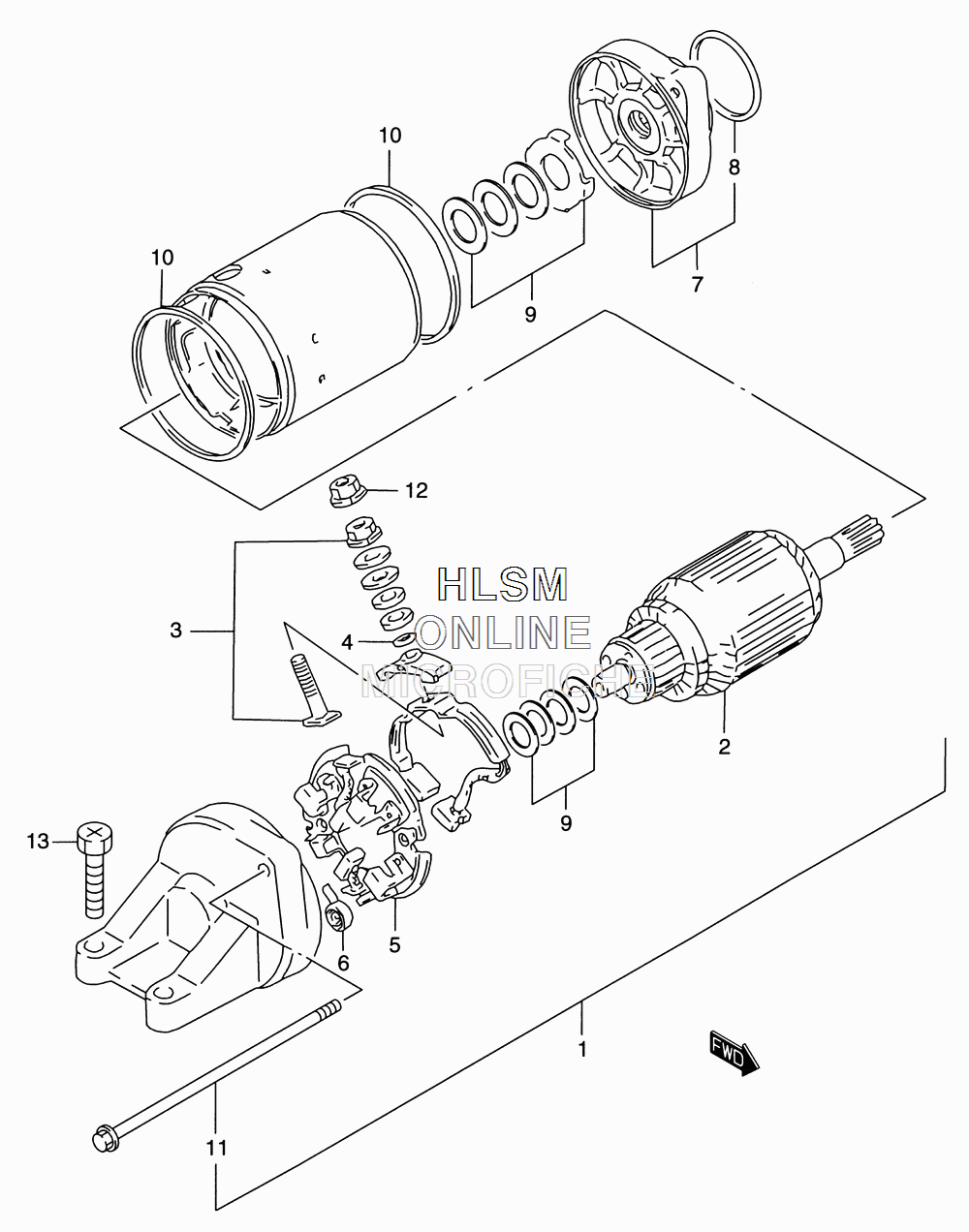

STARTING MOTOR для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
131100-26D10 MOTOR ASSY, STARTING (INC. 2-11)MOTOR ASSY, STARTING (INC. 2-11)
-
231310-40C02 ARMATUREARMATURE
-
331130-38B00 TERMINAL SET, BRUSHTERMINAL SET, BRUSH
-
431143-49040 O RINGO RING
-
531132-38B00 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
631135-38B00 SPRING, BRUSHSPRING, BRUSH
-
731150-26D00 BRACKET ASSY, FRONTBRACKET ASSY, FRONT
-
831156-48B00 O RINGO RING
-
931170-19B10 WASHER SETWASHER SET
-
1031264-32E00 O RINGO RING
-
1131280-26D00 BOLTBOLT
-
1208361-35068 NUTNUT
-
1309128-06024 BOLT (6X25)BOLT (6X25)
