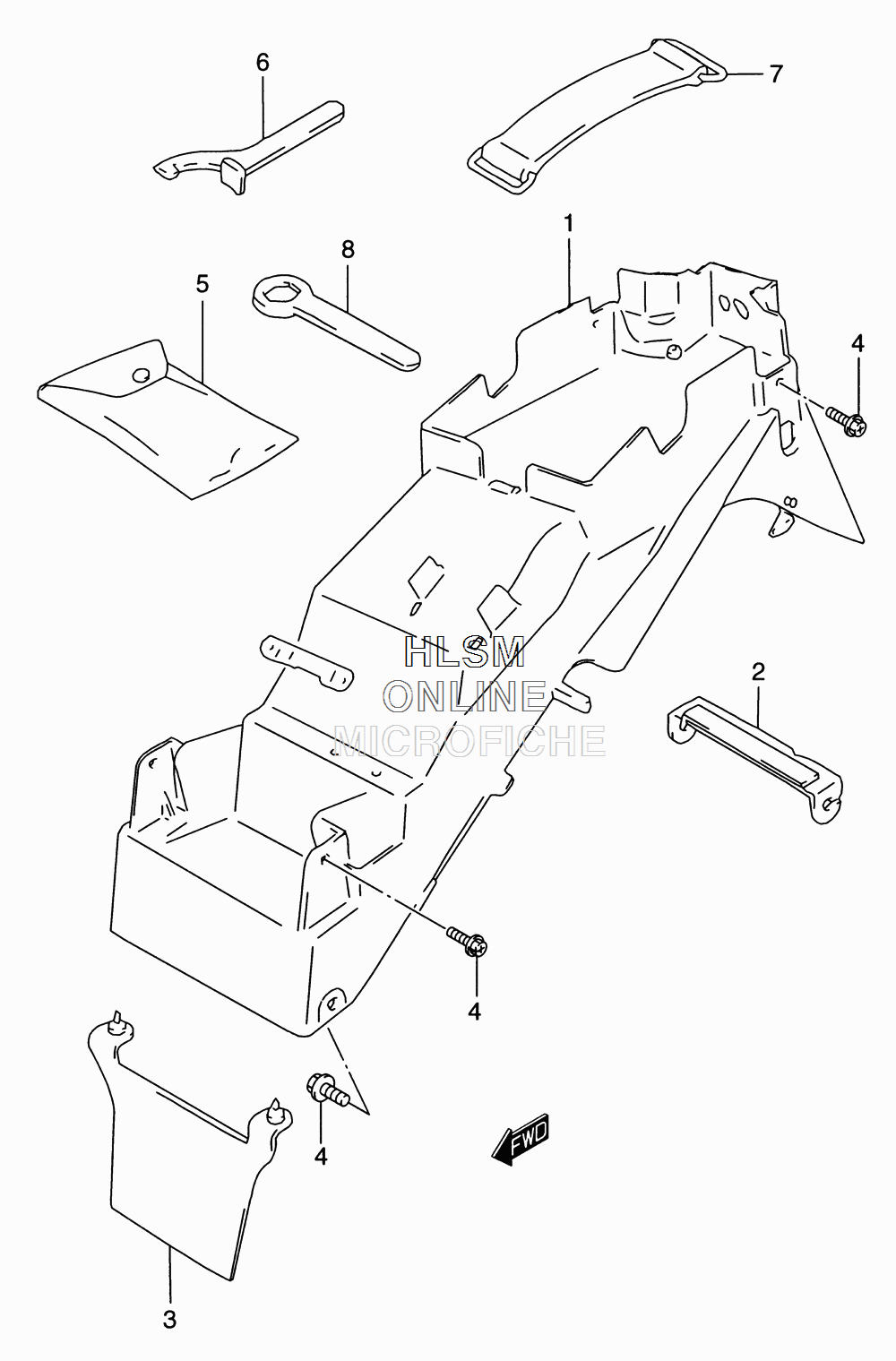

FENDER - REAR для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
163110-26E31 FENDER, REAR (ALL EXCEPT CALIF.)FENDER, REAR (ALL EXCEPT CALIF.)
-
163110-26E41 FENDER, REAR (CALIF. ONLY)FENDER, REAR (CALIF. ONLY)
-
263120-27E00 REINF, REAR FENDERREINF, REAR FENDER
-
363411-26E00 MUD GUARD, FRONTMUD GUARD, FRONT
-
409111-06066 BOLTBOLT
-
409113-06001 BOLT, 6X16BOLT, 6X16
-
509800-21017 TOOL ASSYTOOL ASSY
-
609822-00005 CLAMP WRENCHCLAMP WRENCH
-
709462-00008 BANDBAND
-
809817-00039 RING, SPANNERRING, SPANNER
