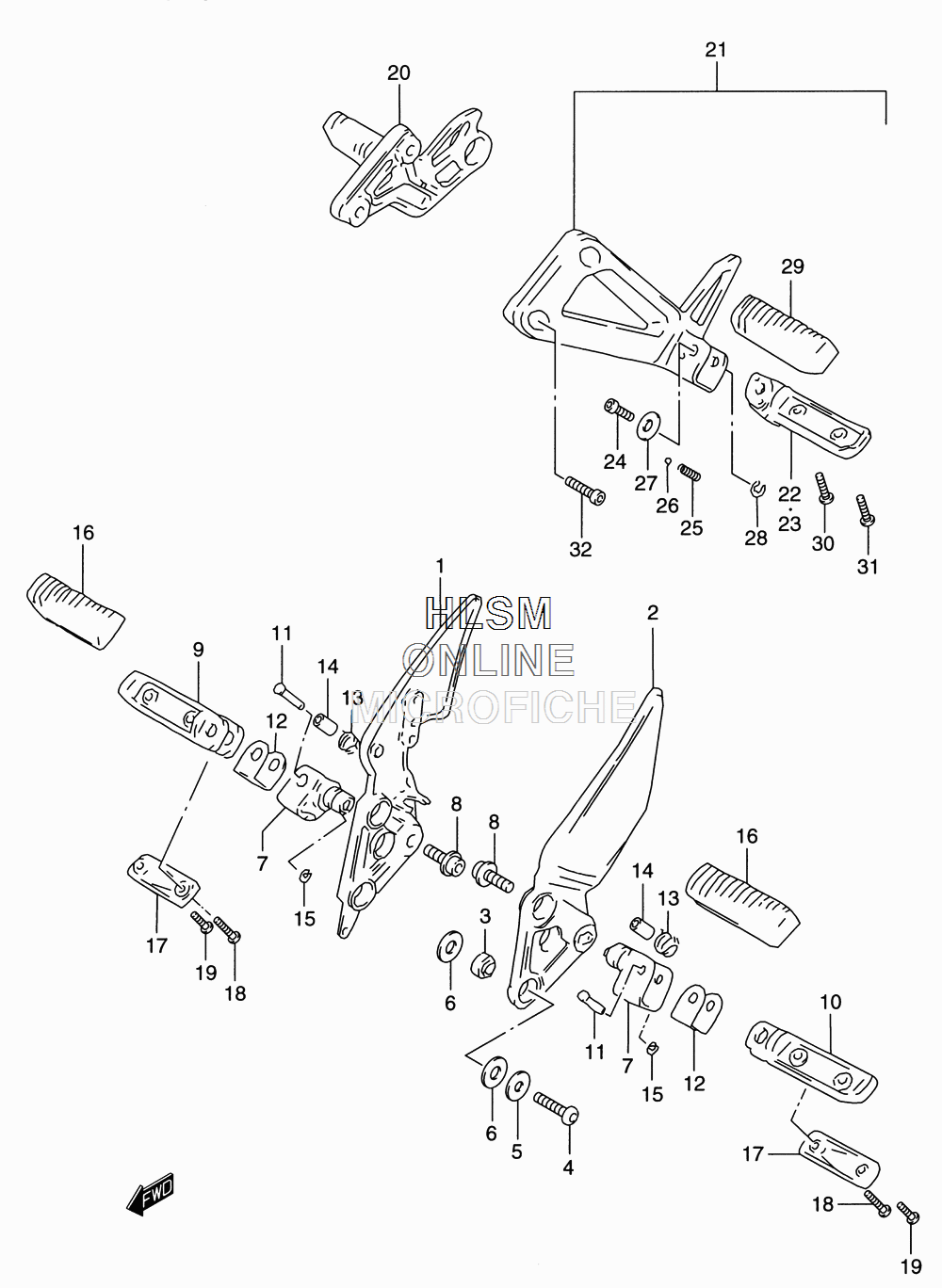

FOOTREST для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
143510-27820 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243520-27820 BRACKET, FRONT FOOTREST LEFT HAND (INC. 3)BRACKET, FRONT FOOTREST LEFT HAND (INC. 3)
-
309319-08036 BUSH (12X20X16)BUSH (12X20X16)
-
409106-08134 BOLTBOLT
-
509160-08131 WASHER (18.5X24X1.6)WASHER (18.5X24X1.6)
-
609161-12009 WASHERWASHER
-
743530-27E00 HOLDER, FOOTRESTHOLDER, FOOTREST
-
809106-10064 BOLTBOLT
-
943511-40C00 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
1043521-40C00 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
1109208-08010 PINPIN
-
1243570-46E20 CUSHION, FRONT FOOTRESTCUSHION, FRONT FOOTREST
-
1309448-18022 SPRINGSPRING
-
1409180-08149 SPACER (8.1X12X22)SPACER (8.1X12X22)
-
1508332-11063 E RINGE RING
-
1643550-40C11 RUBBER, FOOTRESTRUBBER, FOOTREST
-
1743536-31E20 BALANCER, FRONT FOOTREST LOWERBALANCER, FRONT FOOTREST LOWER
-
1802142-05353 SCREW, INNERSCREW, INNER
-
1902142-05253 SCREW, OUTERSCREW, OUTER
-
2043600-27E50 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
2143700-27E50 FOOTREST ASSY, PILLION LEFT HAND (INC. 22-31)FOOTREST ASSY, PILLION LEFT HAND (INC. 22-31)
-
2243610-40C00 BAR, PILLION FOOTREST RIGHT HANDBAR, PILLION FOOTREST RIGHT HAND
-
2343620-40C00 BAR, PILLION FOOTREST LEFT HANDBAR, PILLION FOOTREST LEFT HAND
-
2443642-40C00 BOLT, PILLION FOOTRESTBOLT, PILLION FOOTREST
-
2509440-05003 SPRINGSPRING
-
2606111-07004 STEEL BALL 7/32STEEL BALL 7/32
-
2709160-10126 WASHER (10.5X24X1.6)WASHER (10.5X24X1.6)
-
2808332-11063 E RINGE RING
-
2943550-40C11 RUBBER, FOOTRESTRUBBER, FOOTREST
-
3002142-05203 SCREW, INNERSCREW, INNER
-
3102142-05163 SCREW, OUTERSCREW, OUTER
-
3209106-08097 BOLT (8X25)BOLT (8X25)
