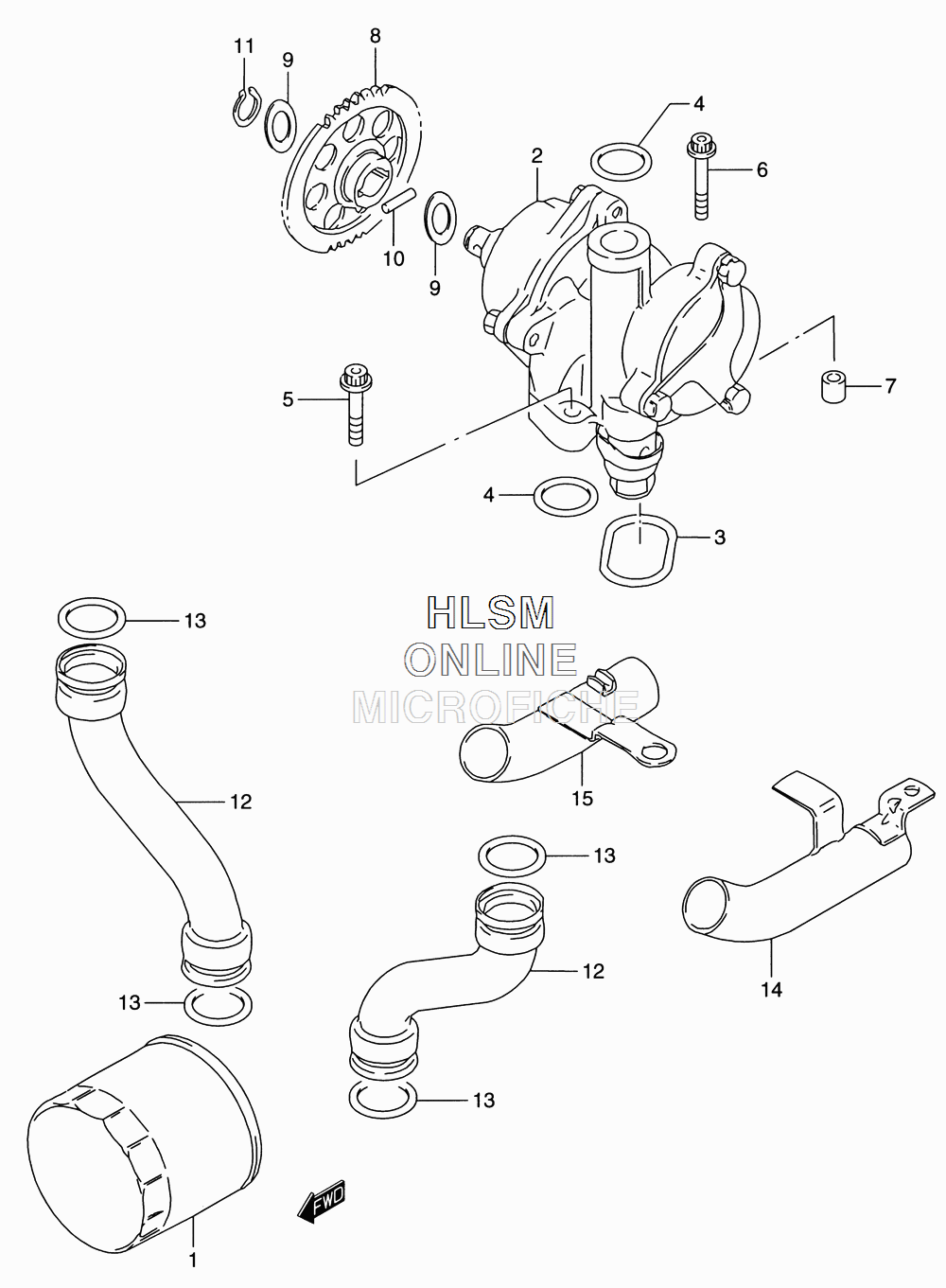

OIL PUMP для Suzuki GSF1200S Y Bandit 1200 - 2000 года выпуска
-
№АртикулНазвание
-
116510-34E00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
216400-06B20 PUMP ASSY, OILPUMP ASSY, OIL
-
316491-27A01 O RING, PUMPO RING, PUMP
-
409280-18009 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
509106-06089 BOLT (6X30)BOLT (6X30)
-
609106-06088 BOLT (6X35)BOLT (6X35)
-
704211-09129 PIN 9 X 12PIN 9 X 12
-
816332-19C00 GEAR, PUMP DRIVEN (NT:37)GEAR, PUMP DRIVEN (NT:37)
-
908221-12205 SHIMSHIM
-
1009261-05006 PINPIN
-
1108331-31126 CIRCLIPCIRCLIP
-
1216481-48B01 PIPE, OUTLETPIPE, OUTLET
-
1309280-22016 O RING (D:3.7,ID:21.7)O RING (D:3.7,ID:21.7)
-
1416530-27A02 PIPE, OUTLET UNDER LEFT HANDPIPE, OUTLET UNDER LEFT HAND
-
1516540-27A02 PIPE, OUTLET UNDER RIGHT HANDPIPE, OUTLET UNDER RIGHT HAND
