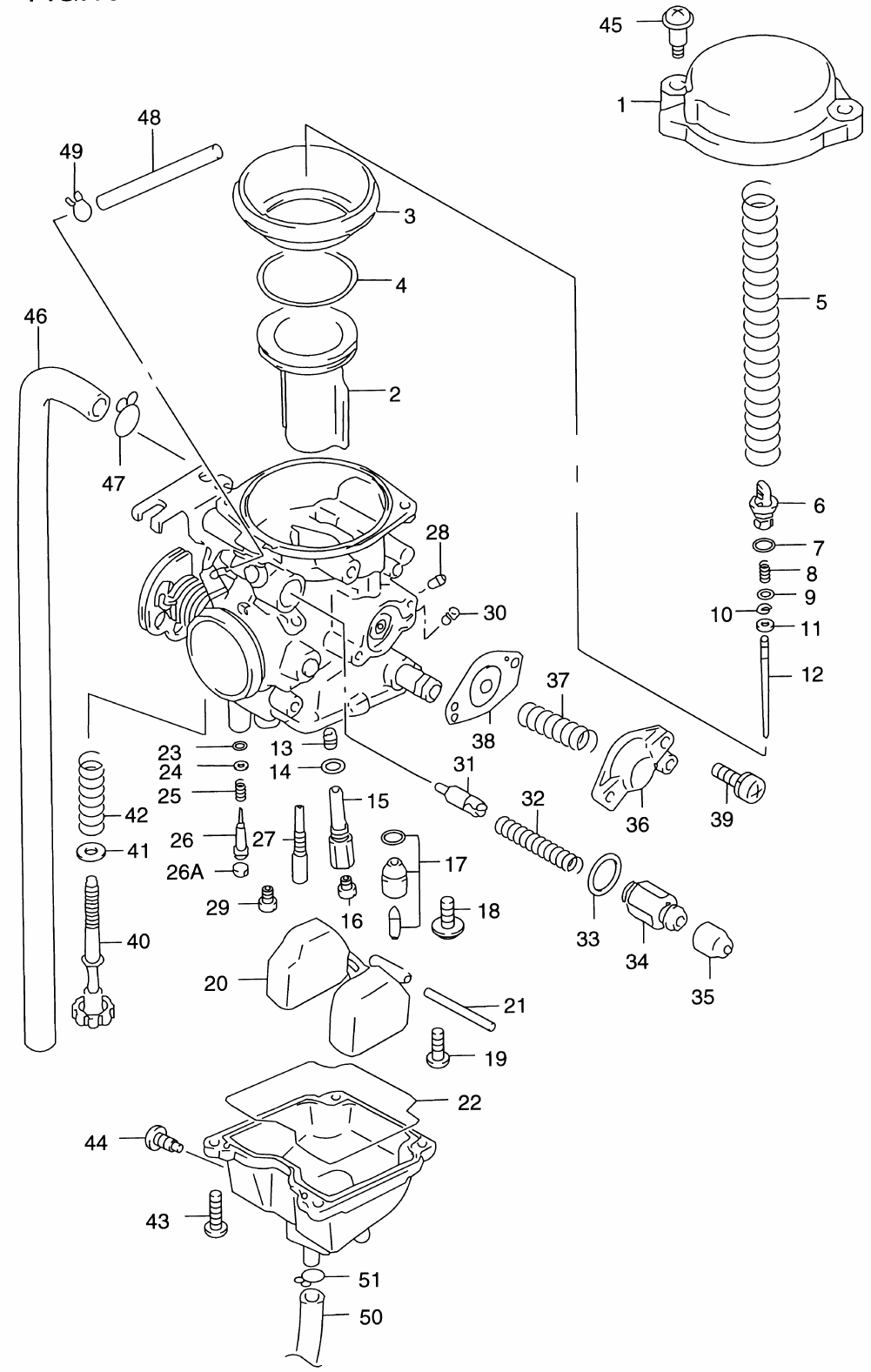

CARBURETOR ASSY. для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
1A13200-13F30 CARBURETOR ASSY. (EXCEPT CALIF.)CARBURETOR ASSY. (EXCEPT CALIF.)
-
1A13200-13F40 CARBURETOR ASSY. (CALIF. ONLY)CARBURETOR ASSY. (CALIF. ONLY)
-
113502-19E00 ...DIAPHRAGM COVER...DIAPHRAGM COVER
-
213501-13F00 ...VALVE, PISTON...VALVE, PISTON
-
313507-19E00 ...DIAPHRAGM...DIAPHRAGM
-
413504-16E00 ...RING...RING
-
513573-04F00 ...SPRING...SPRING
-
613418-33E00 ...HOLDER...HOLDER
-
709280-05004 ...O-RING (D:1.9,ID:4.8)...O-RING (D:1.9,ID:4.8)
-
813481-04F00 ...SPRING...SPRING
-
913382-19E00 ...WASHER...WASHER
-
1013394-17E60 ...E-RING, MULTIPLE JET NOZZLE...E-RING, MULTIPLE JET NOZZLE
-
1113387-33E00 ...RING...RING
-
1213383-13F30 ...NEEDLE, JET (5C65-1)...NEEDLE, JET (5C65-1)
-
1309494-00921 ...JET, NEEDLE (P-0M)...JET, NEEDLE (P-0M)
-
1413246-43010 ...O-RING...O-RING
-
1513385-13F00 ...HOLDER, JET...HOLDER, JET
-
1609491-24026 ...JET, MAIN (120)...JET, MAIN (120)
-
1713370-04F00 ...VALVE ASSY., NEEDLE...VALVE ASSY., NEEDLE
-
1813602-05A10 ...SCREW...SCREW
-
1902112-04083 ...SCREW...SCREW
-
2013250-04F00 ...FLOAT ASSY....FLOAT ASSY.
-
2113254-01010 ...PIN, FLOAT...PIN, FLOAT
-
2213258-04F00 ...GASKET...GASKET
-
2313295-29900 ...O-RING...O-RING
-
2413291-29900 ...WASHER...WASHER
-
2513268-48700 ...SPRING...SPRING
-
2613279-13F00 ...ADJUSTER (1 1/2)...ADJUSTER (1 1/2)
-
26A13281-05A00 ...PLUG...PLUG
-
2709492-17016 ...JET...JET
-
2809492-87002 ...JET, MAIN (87.5)...JET, MAIN (87.5)
-
2909491-52003 ...JET, MAIN (52.5)...JET, MAIN (52.5)
-
3009493-24013 ...JET, PILOT AIR (120)...JET, PILOT AIR (120)
-
3113411-24D00 ...PLUNGER...PLUNGER
-
3213417-07F00 ...SPRING...SPRING
-
3313278-47090 ...O-RING...O-RING
-
3413418-07F00 ...HOLDER, GUIDE...HOLDER, GUIDE
-
3513681-04010 ...CAP, CARBURETOR...CAP, CARBURETOR
-
3613502-10F00 ...COVER ASSY....COVER ASSY.
-
3713271-13F00 ...SPRING...SPRING
-
3813480-13F00 ...DIAPHRAGM ASSY....DIAPHRAGM ASSY.
-
3913601-04148 ...SCREW...SCREW
-
4013267-13F00 ...ADJUST SCREW ASSY....ADJUST SCREW ASSY.
-
4113285-07F00 ...PACKING...PACKING
-
4213342-82370 ...SPRING...SPRING
-
4302112-04107 ...SCREW...SCREW
-
4413247-13A00 ...SCREW, DRAIN...SCREW, DRAIN
-
4513247-33E00 ...SCREW...SCREW
-
4613686-13F00 ...HOSE...HOSE
-
4713671-06A10 ...CLIP...CLIP
-
4813686-13F10 ...HOSE...HOSE
-
4913671-13F00 ...CLIP...CLIP
-
5013686-13F20 ...HOSE...HOSE
-
5109401-08410 ...CLIP...CLIP
