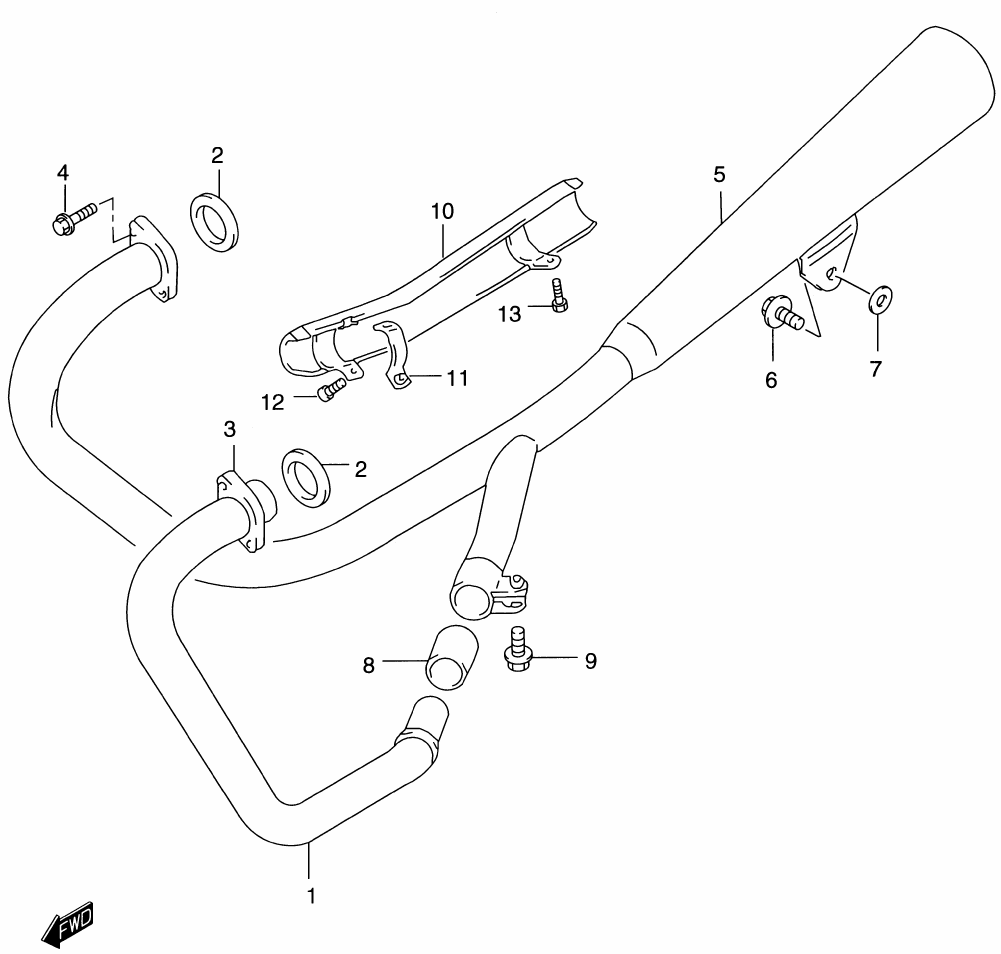

MUFFLER для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
114160-13F00 PIPE, EXHAUST (LEFT)PIPE, EXHAUST (LEFT)
-
214181-37D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
314182-37D00 CLAMP, EXHAUST PIPE (LEFT)CLAMP, EXHAUST PIPE (LEFT)
-
409103-06203 BOLTBOLT
-
514305-13F00-H01 MUFFLERMUFFLER
-
601580-10303 BOLTBOLT
-
814771-19B00 CONNECTOR, MUFFLERCONNECTOR, MUFFLER
-
901550-08353 BOLTBOLT
-
1014780-13F00 COVER, MUFFLERCOVER, MUFFLER
-
1114785-38301 CLAMP, MUFFLER COVERCLAMP, MUFFLER COVER
-
1202112-05163 SCREWSCREW
-
1302112-76103 SCREWSCREW
