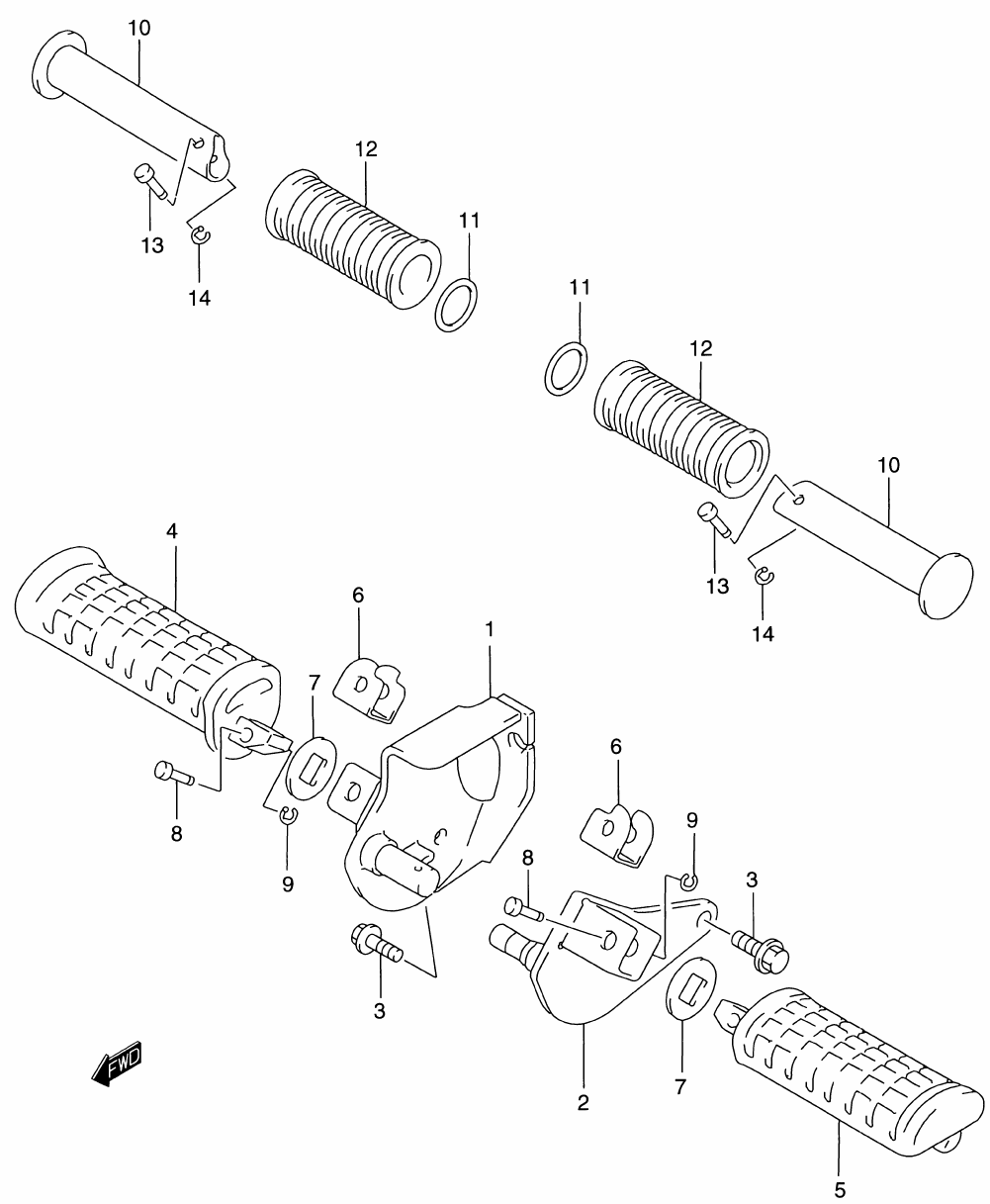

FOOTREST для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
143510-13F00 BRACKET, FOOTREST (FRONT) (RIGHT)BRACKET, FOOTREST (FRONT) (RIGHT)
-
243520-13F00 BRACKET, FOOTREST (FRONT) (LEFT)BRACKET, FOOTREST (FRONT) (LEFT)
-
301550-08207 BOLTBOLT
-
443550-04F00 RUBBER, FOOTREST (FRONT) (RIGHT)RUBBER, FOOTREST (FRONT) (RIGHT)
-
543560-04F00 RUBBER, FOOTREST (FRONT) (LEFT)RUBBER, FOOTREST (FRONT) (LEFT)
-
643570-04F00 CUSHION, FOOTREST (FRONT)CUSHION, FOOTREST (FRONT)
-
743631-34A01 WASHER, FOOTREST RUBBERWASHER, FOOTREST RUBBER
-
809208-06005 PINPIN
-
908332-11043 E-RINGE-RING
-
1043610-38300 BAR, PILLION FOOTRESTBAR, PILLION FOOTREST
-
1109160-19024 WASHER (19.5X32X2.0)WASHER (19.5X32X2.0)
-
1243612-33200 RUBBER, PILLION FOOTRESTRUBBER, PILLION FOOTREST
-
1343636-25D00 PIN, PILLION FOOTRESTPIN, PILLION FOOTREST
-
1408332-11043 E-RINGE-RING
