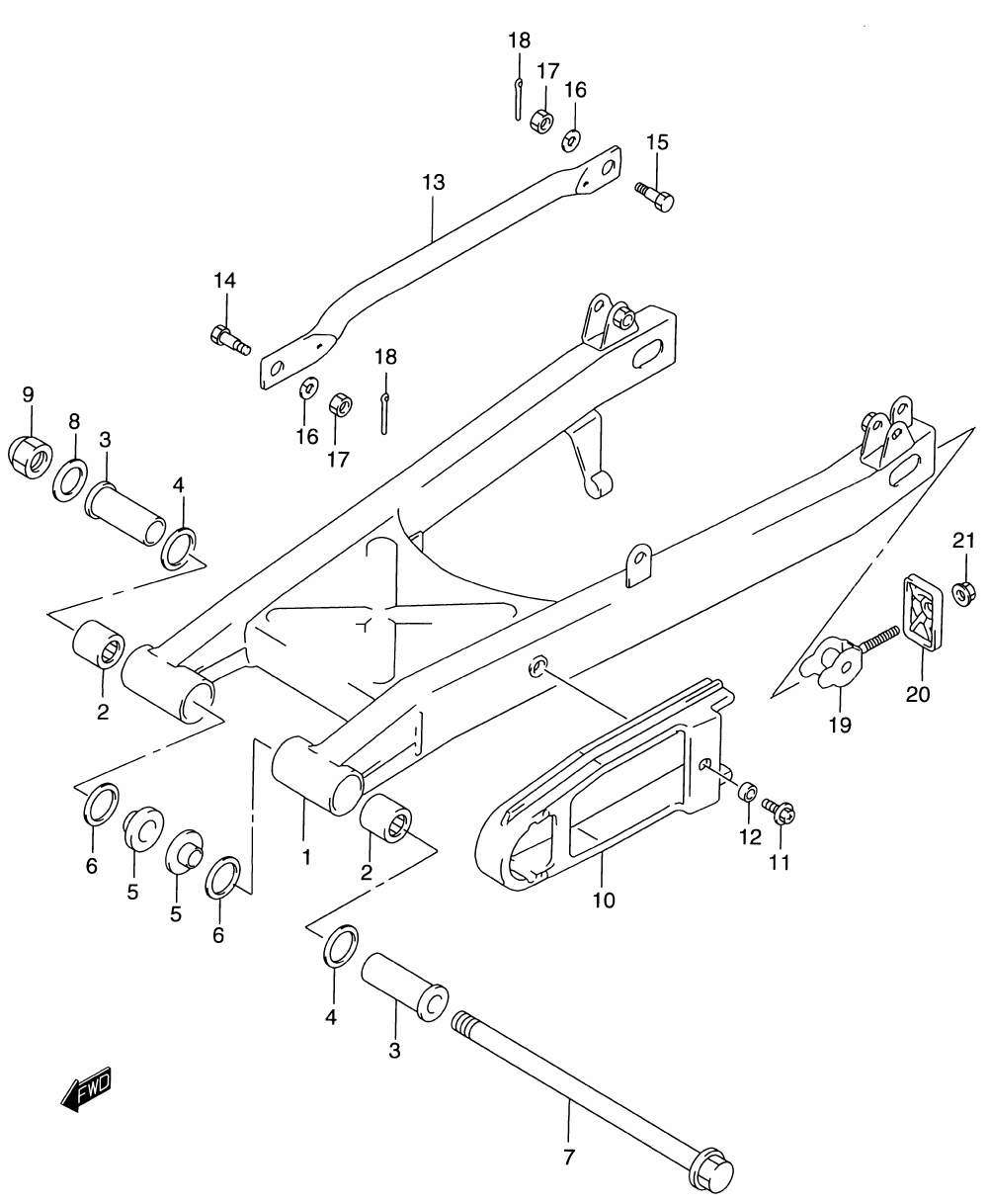

SUSPENSION - REAR SWING ARM для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
161000-13F10 SWINGING ARM ASSY. (REAR)SWINGING ARM ASSY. (REAR)
-
209263-20041 ...BEARING (20X27X20)...BEARING (20X27X20)
-
361251-13F00 SPACER, PIVOT (OUTER)SPACER, PIVOT (OUTER)
-
409286-20001 SEAL, OIL (20X27X5)SEAL, OIL (20X27X5)
-
561252-13F01 SPACER, PIVOT (INNER)SPACER, PIVOT (INNER)
-
609286-20001 SEAL, OIL (20X27X5)SEAL, OIL (20X27X5)
-
761211-38301 SHAFT, PIVOTSHAFT, PIVOT
-
808322-01143 WASHERWASHER
-
908319-21148 NUTNUT
-
1061273-12F00 BUFFER, CHAIN TOUCH DIFFENSEBUFFER, CHAIN TOUCH DIFFENSE
-
1109116-06152 BOLT (6X20)BOLT (6X20)
-
1209180-06255 SPACER (6.5X9X3.8)SPACER (6.5X9X3.8)
-
1364311-12F00-019 TORQUE LINK (REAR) (BLACK)TORQUE LINK (REAR) (BLACK)
-
1409111-08012 BOLT, FRONT (8X22.5)BOLT, FRONT (8X22.5)
-
1509111-08013 BOLT, REAR (8X26.5)BOLT, REAR (8X26.5)
-
1609162-08008 WASHER, LOCKWASHER, LOCK
-
1709140-08008 NUTNUT
-
1804111-20208 PIN, COTTERPIN, COTTER
-
1961410-12F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2061421-38200 PLATE, CHAIN ADJUSTERPLATE, CHAIN ADJUSTER
-
2108319-31087 NUTNUT
