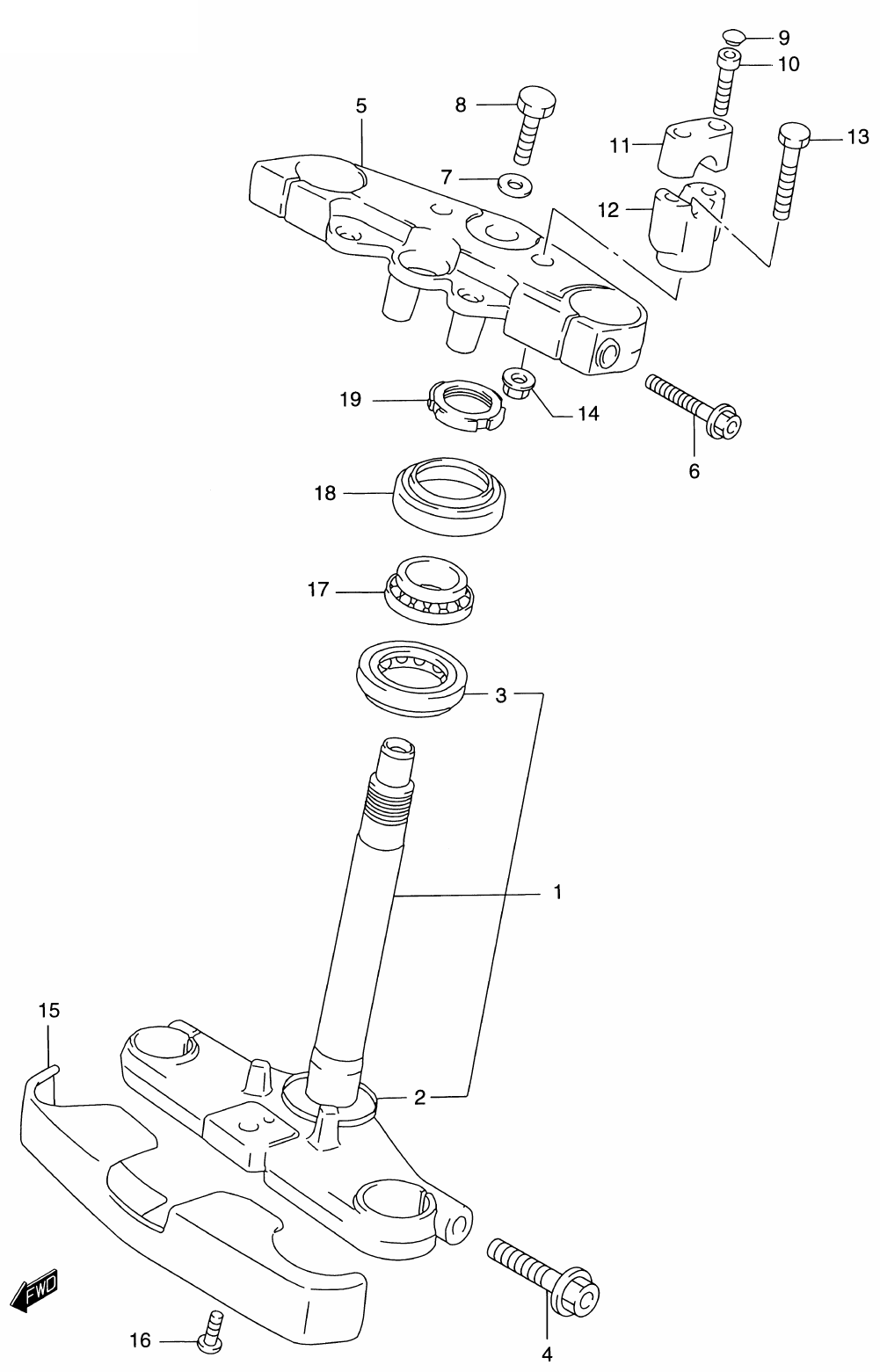

STEERING STEM для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
151410-12F00 STEM, STEERINGSTEM, STEERING
-
251644-12C00 ...SEAL (LOWER)...SEAL (LOWER)
-
309267-30010 ...BEARING (30X55X17)...BEARING (30X55X17)
-
401550-10407 BOLT (10X40)BOLT (10X40)
-
551311-12F00 HEAD, STEERING STEMHEAD, STEERING STEM
-
601550-08457 BOLT (8X45)BOLT (8X45)
-
751356-43530 WASHERWASHER
-
851352-43530 BOLTBOLT
-
909250-06011 CAPCAP
-
1007130-08257 BOLT (8X25)BOLT (8X25)
-
1156211-12F00 HOLDER, HANDLE (UPPER)HOLDER, HANDLE (UPPER)
-
1256221-12F00 HOLDER, HANDLE (LOWER)HOLDER, HANDLE (LOWER)
-
1351451-27431 BOLT, HOLDERBOLT, HOLDER
-
1408319-31107 NUTNUT
-
1551871-12F00 COVER, FORK (UNDER) (FRONT)COVER, FORK (UNDER) (FRONT)
-
1609139-06088 SCREW (6X16)SCREW (6X16)
-
1709267-25009 BEARING (25X47X15)BEARING (25X47X15)
-
1851643-40502 SEAL, DUST (UPPER)SEAL, DUST (UPPER)
-
1951631-28000 NUT, STEMNUT, STEM
