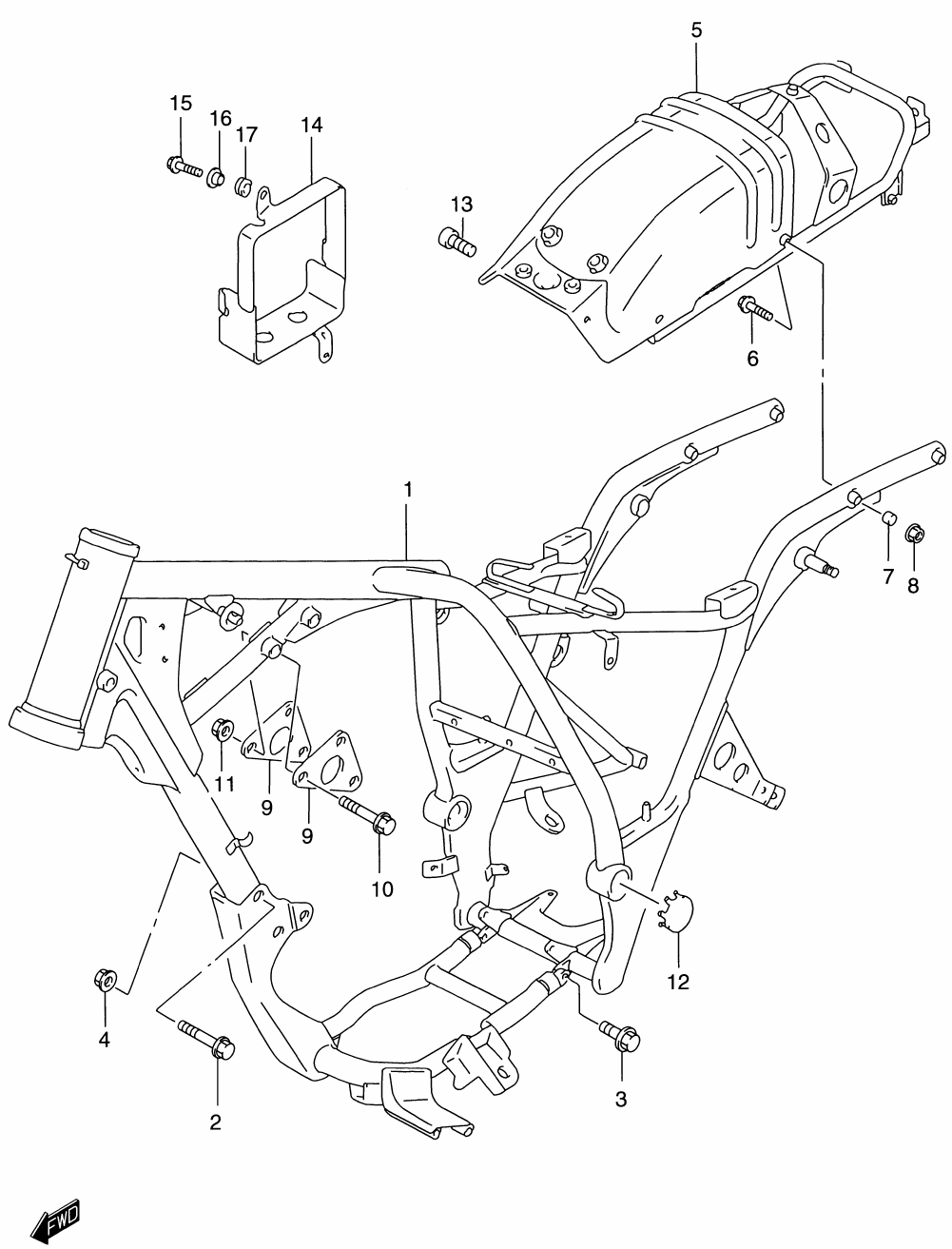

FRAME для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
141100-13F01-019 FRAME (BLACK)FRAME (BLACK)
-
201550-08603 BOLTBOLT
-
301550-08253 BOLTBOLT
-
408316-10083 NUT, FRONTNUT, FRONT
-
541580-12F00 BRACE, FRAME (REAR)BRACE, FRAME (REAR)
-
601550-08553 BOLTBOLT
-
709180-08208 SPACERSPACER
-
808313-20087 NUT, BRACENUT, BRACE
-
941991-13F00 PLATE, ENGINE MOUNT UPPERPLATE, ENGINE MOUNT UPPER
-
1009103-08289 BOLT (8X50)BOLT (8X50)
-
1108319-31087 NUTNUT
-
1261222-38A01 CAP, PIVOTCAP, PIVOT
-
1309106-06061 BOLTBOLT
-
1441540-12F00 HOLDER, BATTERYHOLDER, BATTERY
-
1501550-06163 BOLTBOLT
-
1609169-06065 WASHERWASHER
-
1709320-08021 CUSHION (8.5X20X8)CUSHION (8.5X20X8)
