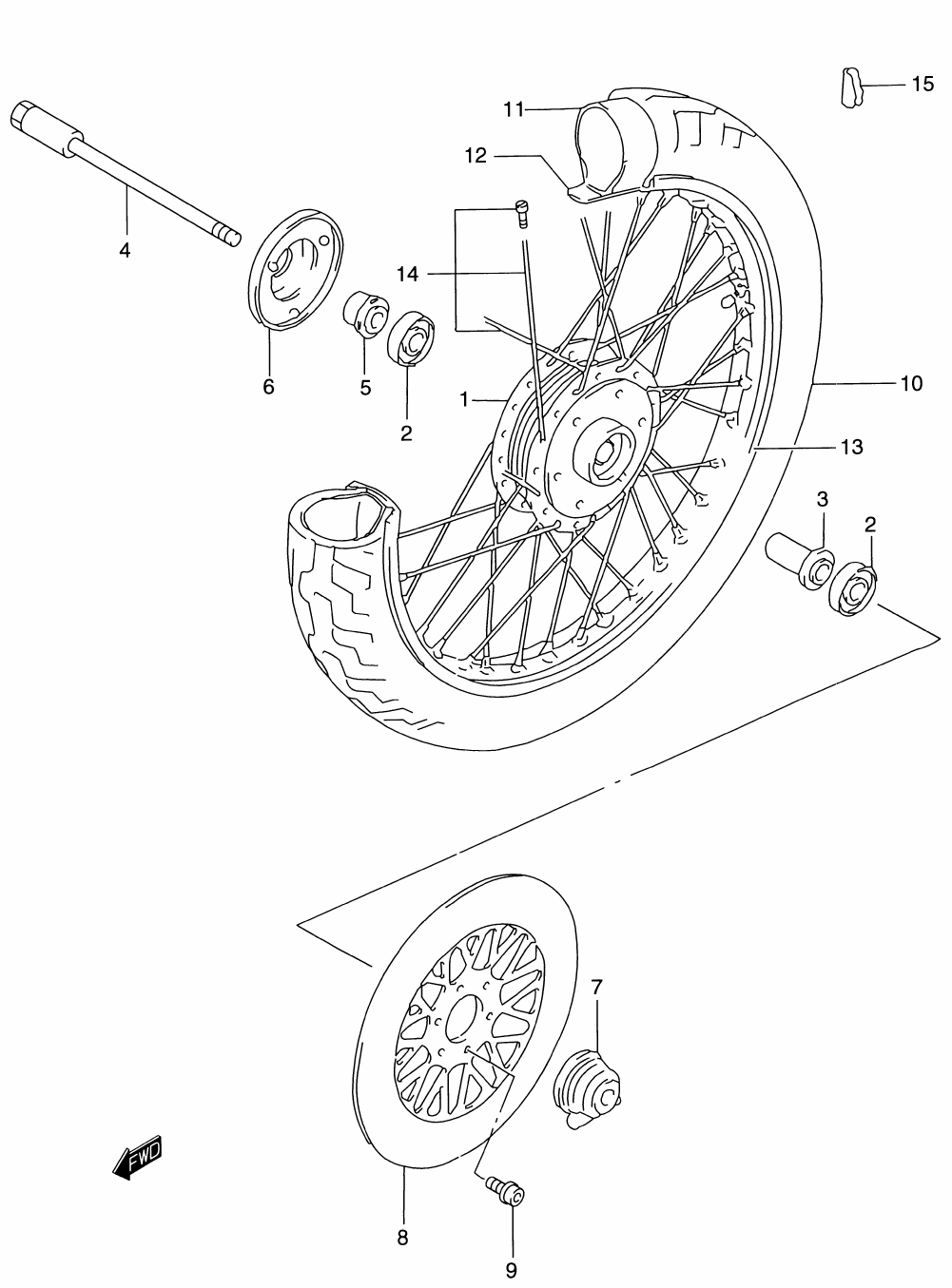

WHEEL - FRONT для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
154111-47021 HUB, WHEEL (FRONT)HUB, WHEEL (FRONT)
-
208123-63027 BEARINGBEARING
-
354730-18400 SPACER, BEARINGSPACER, BEARING
-
454711-12F00 AXLE (FRONT)AXLE (FRONT)
-
554740-18410 SPACER, BEARING (RIGHT)SPACER, BEARING (RIGHT)
-
654871-45000 COVER, HUB (RIGHT)COVER, HUB (RIGHT)
-
754600-12F00 BOX ASSY. SPEEDOMETER GEARBOX ASSY. SPEEDOMETER GEAR
-
859221-12F00 DISC, BRAKE (FRONT) (LEFT)DISC, BRAKE (FRONT) (LEFT)
-
909106-08131 BOLT (8X30)BOLT (8X30)
-
1055100-12F00 TIRE (FRONT) (110/90-16) (DUNLOP)TIRE (FRONT) (110/90-16) (DUNLOP)
-
1155200-12F00 TUBE ASSY. WHEEL (INNER)TUBE ASSY. WHEEL (INNER)
-
1255261-12F00 PROTECTOR, TUBE (INNER)PROTECTOR, TUBE (INNER)
-
1355311-12F00 RIM, WHEEL (FRONT) (16XMT2.50)RIM, WHEEL (FRONT) (16XMT2.50)
-
1455320-12F00 SPOKE SET, WHEEL (FRONT)SPOKE SET, WHEEL (FRONT)
-
15-155411-11000 BALANCER (20G)BALANCER (20G)
-
15-255412-11000 BALANCER (30G)BALANCER (30G)
