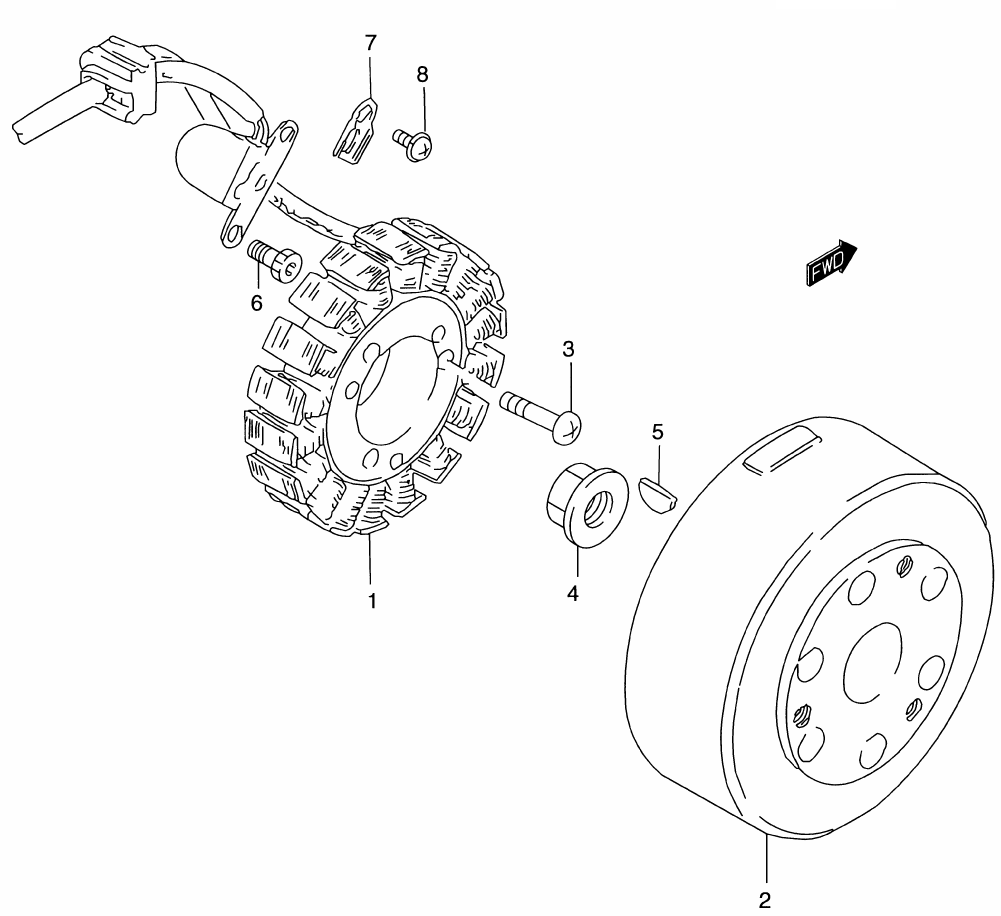

MAGNETO для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
132101-13F00 STATOR ASSY.STATOR ASSY.
-
232102-13F01 ROTOR ASSY.ROTOR ASSY.
-
302112-06253 SCREWSCREW
-
431792-49200 NUT, GENERATORNUT, GENERATOR
-
508341-31039 KEYKEY
-
607130-05123 BOLTBOLT
-
731497-45000 CLAMP, GENERATOR LEAD WIRECLAMP, GENERATOR LEAD WIRE
-
802142-35083 SCREWSCREW
