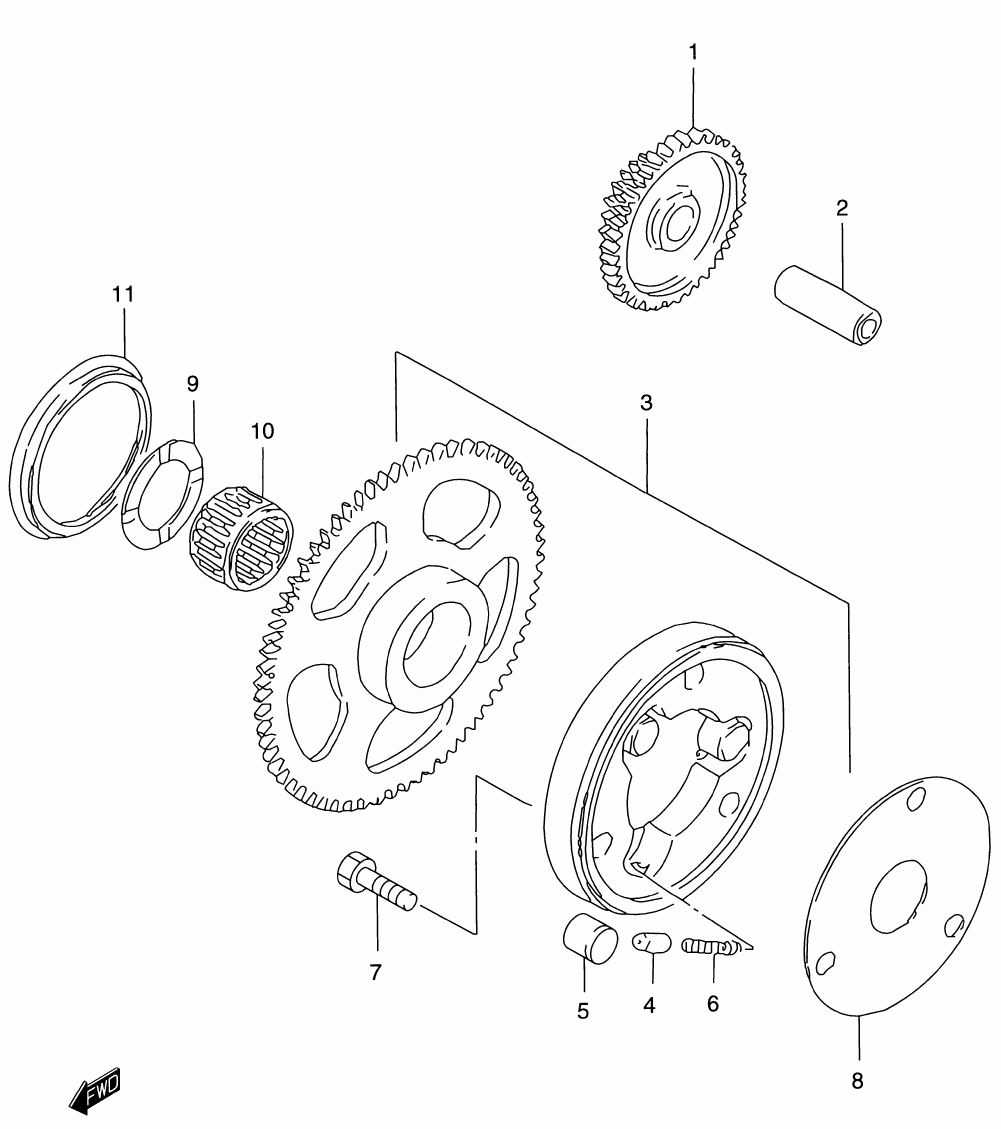

STARTER CLUTCH для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
112611-38300 GEAR, STARTER IDLER (NT:19/51)GEAR, STARTER IDLER (NT:19/51)
-
209206-13007 PINPIN
-
312600-38813 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
412633-31000 ...PIECE, PUSH...PIECE, PUSH
-
509261-14001 ...ROLLER...ROLLER
-
609440-04015 ...SPRING...SPRING
-
701500-08203 BOLTBOLT
-
812649-49300 SHIM, STARTER CLUTCH HUBSHIM, STARTER CLUTCH HUB
-
909160-27005 WASHER (27X40X2.5)WASHER (27X40X2.5)
-
1009263-27004 BEARINGBEARING
-
1109289-52002 OIL SEALOIL SEAL
