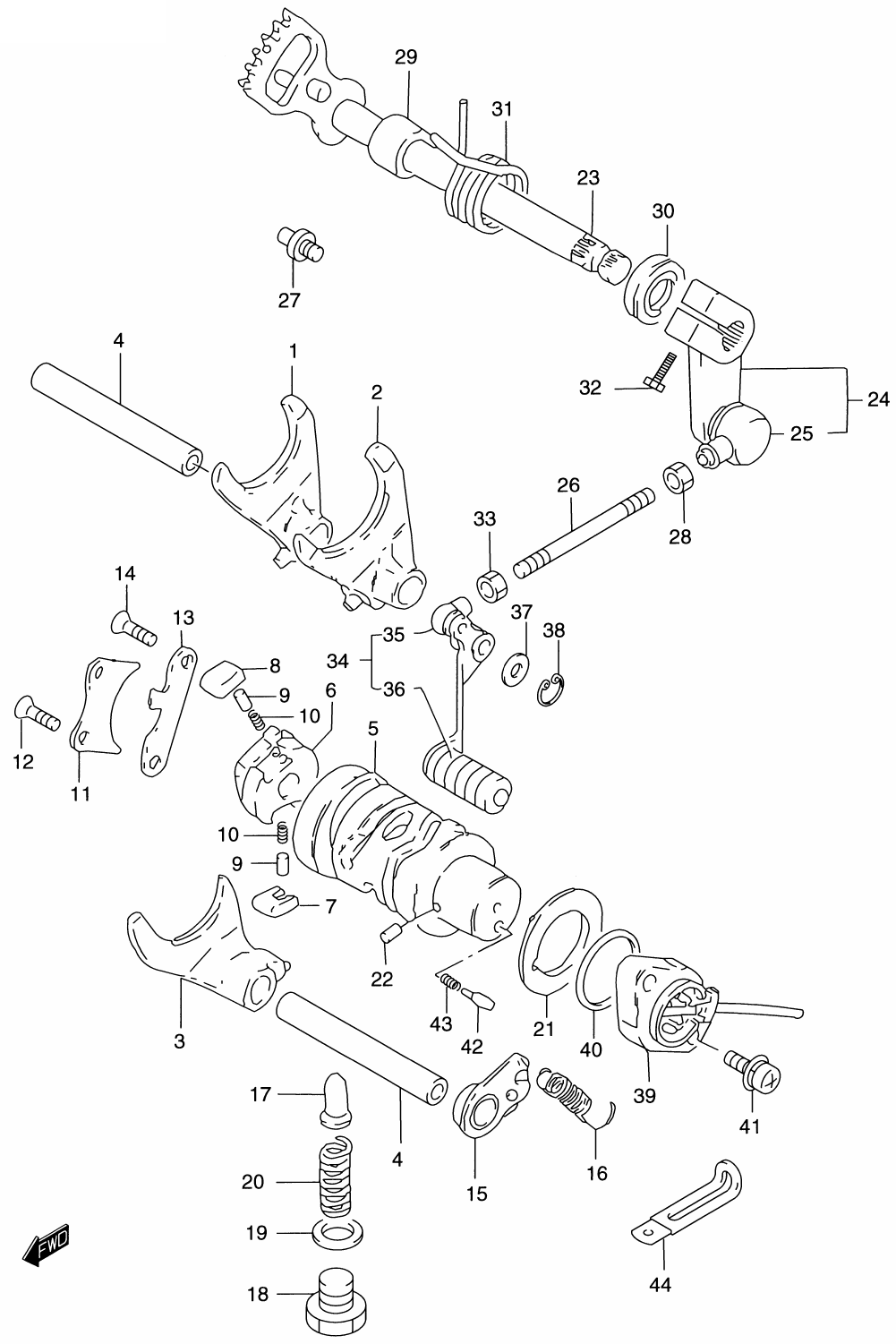

GEAR SHIFTING для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
125211-32402 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-32403 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-13F00 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-14331 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
525310-13F00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
625322-31310 GEAR, GEAR SHIFT CAM DRIVENGEAR, GEAR SHIFT CAM DRIVEN
-
725323-34201 POLE, GEAR SHIFT NO.1POLE, GEAR SHIFT NO.1
-
825324-34201 POLE, GEAR SHIFT NO.2POLE, GEAR SHIFT NO.2
-
909261-05003 ROLLER (5X8)ROLLER (5X8)
-
1009440-04003 SPRINGSPRING
-
1125331-38201 LIFTER, GEAR SHIFT POLELIFTER, GEAR SHIFT POLE
-
1202122-06123 SCREWSCREW
-
1325341-38200 GUIDE, GEAR SHIFT CAMGUIDE, GEAR SHIFT CAM
-
1402122-06123 SCREWSCREW
-
1525350-34000 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1609443-08026 SPRINGSPRING
-
1725351-30010 STOPPER, GEAR SHIFT CAM NO.2STOPPER, GEAR SHIFT CAM NO.2
-
1809247-14012 PLUGPLUG
-
1909168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
2009440-11026 SPRINGSPRING
-
2125381-13F00 PLATE, GEAR SHIFT CAM STOPPERPLATE, GEAR SHIFT CAM STOPPER
-
2204221-04069 PINPIN
-
2325510-38200 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2425520-22A00 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2525526-47000 ...COVER, DUST...COVER, DUST
-
2625525-13F00 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
2725671-01000 STOPPER, RETURN SPRINGSTOPPER, RETURN SPRING
-
2809140-06011 NUTNUT
-
2909180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
3009285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
3109444-26004 SPRINGSPRING
-
3201500-06207 BOLTBOLT
-
3308310-00067 NUTNUT
-
3425600-13F00 LEVER ASSY. GEAR SHIFTLEVER ASSY. GEAR SHIFT
-
3525526-47000 ...COVER, DUST...COVER, DUST
-
3625652-20C00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3709160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3808331-31126 CIRCLIPCIRCLIP
-
3937720-47D00 BASE ASSY. TERMINALBASE ASSY. TERMINAL
-
4009280-26003 O-RING (D:2.4,ID:26.2)O-RING (D:2.4,ID:26.2)
-
4102112-75203 SCREWSCREW
-
4209209-05011 CONTACTCONTACT
-
4309440-04010 SPRINGSPRING
-
4409404-06432 CLAMP (L:80)CLAMP (L:80)
