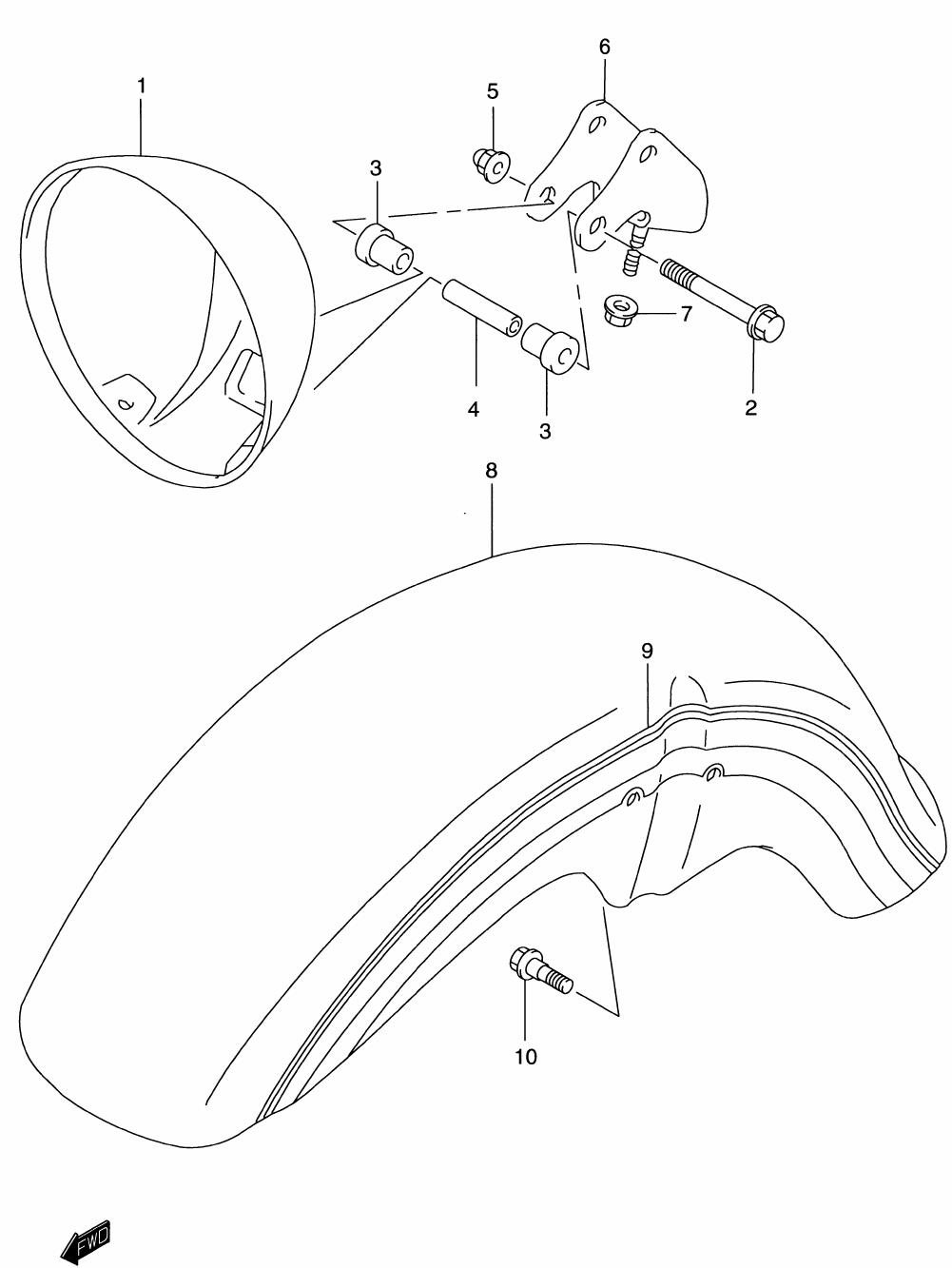

HEADLAMP HOUSING W/ FENDER для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
151811-12F00 HOUSING, HEADLAMPHOUSING, HEADLAMP
-
201547-06507 BOLTBOLT
-
351827-12F00 CUSHION, HEADLAMP HOUSINGCUSHION, HEADLAMP HOUSING
-
409180-06279 SPACERSPACER
-
508313-20067 NUTNUT
-
651850-12F01 BRACKET, HEADLAMP HOUSINGBRACKET, HEADLAMP HOUSING
-
708319-31103 NUTNUT
-
853110-12F30-Y98 FENDER SET (FRONT) (Y98 - GREEN)FENDER SET (FRONT) (Y98 - GREEN)
-
968150-12F20-N6D ...TAPE SET, FENDER (FRONT) (N6D - GREEN/GRAY/GOLD) (FOR Y98 - GREEN)...TAPE SET, FENDER (FRONT) (N6D - GREEN/GRAY/GOLD) (FOR Y98 - GREEN)
-
1009111-06066 BOLTBOLT
