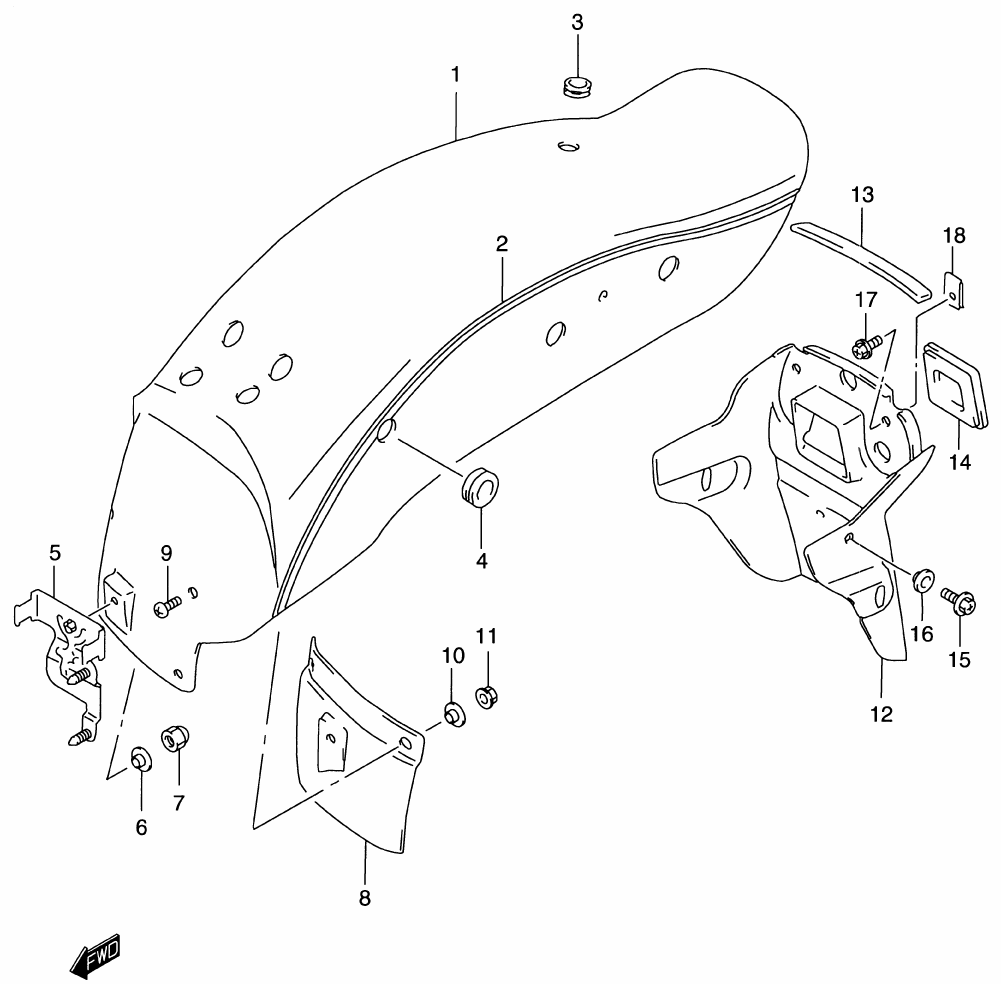

FENDER - REAR для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
163110-12F20-Y98 FENDER (REAR) (Y98 - GREEN)FENDER (REAR) (Y98 - GREEN)
-
268170-12F20-N6D ...TAPE SET, FENDER (REAR) (N6D - GREEN/GRAY/GOLD) (FOR Y98 - GREEN)...TAPE SET, FENDER (REAR) (N6D - GREEN/GRAY/GOLD) (FOR Y98 - GREEN)
-
309320-13015 CUSHION (UPPER)CUSHION (UPPER)
-
463118-12F00 CUSHION (REAR)CUSHION (REAR)
-
563140-13F00 BRACKET, FENDER (REAR)BRACKET, FENDER (REAR)
-
609169-06071 WASHERWASHER
-
708313-10063 NUTNUT
-
863331-12F00 MUD GUARD, FENDER (REAR)MUD GUARD, FENDER (REAR)
-
902142-06163 SCREWSCREW
-
1009169-06071 WASHERWASHER
-
1108316-10063 NUTNUT
-
1263311-12F00 EXTENSION, FENDER (REAR)EXTENSION, FENDER (REAR)
-
1363312-48E00 CUSHIONCUSHION
-
1463191-48E00 CAPCAP
-
1502162-06123 BOLT, SIDEBOLT, SIDE
-
1609169-06071 WASHERWASHER
-
1702162-06163 BOLT (REAR)BOLT (REAR)
-
1847153-19C01 NUTNUT
