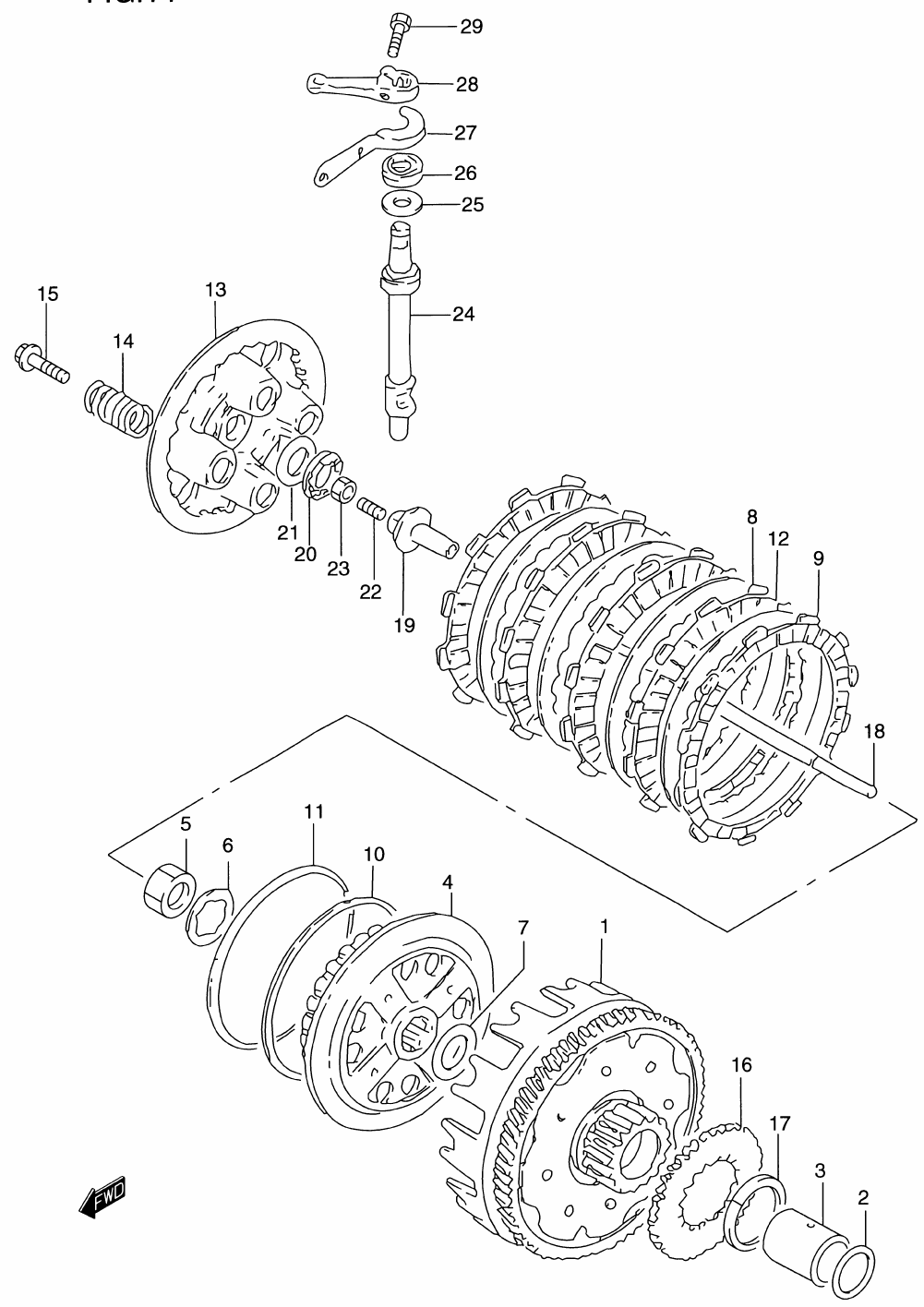

CLUTCH для Suzuki GZ-250 Y - 2000 года выпуска
-
№АртикулНазвание
-
121200-38201 GEAR ASSY. PRIMARY DRIVEN (NT:68/16)GEAR ASSY. PRIMARY DRIVEN (NT:68/16)
-
208211-22363 THRUST WASHERTHRUST WASHER
-
309180-22024 SPACER (22X28X37.5)SPACER (22X28X37.5)
-
4-221411-38201 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
509140-22005 NUTNUT
-
609167-22010 LOCK WASHERLOCK WASHER
-
708211-22363 THRUST WASHERTHRUST WASHER
-
821441-37430 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
921442-37401 PLATE, CLUTCH DRIVE (T:3.5)PLATE, CLUTCH DRIVE (T:3.5)
-
1021471-37400 SEAT, WAVE WASHER (T:1.4)SEAT, WAVE WASHER (T:1.4)
-
1109164-00004 WASHER (110.5X119X0.90)WASHER (110.5X119X0.90)
-
1221451-14A00 PLATE, CLUTCH DRIVEN (T:1.6)PLATE, CLUTCH DRIVEN (T:1.6)
-
1321462-27A00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1421413-13F00 SPRING, CLUTCHSPRING, CLUTCH
-
1509116-06168 BOLT (6X16)BOLT (6X16)
-
1616321-38200 GEAR, ENGINE OIL PUMP DRIVE (NT:38)GEAR, ENGINE OIL PUMP DRIVE (NT:38)
-
1709380-50001 CIRCLIPCIRCLIP
-
1823110-38201 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1923121-38201 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2009263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2109160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2209134-06010 SCREWSCREW
-
2309140-06023 NUTNUT
-
2423122-38200 CAM SHAFT, CLUTCH RELEASECAM SHAFT, CLUTCH RELEASE
-
2509160-14054 WASHER (14.5X22X1.0)WASHER (14.5X22X1.0)
-
2609285-12002 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2723117-38200 PLATE, OIL SEALPLATE, OIL SEAL
-
2823271-49100 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2901500-06207 BOLTBOLT
