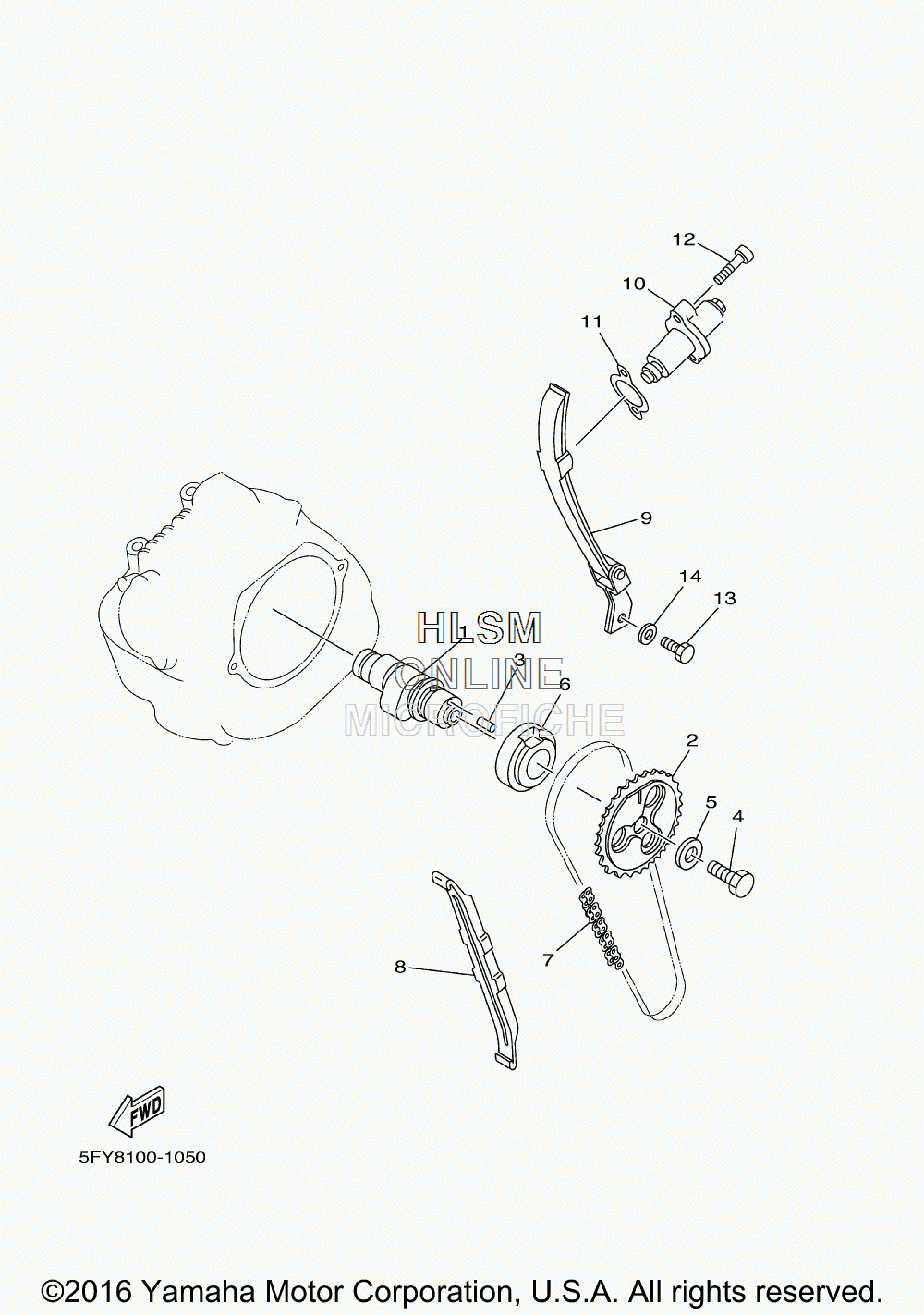

CAMSHAFT W/ CHAIN для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
136X-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
21KH-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
393604-10011-00 PIN, DOWELPIN, DOWEL
-
490101-10303-00 BOLTBOLT
-
590201-10591-00 WASHER, PLATEWASHER, PLATE
-
690387-255F3-00 COLLARCOLLAR
-
794580-41104-00 CHAIN (DID25SH 104L)CHAIN (DID25SH 104L)
-
85H0-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
95N0-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
103GC-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
114FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1291317-06025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1397027-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
