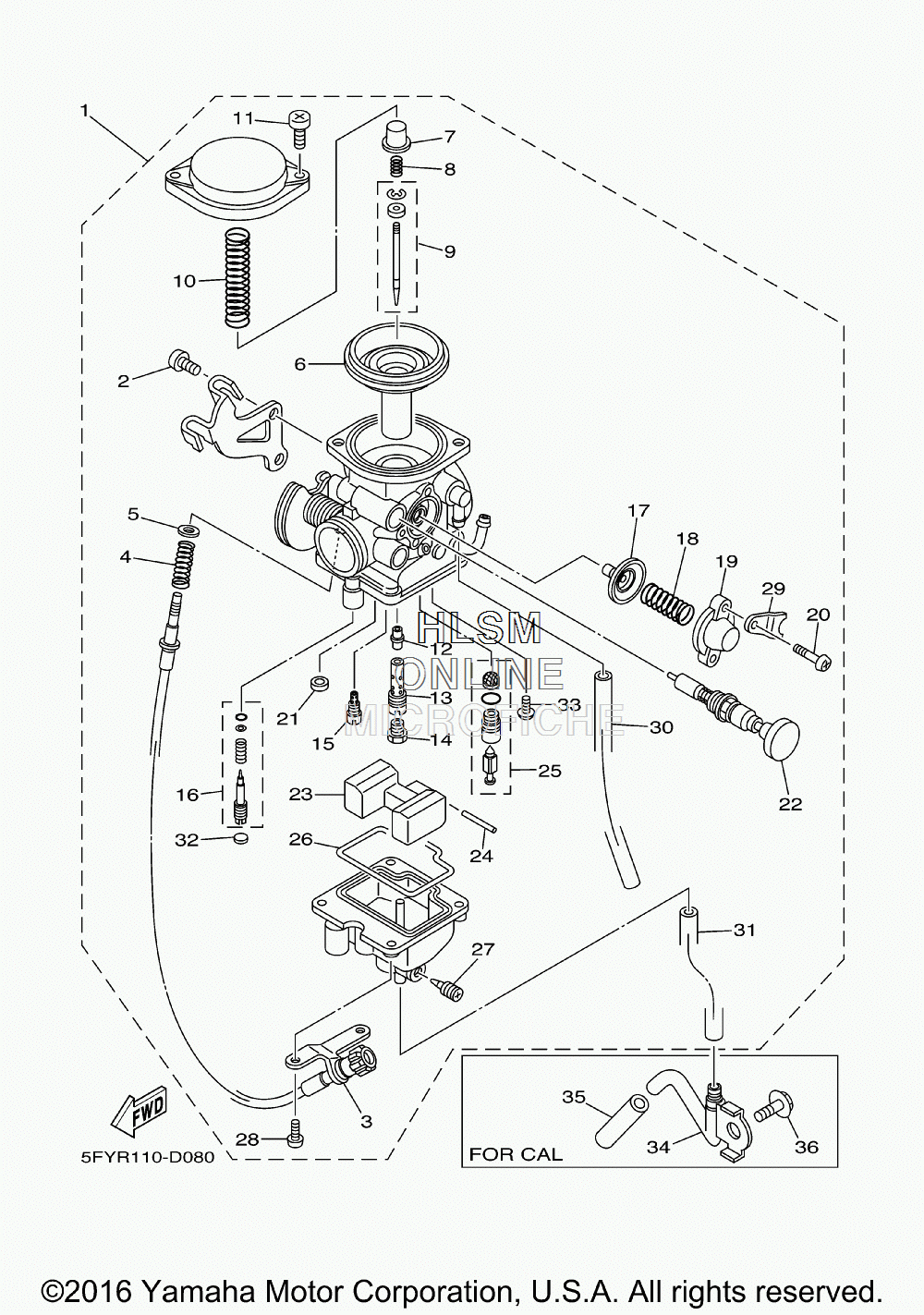

CARBURETOR для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15FY-14301-10-00 CARBURETOR ASSY 1 (EXCEPT CALIF)CARBURETOR ASSY 1 (EXCEPT CALIF)
-
15FY-14301-00-00 CARBURETOR ASSY 1 (CALIF ONLY)CARBURETOR ASSY 1 (CALIF ONLY)
-
297801-05010-00 ...THROTTLE SCREW...THROTTLE SCREW
-
35LB-14321-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
42JX-14333-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
55LB-14357-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
65LB-1434A-00-00 ...SUCTION PISTON ASSY...SUCTION PISTON ASSY
-
75LB-14936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
85LB-14275-00-00 ...SPRING...SPRING
-
95FY-14336-00-00 ...NEEDLE...NEEDLE
-
105LB-14286-00-00 ...SPRING...SPRING
-
115LB-14216-00-00 ...SCREW...SCREW
-
125LB-14341-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
135LB-14341-10-00 ...BLEED, MAIN NOZZLE...BLEED, MAIN NOZZLE
-
145FY-14343-63-00 ...JET, MAIN (#126)...JET, MAIN (#126)
-
155LB-14342-65-00 ...JET, PILOT (#31)...JET, PILOT (#31)
-
165LB-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
175LB-14368-00-00 ...DIAPHRAGM ASSY 1...DIAPHRAGM ASSY 1
-
185LB-14589-00-00 ...SPRING...SPRING
-
195LB-14293-00-00 ...COVER 1...COVER 1
-
20214-24535-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
2150M-14355-00-00 ...PLUG...PLUG
-
225FY-14371-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
235LB-14385-00-00 ...FLOAT...FLOAT
-
245LB-14386-00-00 ...PIN, FLOAT...PIN, FLOAT
-
255LB-14390-00-00 ...NEEDLE VALVE ASSY...NEEDLE VALVE ASSY
-
265LB-14384-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
274JP-14323-00-00 ...DRAIN, SCRE...DRAIN, SCRE
-
285LB-14592-00-00 ...SCREW...SCREW
-
295LB-14292-00-00 ...BRACKET 2...BRACKET 2
-
305FY-14197-00-00 ...PIPE...PIPE
-
315FY-14196-00-00 ...PIPE, OVER FLOW 1...PIPE, OVER FLOW 1
-
324KN-1432A-00-00 ...PLUG...PLUG
-
3398901-04006-00 ...SCREW, BIND...SCREW, BIND
-
342JX-14193-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
352JX-14148-01-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
3695807-08012-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
