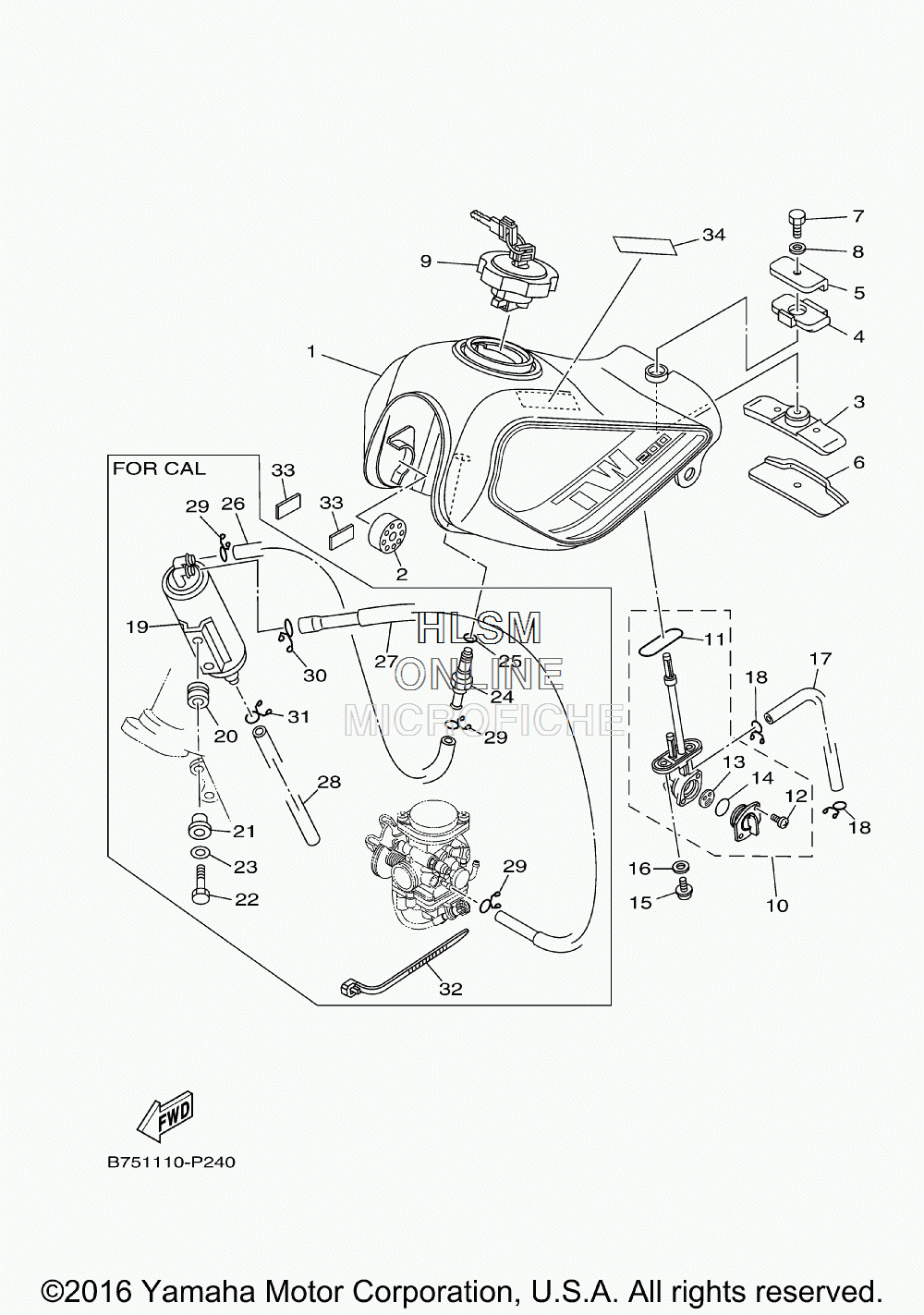

FUEL TANK для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
15RS-Y2410-10-W3 FUEL TANK COMP. (PMIB - MINERAL BLUE) (EXCEPT CALIF)FUEL TANK COMP. (PMIB - MINERAL BLUE) (EXCEPT CALIF)
-
15RS-Y2410-30-X4 FUEL TANK COMP. (PMIB - MINERAL BLUE) (CALIF ONLY)FUEL TANK COMP. (PMIB - MINERAL BLUE) (CALIF ONLY)
-
24L0-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
330X-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
430X-24183-01-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
530X-24186-01-00 WASHER, SPECIALWASHER, SPECIAL
-
630X-24187-00-00 WASHER, SPECIALWASHER, SPECIAL
-
797007-06012-00 BOLTBOLT
-
892907-06600-00 WASHER, PLATEWASHER, PLATE
-
911H-24602-10-00 CAP ASSY (EXCEPT CALIF)CAP ASSY (EXCEPT CALIF)
-
951K-24602-10-00 CAP ASSY (CALIF ONLY)CAP ASSY (CALIF ONLY)
-
1023F-24500-20-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
114X8-24512-10-00 ...GASKET...GASKET
-
1298507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
133AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
143AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
1590149-06011-00 SCREWSCREW
-
1690202-05193-00 WASHER, PLATEWASHER, PLATE
-
1790445-10041-00 HOSE (L110)HOSE (L110)
-
1890467-09006-00 CLIPCLIP
-
194BE-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
2090480-15342-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
2190387-063G3-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
2297007-06025-00 BOLT (CALIF ONLY)BOLT (CALIF ONLY)
-
2392907-06600-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
2420K-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
2593210-10166-00 O-RING (CALIF ONLY)O-RING (CALIF ONLY)
-
2690445-10017-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2790445-10045-00 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
2890445-11M27-00 HOSE (L240) (CALIF ONLY)HOSE (L240) (CALIF ONLY)
-
2990467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3090467-10008-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3190467-11106-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
3290464-13073-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
332JX-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
341TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
