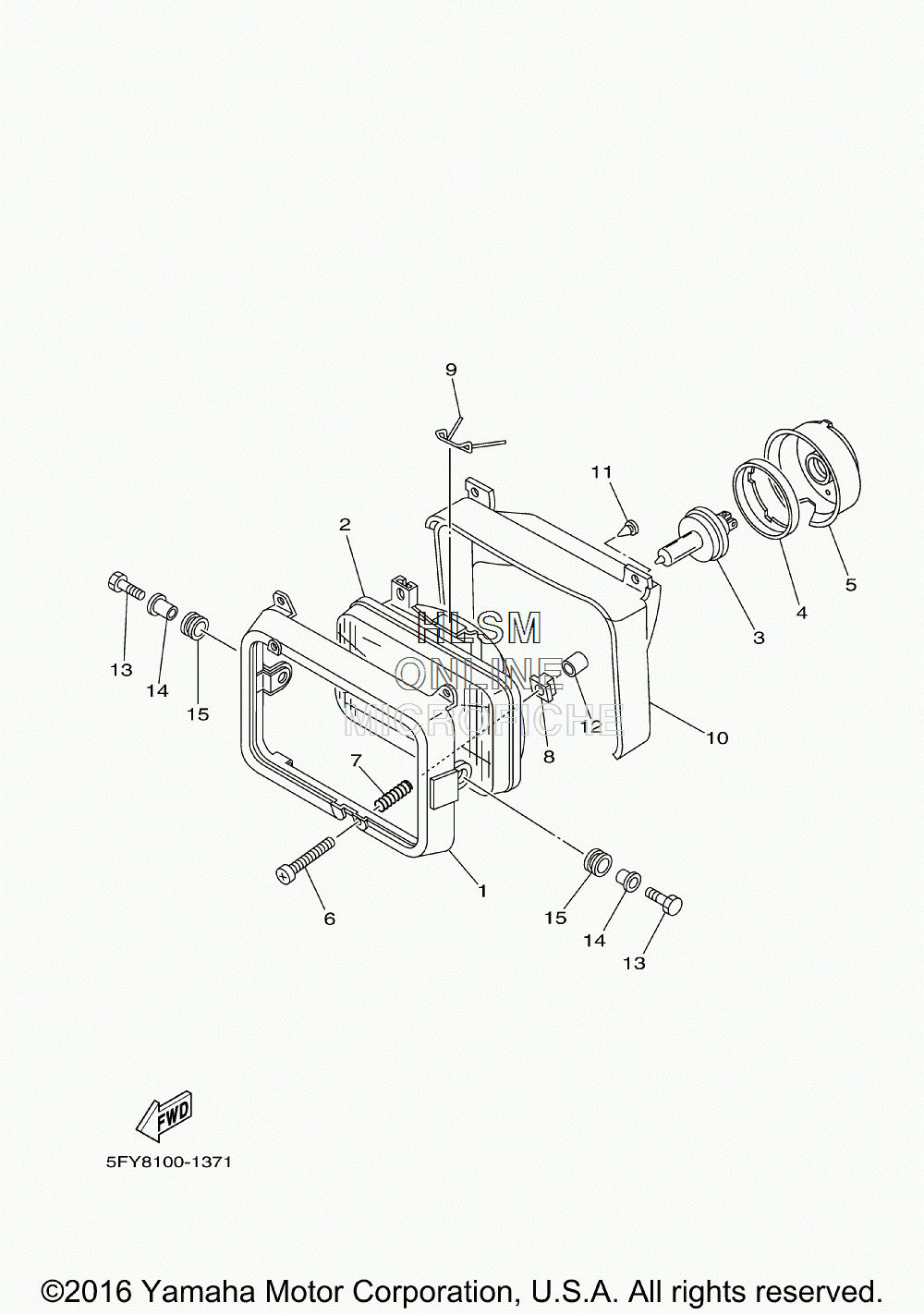

HEADLIGHT для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
147J-84115-00-00 RIM, HEADLIGHTRIM, HEADLIGHT
-
25FY-84320-00-00 LENS ASSYLENS ASSY
-
32F9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
42F9-84375-00-00 SETTING PLATE, BULBSETTING PLATE, BULB
-
52F9-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
643F-84131-00-00 SCREW, RIM ADJUSTERSCREW, RIM ADJUSTER
-
75G2-84332-60-00 SPRING, SCREWSPRING, SCREW
-
8198-84334-60-00 NUT, ADJUSTINGNUT, ADJUSTING
-
95G2-84324-A0-00 SPRING, REFLECTORSPRING, REFLECTOR
-
1030X-84196-00-00 COVER, SOCKETCOVER, SOCKET
-
1110V-84198-00-00 CLIP, COVER FITTINGCLIP, COVER FITTING
-
122RR-84178-00-00 PLUGPLUG
-
1397007-06025-00 BOLTBOLT
-
1490387-063E6-00 COLLARCOLLAR
-
1590480-14023-00 GROMMETGROMMET
