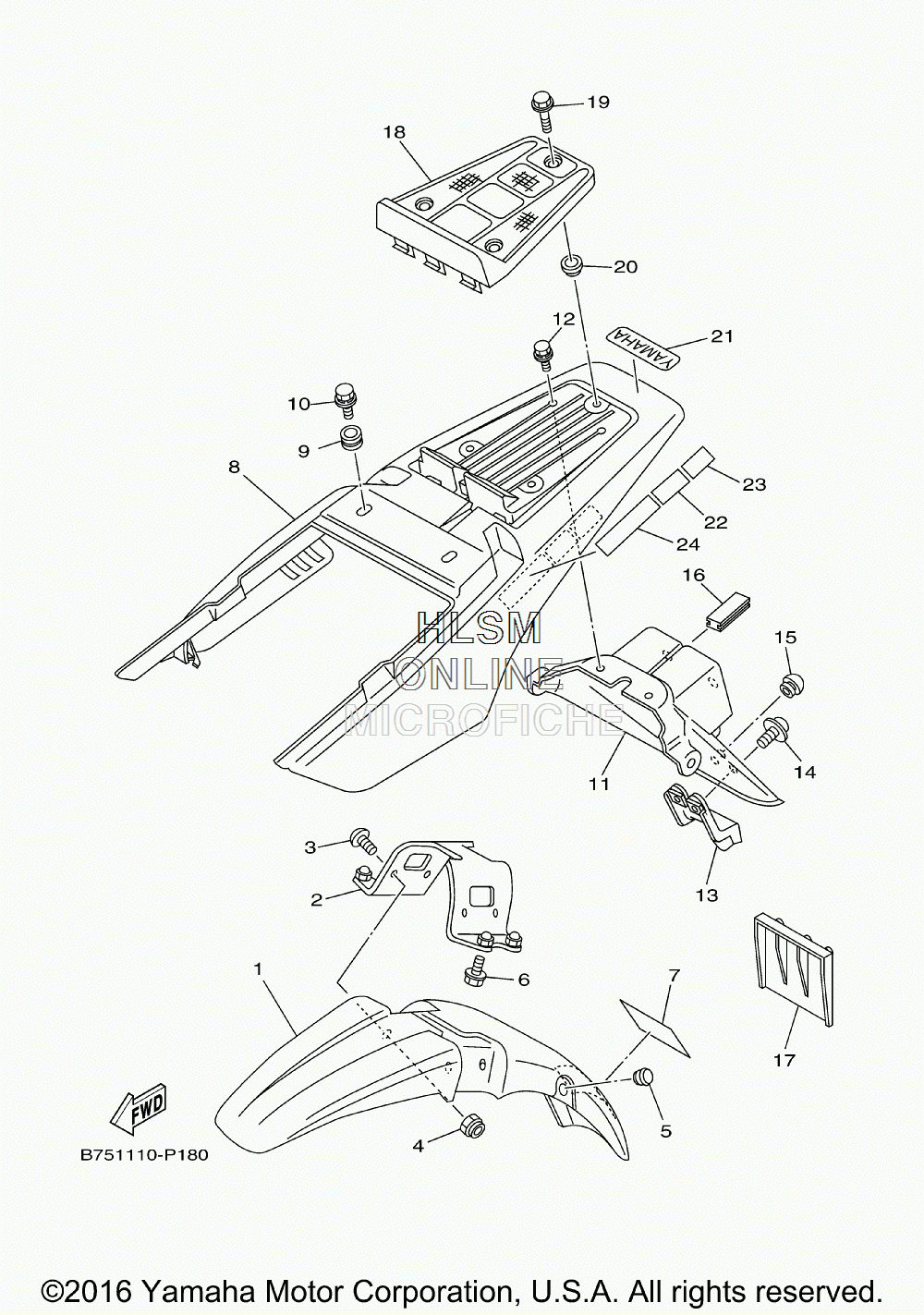

FENDER - FRONT / REAR для Yamaha TW200 - 2017 года выпуска
-
№АртикулНазвание
-
13AW-21511-A0-00 FENDER, FRONTFENDER, FRONT
-
22JX-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
390154-05004-00 SCREW, BINDINGSCREW, BINDING
-
495607-05200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
590338-12192-00 PLUGPLUG
-
695807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
710D-21668-00-00 LABEL, TIRELABEL, TIRE
-
83AW-21611-20-00 FENDER, REARFENDER, REAR
-
990480-12053-00 GROMMETGROMMET
-
1090119-06201-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
112JX-21685-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
132JX-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1490159-05028-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
154G0-21639-00-00 DAMPER 2DAMPER 2
-
162JX-21669-00-00 SEALSEAL
-
175VC-21691-00-00 FLAPFLAP
-
182JX-21651-10-00 COVER, REAR FENDERCOVER, REAR FENDER
-
1995024-06014-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
2090387-06681-00 COLLARCOLLAR
-
2199244-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
223MX-24875-A0-00 LABEL 1 (ENGLISH)LABEL 1 (ENGLISH)
-
233TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
243JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
